Chase Edge BMX Bike Cr-Mo Fork 2027 | Black / Dark Grey
The all-new CHASE Edge is a race-ready BMX bike, ideal for riders looking to get serious and take their riding to the next level.
Already considered a refined machine, the new Edge has been further improved: It now features Shimano hydraulic disc brakes (on Junior sizes and up; mechanical for Micro and Mini), all-new 2-piece aluminum Chase cranksets with a 24mm spindle (Expert XL and up), optimized gear ratios and crank arm lengths, a two-tone paint job with fresh graphics, and enclosed dropouts with an integrated chain tensioning system. The Edge frame is constructed from triple-butted, hydroformed 6061 aluminum tubing and features an integrated head tube. Other highlights include double-wall rims, a cassette rear hub with a triple-pawl engagement system, and Vee Rubber Speedster tires.
Geometry:
| Sizes | TT | CS min | LR | HA | SA | HT | SPL | BBH | WB | Wheels |
| Micro | 16.25″ 412.75 mm |
10.85″ 275.6 mm |
1.8″ 46 mm |
71° | 69° | 4″ 100 mm |
8″ 203.5 mm |
10.25″ 254 mm |
732 mm | 18×1″ |
| Mini | 17.25″ 438.15 mm |
12.25″ 312 mm |
1.8″ 46 mm |
72° | 70° | 4.33″ 110 mm |
8.8″ 225 mm |
10.6″ 269.2 mm |
800 mm | 20×1-1/8″ |
| Junior | 18.75″ 476.25 mm |
12.5″ 317.5 mm |
1.8″ 46 mm |
73° | 72° | 4.33″ 110 mm |
8.8″ 225 mm |
10.6″ 269.2 mm |
859.9 mm | 20×1-1/8″ |
| Expert | 19.75″ 501.65 mm |
13″ 330.2 mm |
1.8″ 46 mm |
73° | 72° | 4.33″ 110 mm |
8.8″ 225 mm |
11″ 279.4 mm |
883.8 mm | 20×1-3/8″ |
| Expert XL | 20″ 508 mm |
13.5″ 353 mm |
1.8″ 46 mm |
73° | 72° | 4.7″ 120 mm |
8.8″ 225 mm |
11.5″ 292.1 mm |
903 mm | 20×1.50″ |
| Pro | 20.5″ 520.7 mm |
14″ 355.6 mm |
1.8″ 46 mm |
74° | 72° | 4.7″ 120 mm |
9.4″ 238 mm |
11″ 279.4 mm |
938 mm | 20×1.75″ |
| Pro XL | 21″ 533.4 mm |
14.15″ 359.4 mm |
1.8″ 46 mm |
74° | 72° | 4.7″ 120 mm |
9.3″ 238 mm |
11.5″ 292.1 mm |
945.2 mm | 20×1.75″ |
| Pro XXL | 21.5″ 546.1 mm |
14.15″ 359.4 mm |
1.8″ 46 mm |
74° | 72° | 4.7″ 120 mm |
9.3″ 238 mm |
11.5″ 292.1 mm |
969.5 mm | 20×1.75″ |

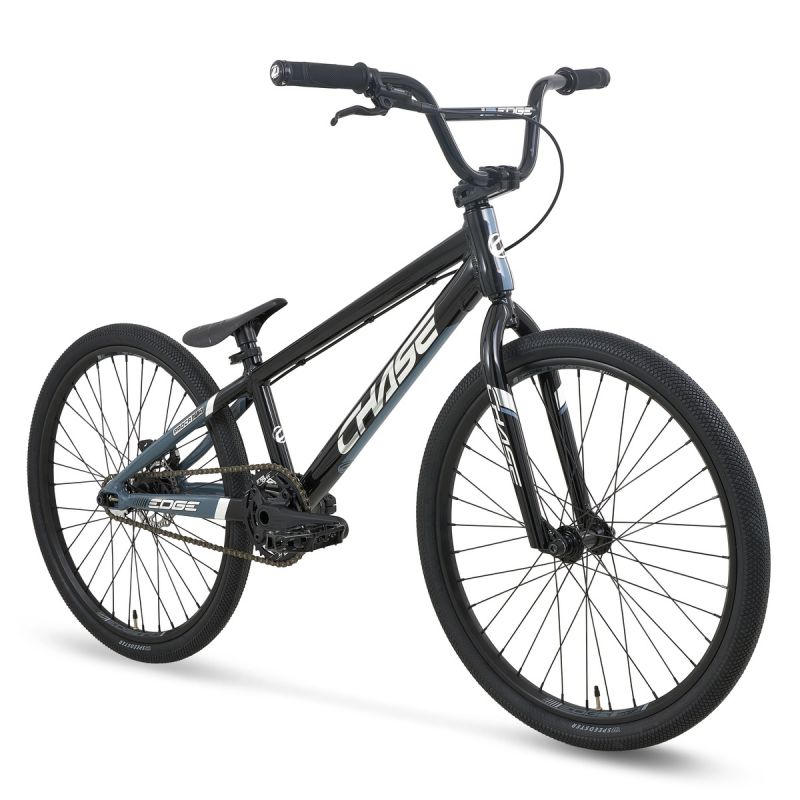

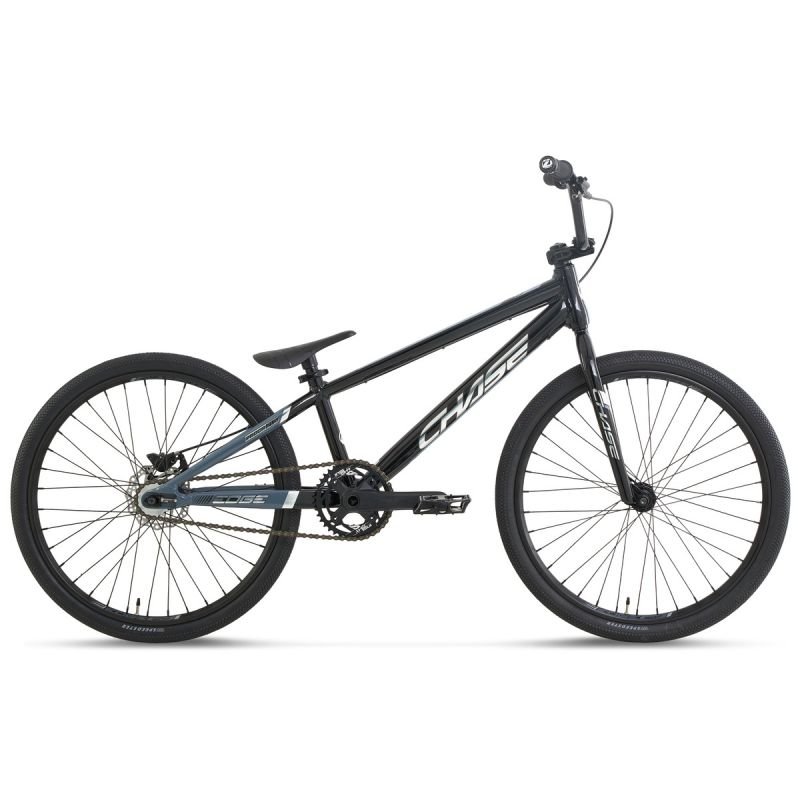

| Cruiser | 21.5″ 546.1 mm |
14.5″ 368.3 mm |
1.8″ 46 mm |
74° | 71° | 4.7″ 120 mm |
10.6″ 270 mm |
12″ 304.8 mm |
964.5 mm | 24×1.75″ |
Complete bike specifications are subject to change throughout the year due to part upgrades or shortages and modifications made throughout Chase’s production cycle to improve the quality of complete bikes. Photo and list specifications may slightly differ because of this.
Specifications per size:
| SPECIFICATIONS Micro: | |
|
FRAME
|
Chase Edge Micro 16.25″ NEW Top Tube 6061 T6 Alloy, Closed Drop Out, Integrated Head Tube, 1″, Water Decals |
|
FORK
|
Chase Edge Full Cr-mo, 1″ Steer Tube With Tapered Blades |
|
HEADSET
|
Integrated IS 42/42 Reductor 1″, Sealed Bearing |
|
HANDLEBAR
|
Chase Edge Alloy 2.25″ Rise, 20″ Wide, 8° Back Sweep & 2° Up Sweep |
|
GRIPS
|
Insight C.O.G.S 115mm Alloy Clamps Laser Etched Logo, PVC End Plug |
|
STEM
|
Chase Edge 1″ Steer Tube, Diameter 22.2mm, Length 40mm, 6061 T6 Alloy |
|
BOTTOM BRACKET
|
Euro Square 113mm Sealed Bearing |
|
CHAINRING
|
Insight 36 Tooth 5 Bolt 110mm 1/2″x3/32″ 3mm Alloy Ring |
|
CRANK
|
Chase Edge 3 Piece Crank 130mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts |
|
PEDALS
|
Mini Platform 9/16″ Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing |
|
CHAIN
|
KMC Z1 Narrow 1/2″x3/32″ |
|
COG
|
16 Tooth |
|
FRONT HUB
|
28H, Sealed Bearing, 3/8″ Bolts |
|
REAR HUB
|
ISO 28H, Sealed Bearing, 3/8″ Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
|
SPOKES
|
14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Brass |
|
FRONT RIM
|
Chase Edge Alloy 400 Double Wall 28H 18″x1″ Presta Valve |
|
REAR RIM
|
Chase Edge Alloy 400 Double Wall 28H 18″x1″ Presta Valve |
|
FRONT TIRE
|
Vee Rubber Speedster 18″x1″ Wire Bead |
|
REAR TIRE
|
Vee Rubber Speedster 18″x1″ Wire Bead |
|
TUBES
|
18”x1″ Presta Valve |

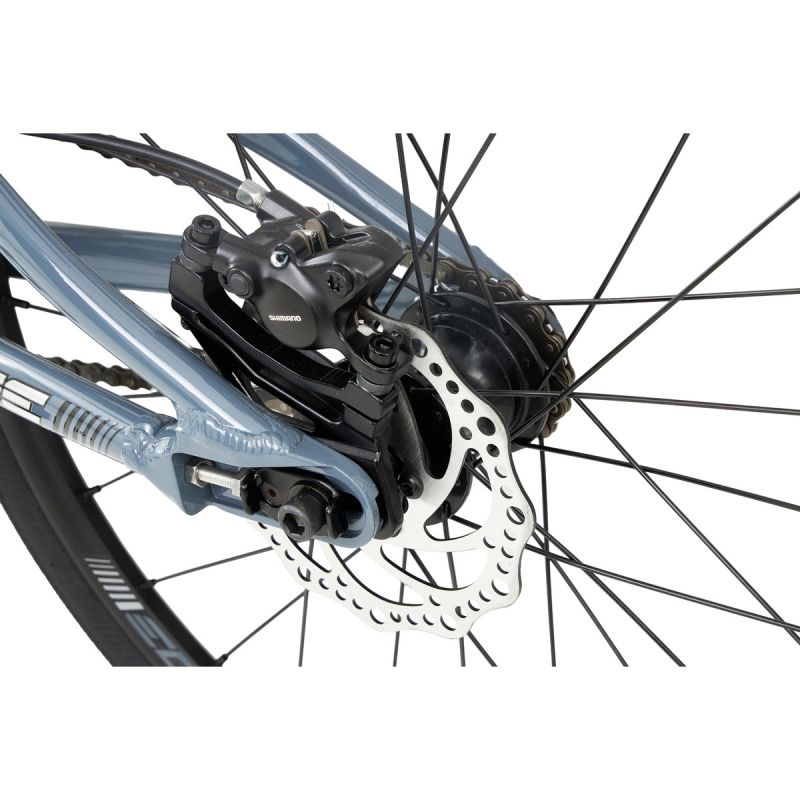

| BRAKING | Lever Alloy Micro/Mini, Adaptor 140mm Setup, With Mechamical Disc Brake Caliper And 140mm Rotor |

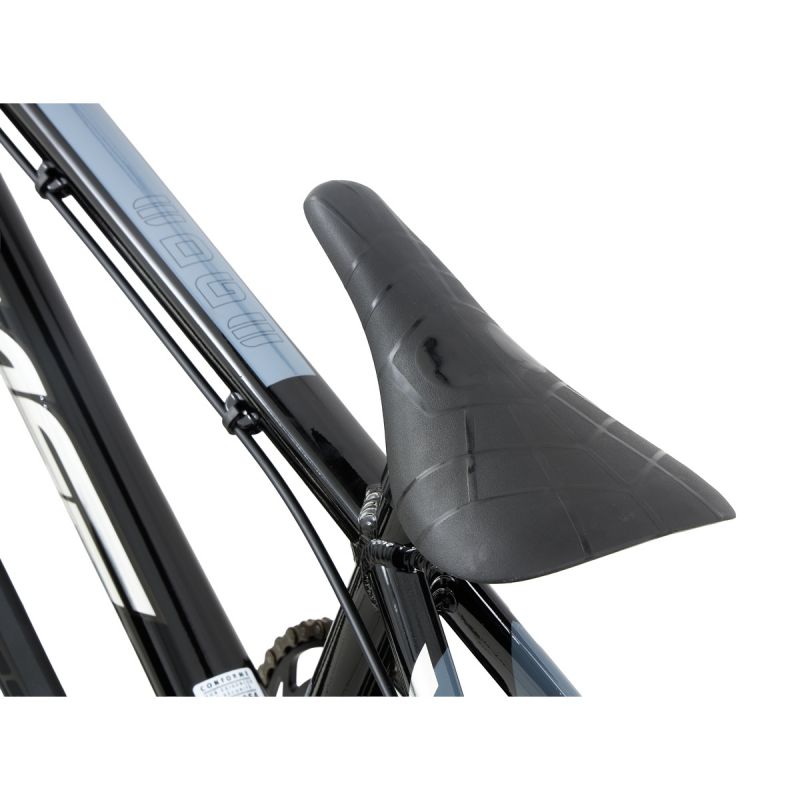

| SEAT | Mini Combo Alloy Post/Nylon Seat |
| SEAT POST | Mini Combo Alloy 25.4mm |
| SEAT POST CLAMP | Chase Edge QR Alloy 28.6mm |
| TENSIONER | Integrated Built-In With New Lock Disc Adaptor |

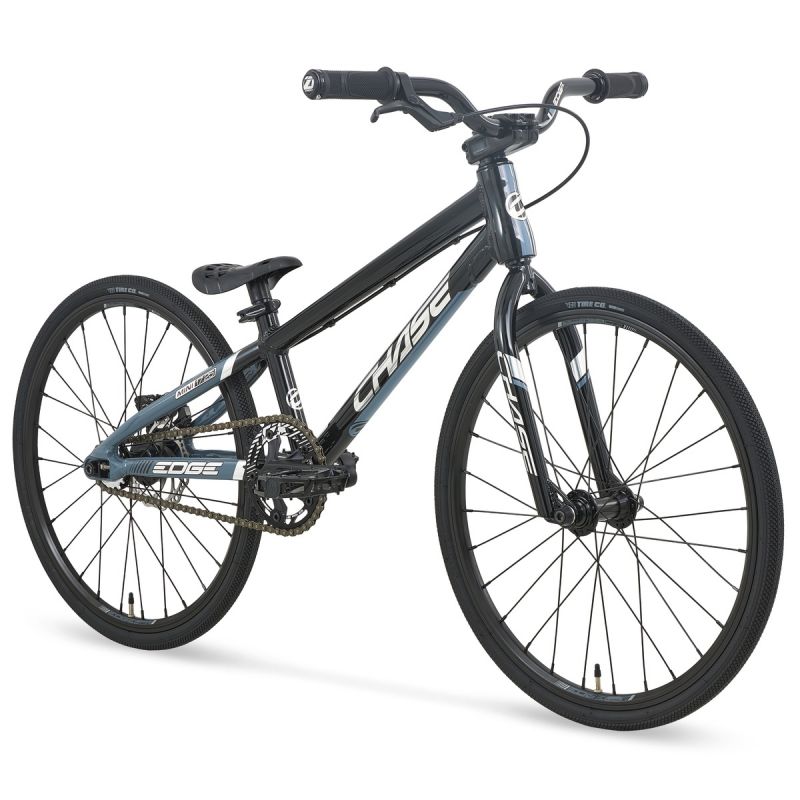

| SPECIFICATIONS Mini: | |
|
FRAME
|
Chase Edge Mini 17.25″ NEW Top Tube 6061 T6 Alloy, Closed Drop Out, Integrated Head Tube, 1″, Water Decals |
|
FORK
|
Chase Edge Full Cr-mo, 1″ Steer Tube With Tapered Blades |
|
HEADSET
|
Integrated IS 42/42 Reductor 1″, Sealed Bearing |
|
HANDLEBAR
|
Chase Edge Alloy 2.25″ Rise, 20″ Wide, 8° Back Sweep & 2° Up Sweep |
|
GRIPS
|
Insight C.O.G.S 115mm Alloy Clamps Laser Etched Logo, PVC End Plug |
|
STEM
|
Chase Edge 1″ Steer Tube, Diameter 22.2mm, Length 40mm, 6061 T6 Alloy |
|
BOTTOM BRACKET
|
Euro Square 113mm Sealed Bearing |
|
CHAINRING
|
Insight 36 Tooth 5 Bolt 110mm 1/2″x3/32″ 3mm Alloy Ring |
|
CRANK
|
Chase Edge 3 Piece Crank 140mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts |
|
PEDALS
|
Mini Platform 9/16″ Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing |
|
CHAIN
|
KMC Z1 Narrow 1/2″x3/32″ |
|
COG
|
16 Tooth |
|
FRONT HUB
|
28H, Sealed Bearing, 3/8″ Bolts |
|
REAR HUB
|
ISO 28H, Sealed Bearing, 3/8″ Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
|
SPOKES
|
14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Brass |
|
FRONT RIM
|
Chase Edge Alloy 451 Double Wall 24H 20″x1-1/8″ Presta Valve |
|
REAR RIM
|
Chase Edge Alloy 451 Double Wall 24H 20″x1-1/8″ Presta Valve |
|
FRONT TIRE
|
Vee Rubber SpeedSter 20″x1-1/8″ Wire Bead |
|
REAR TIRE
|
Vee Rubber SpeedSter 20″x1-1/8″ Wire Bead |
|
TUBES
|
20”x1-1/8″ Presta Valve |
| BRAKING | Alloy Micro/Mini Lever, Adaptor 140mm Setup, With Mechamical Disc Brake Caliper And 140mm Rotor |
| SEAT | Mini Combo Alloy Post/Nylon Seat |
| SEAT POST | Mini Combo Alloy 25.4mm |
| SEAT POST CLAMP | Chase Edge QR Alloy 28.6mm |
| TENSIONER | Integrated Built-In With New Lock Disc Adaptor |

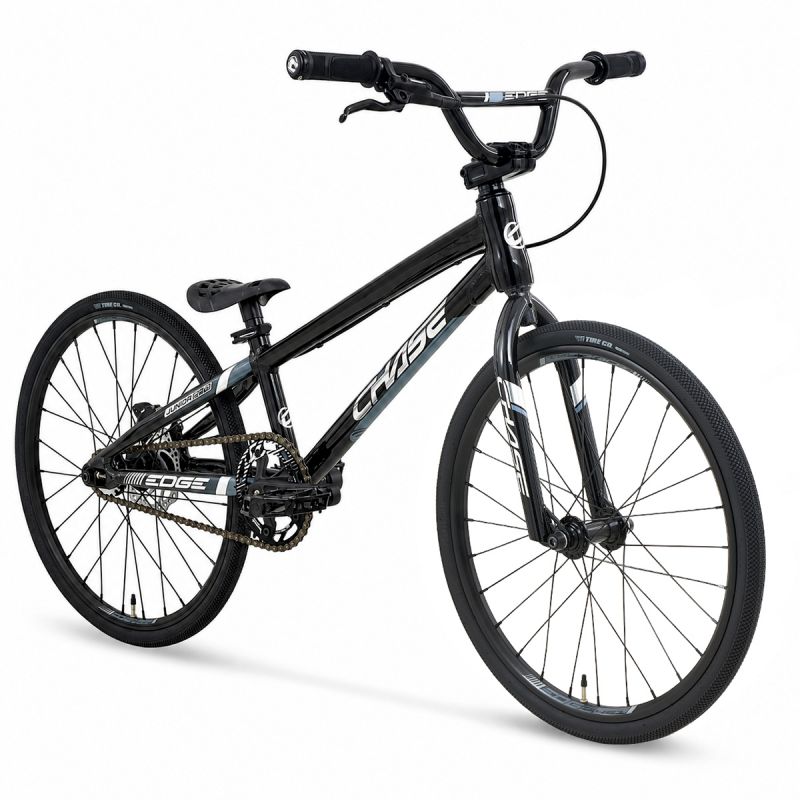

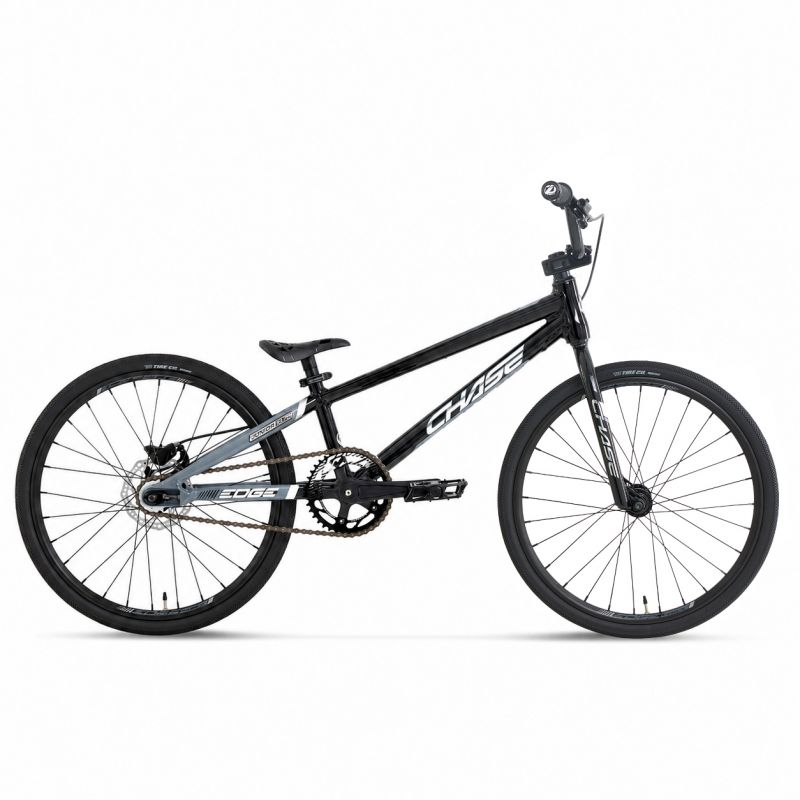

| SPECIFICATIONS Junior: | |
|
FRAME
|
Chase Edge Junior 18.75″ NEW Top Tube 6061 T6 Alloy, Closed Drop Out, Integrated Head Tube, 1″, Water Decals |
|
FORK
|
Chase Edge Full Cr-mo, 1″ Steer Tube With Tapered Blades |
|
HEADSET
|
Integrated IS 42/42 Reductor 1″, Sealed Bearing |
|
HANDLEBAR
|
Chase Edge Alloy 4.25″ Rise, 24″ Wide, 8° Back Sweep & 2° Up Sweep |
|
GRIPS
|
Insight C.O.G.S 115mm Alloy Clamps Laser Etched Logo, PVC End Plug |
|
STEM
|
Chase Edge 1″ Steer Tube, Diameter 22.2mm, Length 40mm, 6061 T6 Alloy |
|
BOTTOM BRACKET
|
Euro Square 113mm Sealed Bearing |
|
CHAINRING
|
Insight 37 Tooth 5 Bolt 110mm 1/2″x3/32″ 3mm Alloy Ring |
|
CRANK
|
Chase Edge 3 Piece Crank 145mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts |
|
PEDALS
|
Mini Platform 9/16″ Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing |
|
CHAIN
|
KMC Z1 Narrow 1/2″x3/32″ |
|
COG
|
16 Tooth |
|
FRONT HUB
|
28H, Sealed Bearing, 3/8″ Bolts |
|
REAR HUB
|
ISO 28H, Sealed Bearing, 3/8″ Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
|
SPOKES
|
14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Brass |
|
FRONT RIM
|
Chase Edge Alloy 451 Double Wall 28H 20″x1-1/8″ Presta Valve |
|
REAR RIM
|
Chase Edge Alloy 451 Double Wall 28H 20″x1-1/8″ Presta Valve |
|
FRONT TIRE
|
Vee Rubber SpeedSter 20″x1-1/8″ Wire Bead |
|
REAR TIRE
|
Vee Rubber SpeedSter 20″x1-1/8″ Wire Bead |
|
TUBES
|
20”x1-1/8″ Presta Valve |
| BRAKING | Shimano Disc Brake BL-MT200(R) Hydraulic Lever, Adaptor 140mm Setup, With Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads And 140mm Rotor |
| SEAT | Mini Combo Alloy Post/Nylon Seat |
| SEAT POST | Mini Combo Alloy 25.4mm |
| SEAT POST CLAMP | Chase Edge QR Alloy 28.6mm |
| TENSIONER | Integrated Built-In With New Lock Disc Adaptor |
| SPECIFICATIONS Expert: | |
|
FRAME
|
Chase Edge Expert 19.75″ NEW Top Tube 6061 T6 Alloy, Closed Drop Out, Integrated Head Tube, 1-1/8″, Water Decals |
|
FORK
|
Chase Edge Full Cr-mo, 1-1/8″ Steer Tube With Tapered Blades |
|
HEADSET
|
Integrated IS 42/42 1-1/8″, Sealed Bearing |
|
HANDLEBAR
|
Chase Edge Alu 5.75″ Rise, 25.5″ Wide, 8° Back Sweep & 2° Up Sweep |
|
GRIPS
|
Insight C.O.G.S 130mm Alloy Clamps Laser Etched Logo, PVC End Plug |
|
STEM
|
Chase Edge 1-1/8″ Steer Tube, Diameter 22.2mm, Length 50mm, 6061 T6 Alloy |
|
BOTTOM BRACKET
|
Euro Square 113mm Sealed Bearing |
|
CHAINRING
|
Insight 39 Tooth 5 Bolt 110mm 1/2″x3/32″ 3mm Alloy Ring |
|
CRANK
|
Chase Edge 3 Piece Crank 155mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts |
|
PEDALS
|
Pro Platform 9/16″ Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing |
|
CHAIN
|
KMC Z1 Narrow 1/2″x3/32″ |
|
COG
|
16 Tooth |
|
FRONT HUB
|
28H, Sealed Bearing, 3/8″ Bolts |
|
REAR HUB
|
ISO 28H, Sealed Bearing, 3/8″ Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
|
SPOKES
|
14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Brass |
|
FRONT RIM
|
Chase Edge Alloy 451 Double Wall 28H 20″x1-3/8″ Presta Valve |
|
REAR RIM
|
Chase Edge Alloy 451 Double Wall 28H 20″x1-3/8″ Presta Valve |
|
FRONT TIRE
|
Vee Rubber SpeedSter 20″x1-3/8″ Wire Bead |
|
REAR TIRE
|
Vee Rubber SpeedSter 20″x1-3/8″ Wire Bead |
|
TUBES
|
20”x1-3/8″ Presta Valve |
| BRAKING | Lever Shimano Disc Brake BL-MT200(R) Hydraulic, Adaptor 140mm Setup, With Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads And 140mm Rotor |
| SEAT | Mini Combo Alloy Post/Nylon Seat |
| SEAT POST | Mini Combo Alloy 25.4mm |
| SEAT POST CLAMP | Chase Edge QR Alloy 28.6mm |
| TENSIONER | Integrated Built-In With New Lock Disc Adaptor |
| SPECIFICATIONS Expert XL: | |
|
FRAME
|
Chase Edge Expert XL 20″ NEW Top Tube 6061 T6 Alloy, Closed Drop Out, Integrated Head Tube, 1-1/8″, Water Decals |
|
FORK
|
Chase Edge Full Cr-mo, 1-1/8″ Steer Tube With Tapered Blades |
|
HEADSET
|
Integrated IS 42/42 1-1/8″, Sealed Bearing |
|
HANDLEBAR
|
Chase Edge Cr-mo 6.5″ Rise, 26″ Wide, 8° Back Sweep & 2° Up Sweep |
|
GRIPS
|
Insight C.O.G.S 130mm Alloy Clamps Laser Etched Logo, PVC End Plug |
|
STEM
|
Chase Edge 1-1/8″ Steer Tube, Diameter 22.2mm, Length 50mm, 6061 T6 Alloy |
|
BOTTOM BRACKET
|
Euro External BSA 24mm Sealed Bearing |
|
CHAINRING
|
Insight 39 Tooth 4 Bolt 104mm 1/2″x3/32″ 5mm Alloy Ring |
|
CRANK
|
Chase Edge 2 Pieces 24mm Axle Crank 160mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts |
|
PEDALS
|
Pro Platform 9/16″ Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing |
|
CHAIN
|
KMC Z1 Narrow 1/2″x3/32″ |
|
COG
|
16 Tooth |
|
FRONT HUB
|
36H, Sealed Bearing, 3/8″ Bolts |
|
REAR HUB
|
ISO 36H, Sealed Bearing, 3/8″ Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
|
SPOKES
|
14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Brass |
|
FRONT RIM
|
Chase Edge Alloy 406 Double Wall 36H 20″x1.50″ Presta Valve |
|
REAR RIM
|
Chase Edge Alloy 406 Double Wall 36H 20″x1.50″ Presta Valve |
|
FRONT TIRE
|
Vee Rubber SpeedSter 20″x1.60″ Wire Bead |
|
REAR TIRE
|
Vee Rubber SpeedSter 20″x1.50″ Wire Bead |
|
TUBES
|
20”x1.5″-1.75″ Presta Valve |
| BRAKING | Shimano Disc Brake BL-MT200(R) Hydraulic Lever, Adaptor 140mm Setup, With Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads And 140mm Rotor |
| SEAT | Expert/Pro Combo Alloy Post/Nylon Seat |
| SEAT POST | Expert/Pro Combo Alloy 27.2mm |
| SEAT POST CLAMP | Chase Edge QR Alloy 31.8mm |
| TENSIONER | Integrated Built-In With New Lock Disc Adaptor |

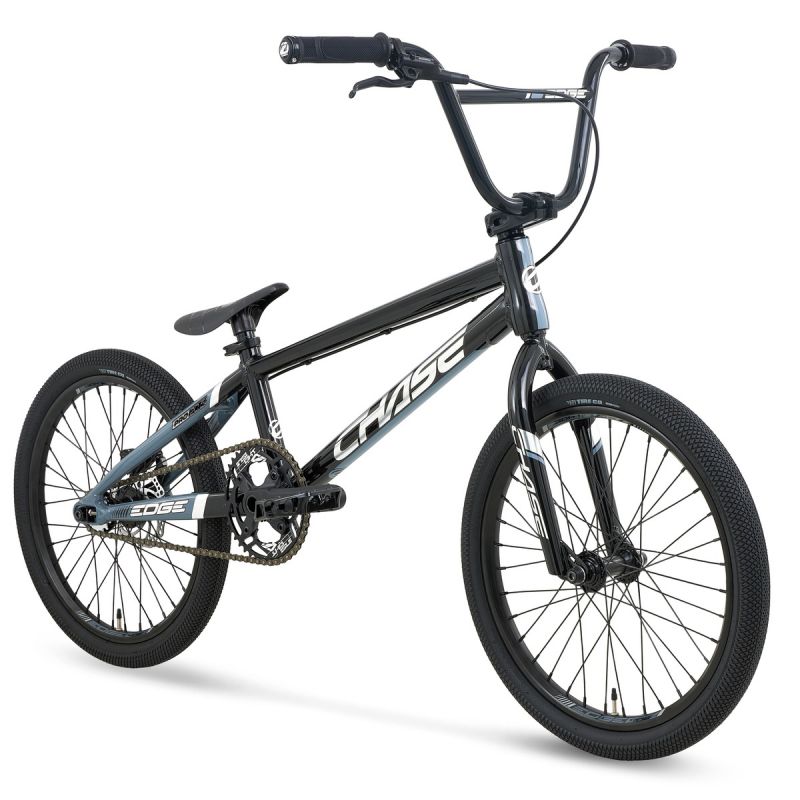

| SPECIFICATIONS Pro: | |
|
FRAME
|
Chase Edge Pro 20.5″ NEW Top Tube 6061 T6 Alloy, Closed Drop Out, Integrated Head Tube, 1-1/8″, Water Decals |
|
FORK
|
Chase Edge Full Cr-mo, 1-1/8″ Steer Tube With Tapered Blades |
|
HEADSET
|
Integrated IS 42/42 1-1/8″, Sealed Bearing |
|
HANDLEBAR
|
Chase Edge Cr-mo 7.5″ Rise, 27″ Wide, 11° Back Sweep & 3.5° Up Sweep |
|
GRIPS
|
Insight C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug |
|
STEM
|
Chase Edge 1-1/8″ Steer Tube, Diameter 22.2mm, Length 50mm, 6061 T6 Alloy |
|
BOTTOM BRACKET
|
Euro External BSA 24mm Sealed Bearing |
|
CHAINRING
|
Insight 42 Tooth 4 Bolt 104mm 1/2″x3/32″ 5mm Alloy Ring |
|
CRANK
|
Chase Edge 2 Pieces 24mm Axle Crank 170mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts |
|
PEDALS
|
Pro Platform 9/16″ Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing |
|
CHAIN
|
KMC Z1 Narrow 1/2″x3/32″ |
|
COG
|
16 Tooth |
|
FRONT HUB
|
36H, Sealed Bearing, 3/8″ Bolts |
|
REAR HUB
|
ISO 36H, Sealed Bearing, 3/8″ Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
|
SPOKES
|
14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Brass |
|
FRONT RIM
|
Chase Edge Alloy 406 Double Wall 36H 20″x1.50″ Presta Valve |
|
REAR RIM
|
Chase Edge Alloy 406 Double Wall 36H 20″x1.50″ Presta Valve |
|
FRONT TIRE
|
Vee Rubber SpeedSter 20″x1.60″ Wire Bead |
|
REAR TIRE
|
Vee Rubber SpeedSter 20″x1.50″ Wire Bead |
|
TUBES
|
20”x1.5″-1.75″ Presta Valve |
| BRAKING | Shimano Disc Brake BL-MT200(R) Hydraulic Lever, Adaptor 140mm Setup, With Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads And 140mm Rotor |
| SEAT | Expert/Pro Combo Alloy Post/Nylon Seat |
| SEAT POST | Expert/Pro Combo Alloy 27.2mm |
| SEAT POST CLAMP | Chase Edge QR Alloy 31.8mm |
| TENSIONER | Integrated Built-In With New Lock Disc Adaptor |
| SPECIFICATIONS Pro XL: | |
|
FRAME
|
Chase Edge Pro XL 21″ NEW Top Tube 6061 T6 Alloy, Closed Drop Out, Integrated Head Tube, 1-1/8″, Water Decals |
|
FORK
|
Chase Edge Full Cr-mo, 1-1/8″ Steer Tube With Tapered Blades |
|
HEADSET
|
Integrated IS 42/42 1-1/8″, Sealed Bearing |
|
HANDLEBAR
|
Chase Edge Cr-mo 8″ Rise, 28″ Wide, 12° Back Sweep & 1° Up Sweep |
|
GRIPS
|
Insight C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug |
|
STEM
|
Chase Edge 1-1/8″ Steer Tube, Diameter 22.2mm, Length 50mm, 6061 T6 Alloy |
|
BOTTOM BRACKET
|
Euro External BSA 24mm Sealed Bearing |
|
CHAINRING
|
Insight 43 Tooth 4 Bolt 104mm 1/2″x3/32″ 5mm Alloy Ring |
|
CRANK
|
Chase Edge 2 Pieces 24mm Axle Crank 175mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts |
|
PEDALS
|
Pro Platform 9/16″ Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing |
|
CHAIN
|
KMC Z1 Narrow 1/2″x3/32″ |
|
COG
|
16 Tooth |
|
FRONT HUB
|
36H, Sealed Bearing, 3/8″ Bolts |
|
REAR HUB
|
ISO 36H, Sealed Bearing, 3/8″ Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
|
SPOKES
|
14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Brass |
|
FRONT RIM
|
Chase Edge Alloy 406 Double Wall 36H 20″x1.50″ Presta Valve |
|
REAR RIM
|
Chase Edge Alloy 406 Double Wall 36H 20″x1.50″ Presta Valve |
|
FRONT TIRE
|
Vee Rubber SpeedSter 20″x1.75″ Wire Bead |
|
REAR TIRE
|
Vee Rubber SpeedSter 20″x1.60″ Wire Bead |
|
TUBES
|
20”x1.5″-1.75″ Presta Valve |

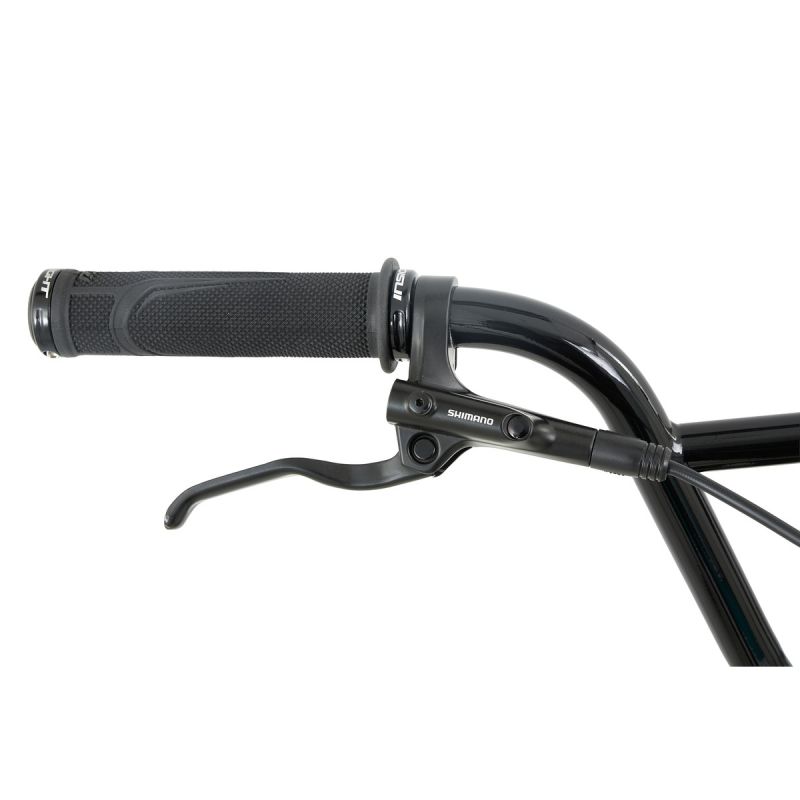

| BRAKING | Shimano Disc Brake BL-MT200(R) Hydraulic Lever, Adaptor 140mm Setup, With Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads And 140mm Rotor |
| SEAT | Expert/Pro Combo Alloy Post/Nylon Seat |
| SEAT POST | Expert/Pro Combo Alloy 27.2mm |
| SEAT POST CLAMP | Chase Edge QR Alloy 31.8mm |
| TENSIONER | Integrated Built-In With New Lock Disc Adaptor |
| SPECIFICATIONS Pro XXL: | |
|
FRAME
|
Chase Edge Pro XXL 21.5″ NEW Top Tube 6061 T6 Alloy, Closed Drop Out, Integrated Head Tube, 1-1/8″, Water Decals |
|
FORK
|
Chase Edge Full Cr-mo, 1-1/8″ Steer Tube With Tapered Blades |
|
HEADSET
|
Integrated IS 42/42 1-1/8″, Sealed Bearing |
|
HANDLEBAR
|
Chase Edge Cr-mo 8.5″ Rise, 29″ Wide, 12° Back Sweep & 1° Up Sweep |
|
GRIPS
|
Insight C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug |
|
STEM
|
Chase Edge 1-1/8″ Steer Tube, Diameter 22.2mm, Length 50mm, 6061 T6 Alloy |
|
BOTTOM BRACKET
|
Euro External BSA 24mm Sealed Bearing |
|
CHAINRING
|
Insight 43 Tooth 4 Bolt 104mm 1/2″x3/32″ 5mm Alloy Ring |
|
CRANK
|
Chase Edge 2 Pieces 24mm Axle Crank 175mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts |
|
PEDALS
|
Pro Platform 9/16″ Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing |
|
CHAIN
|
KMC Z1 Narrow 1/2″x3/32″ |
|
COG
|
16 Tooth |
|
FRONT HUB
|
36H, Sealed Bearing, 3/8″ Bolts |
|
REAR HUB
|
ISO 36H, Sealed Bearing, 3/8″ Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
|
SPOKES
|
14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Brass |
|
FRONT RIM
|
Chase Edge Alloy 406 Double Wall 36H 20″x1.50″ Presta Valve |
|
REAR RIM
|
Chase Edge Alloy 406 Double Wall 36H 20″x1.50″ Presta Valve |
|
FRONT TIRE
|
Vee Rubber SpeedSter 20″x1.75″ Wire Bead |
|
REAR TIRE
|
Vee Rubber SpeedSter 20″x1.60″ Wire Bead |
|
TUBES
|
20”x1.5″-1.75″ Presta Valve |
| BRAKING | Shimano Disc Brake BL-MT200(R) Hydraulic Lever, Adaptor 140mm Setup, With Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads And 140mm Rotor |
| SEAT | Expert/Pro Combo Alloy Post/Nylon Seat |
| SEAT POST | Expert/Pro Combo Alloy 27.2mm |
| SEAT POST CLAMP | Chase Edge QR Alloy 31.8mm |
| TENSIONER | Integrated Built-In With New Lock Disc Adaptor |
| SPECIFICATIONS Cruiser: | |
|
FRAME
|
Chase Edge Pro Cruiser 21.5″ NEW Top Tube 6061 T6 Alloy, Closed Drop Out, Integrated Head Tube, 1-1/8″, Water Decals |
|
FORK
|
Chase Edge Full Cr-mo, 1-1/8″ Steer Tube With Tapered Blades |
|
HEADSET
|
Integrated IS 42/42 1-1/8″, Sealed Bearing |
|
HANDLEBAR
|
Chase Edge Cr-mo 5.75″ Rise, 28.5″ Wide, 11° Back Sweep & 2.5° Up Sweep |
|
GRIPS
|
Insight C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug |
|
STEM
|
Chase Edge 1-1/8″ Steer Tube, Diameter 22.2mm, Length 50mm, 6061 T6 Alloy |
|
BOTTOM BRACKET
|
Euro External BSA 24mm Sealed Bearing |
|
CHAINRING
|
Insight 39 Tooth 4 Bolt 104mm 1/2″x3/32″ 5mm Alloy Ring |
|
CRANK
|
Chase Edge 2 Pieces 24mm Axle Crank 175mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts |
|
PEDALS
|
Pro Platform 9/16″ Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing |
|
CHAIN
|
KMC Z1 Narrow 1/2″x3/32″ |
|
COG
|
18 Tooth |
|
FRONT HUB
|
36H, Sealed Bearing, 3/8″ Bolts |
|
REAR HUB
|
ISO 36H, Sealed Bearing, 3/8″ Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
|
SPOKES
|
14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Brass |
|
FRONT RIM
|
Chase Edge Alloy 507 Double Wall 36H 24″x1.75″ Presta Valve |
|
REAR RIM
|
Chase Edge Alloy 507 Double Wall 36H 24″x1.75″ Presta Valve |
|
FRONT TIRE
|
Vee Rubber SpeedSter 24″x1.75″ Wire Bead |
|
REAR TIRE
|
Vee Rubber SpeedSter 24″x1.50″ Wire Bead |
|
TUBES
|
24”x1.5″-1.75″ Presta Valve |
| BRAKING | Lever Shimano Disc Brake BL-MT200(R) Hydraulic, Adaptor 140mm Setup, With Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads And 140mm Rotor |
| SEAT | Expert/Pro Combo Alloy Post/Nylon Seat |
| SEAT POST | Expert/Pro Combo Alloy 27.2mm |
| SEAT POST CLAMP | Chase Edge QR Alloy 31.8mm |
| TENSIONER | Integrated Built-In With New Lock Disc Adaptor |
