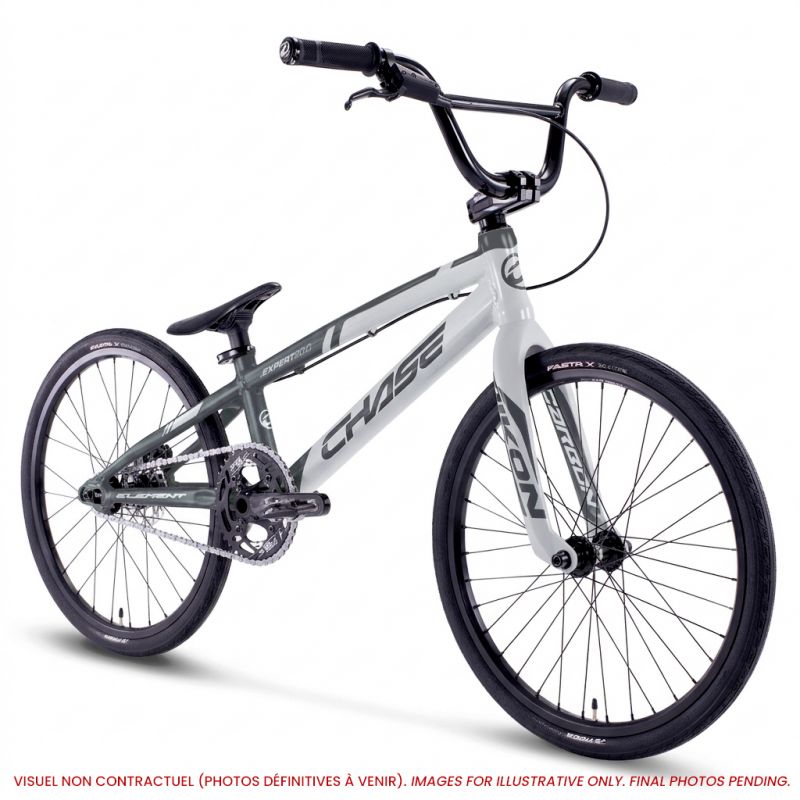

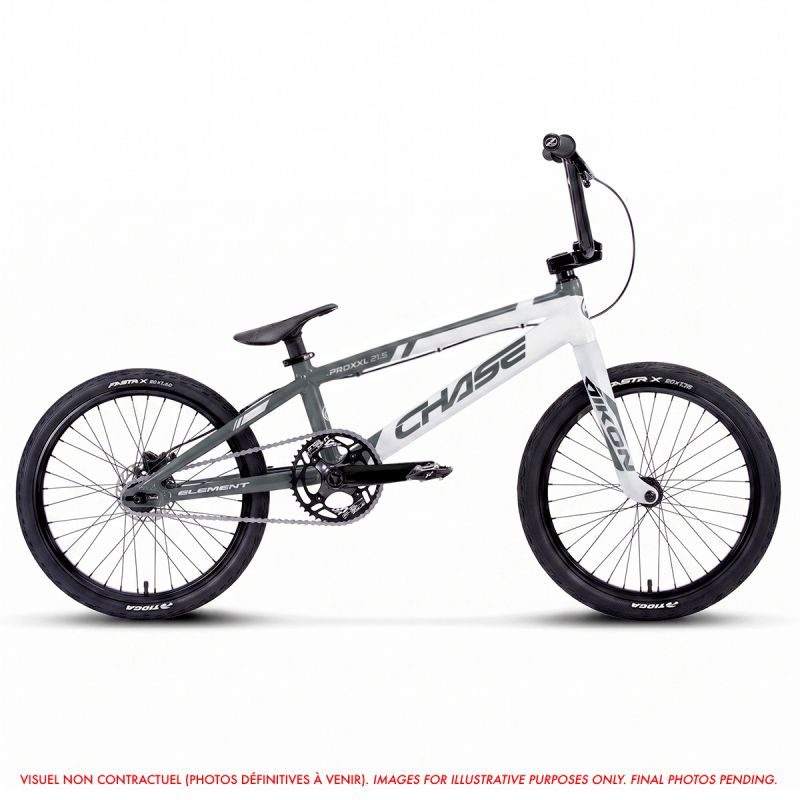

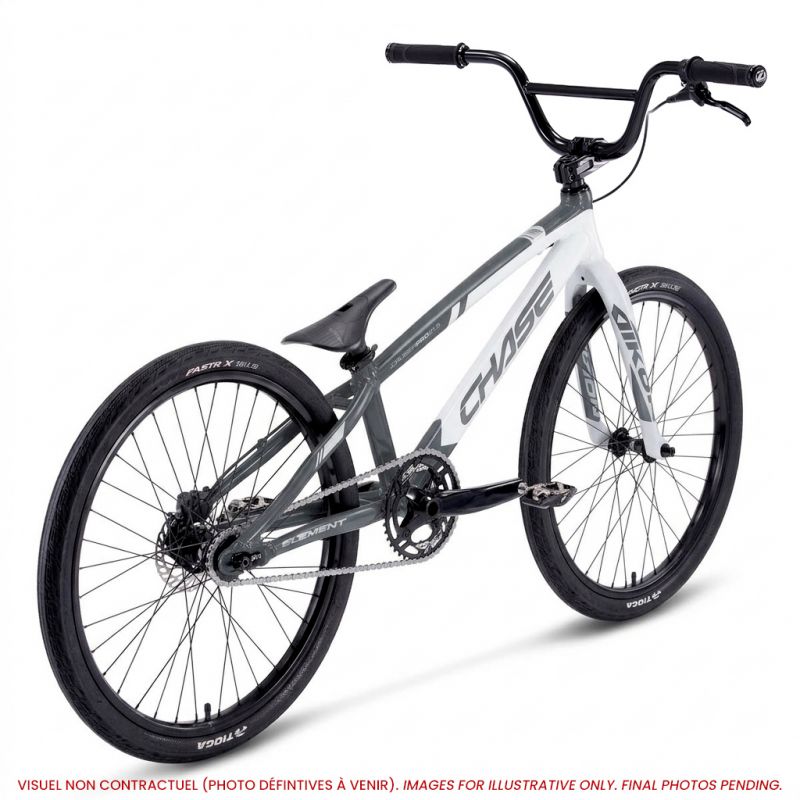

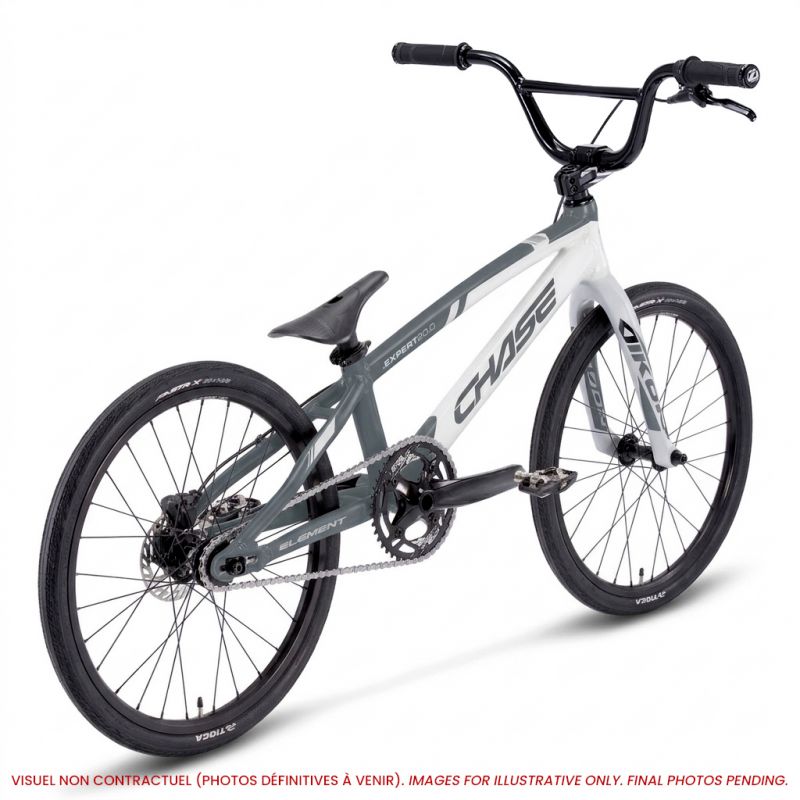

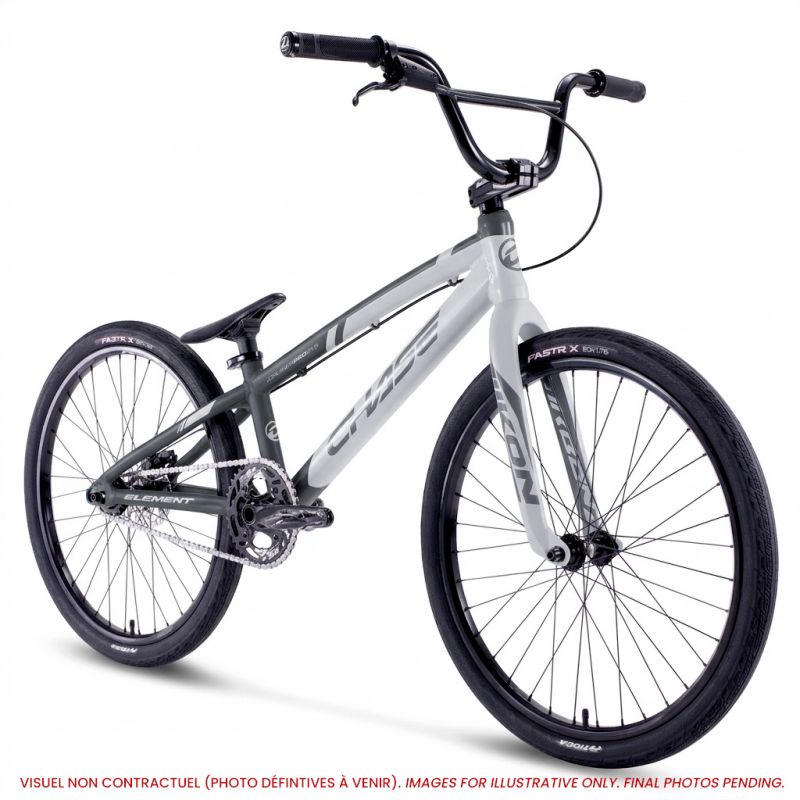

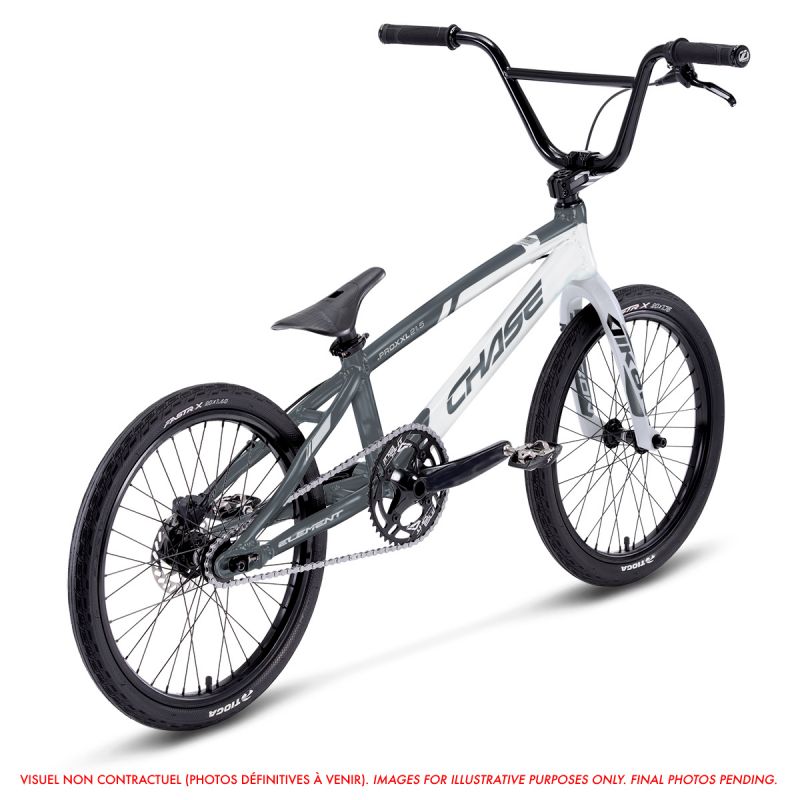

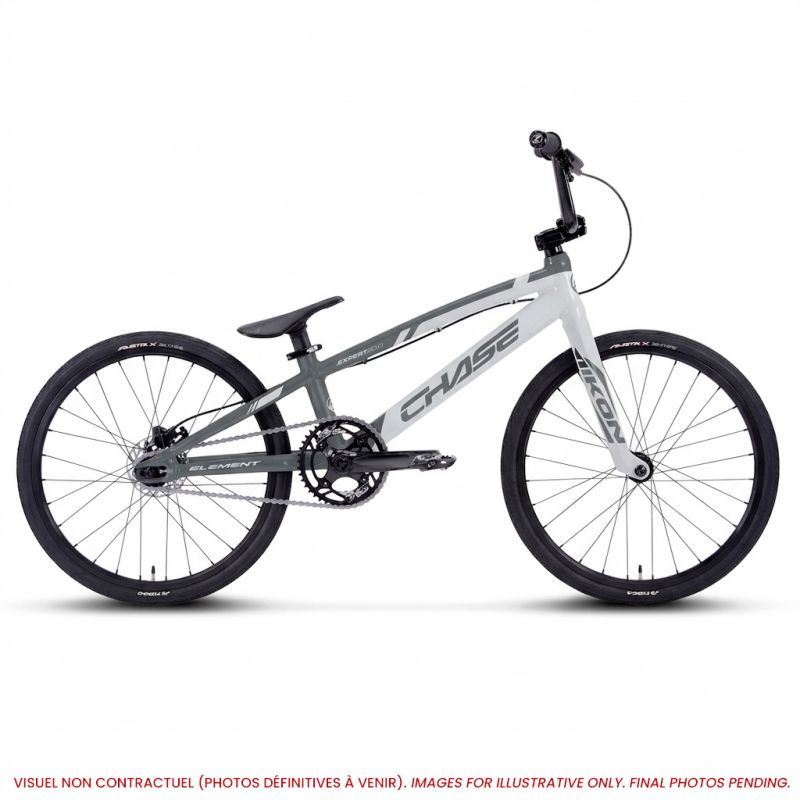

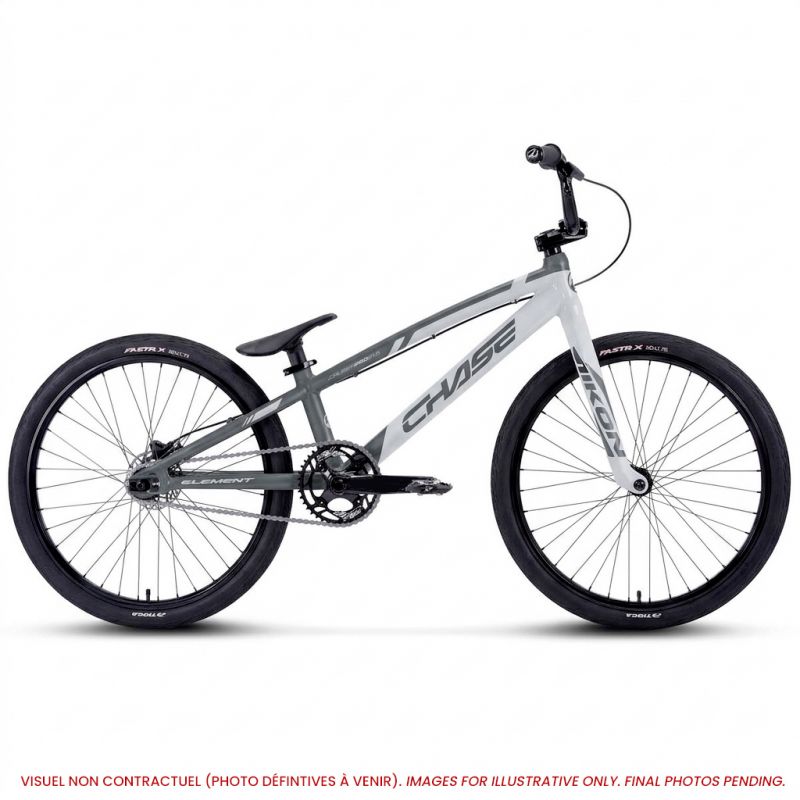

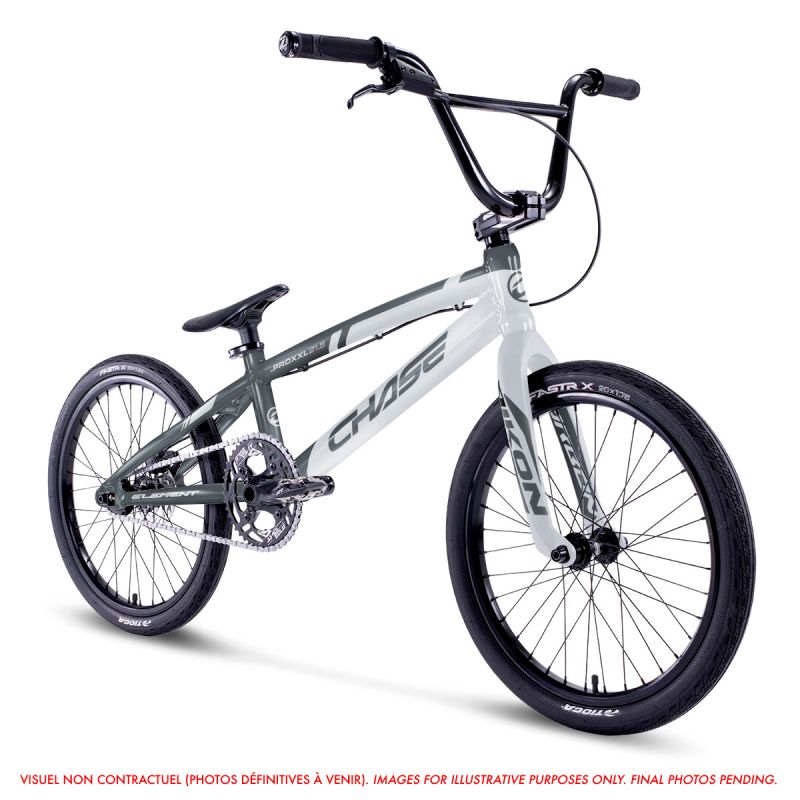

Chase Element BMX Bike 2027 | Grey / Light Grey
The ultimate Pro level complete bike – the Chase Element. With a updated frame design, that uses the same geometry as their Championship winning ACT and RSP Frame.
Chase has been pushing the envelope for the past 12 years with their complete bikes and the newest edition of the Element, is the best complete BMX race bike they have ever offered.
The Element frame is built up with some of the best parts in BMX, including- IKON Tapered Pro Carbon 20mm Fork, Element Alloy Rims, Tioga Fastr Tires, KMC Chain, Sealed Bearing ISO Cassette hub with 72 points of engagement, 31.8 Handlebars & Stem, Insight PL4 Cranks, Insight Chainring, Grips, and Shimano Hydraulic Rear Brake with 120mm Rotor.
The build with Shimano XT pedals is for photographic purposes only. Bikes are delivered with nylon pedals.
Geometry:
| Sizes | TT | CS min | LR | HA | SA | HT | SPL | BBH | WB | Wheels |
| Expert | 20″ 508 mm |
13.5″ 342.9 mm |
1.5″ 38.1 mm |
73° | 70° | 4.7″ 120 mm |
9.2″ 236 mm |
11″ 279.4 mm |
900.68 mm | 20×1-3/8″ |
| Pro | 20.5″ 520.7 mm |
14.25″ 362 mm |
1.5″ 38.1 mm |
74° | 72.5° | 4.7″ 120 mm |
9.2″ 236 mm |
11.5″ 292.1 mm |
940.46 mm | 20×1.5″ |
| Pro XL | 21″ 533.4 mm |
14.3″ 363.3 mm |
1.5″ 38.1 mm |
74° | 72.5° | 4.7″ 120 mm |
9.2″ 236 mm |
11.5″ 292.1 mm |
955.10 mm | 20×1.75″ |
| Pro XXL | 21.5″ 546.1 mm |
14.5″ 368.3 mm |
1.5″ 38.1 mm |
74° | 72.5° | 4.7″ 120 mm |
9.2″ 236 mm |
11.5″ 292.1 mm |
973.39 mm | 20×1.75″ |
| Pro XXXL | 22″ 558.8 mm |
14.5″ 368.3 mm |
1.5″ 38.1 mm |
74° | 72.5° | 4.7″ 120 mm |
9.2″ 236 mm |
11.5″ 292.1 mm |
993.01 mm | 20×1.75″ |
| Pro Cruiser | 21.5″ 546.1 mm |
15.25″ 387.3 mm |
1.5″ 38.1 mm |
73° | 69.5° | 4.7″ 120 mm |
9.8″ 250 mm |
12″ 304.8 mm |
973.65 mm | 24×1.75″ |
| Pro+ Cruiser | 22″ 558.8 mm |
15.25″ 387.3 mm |
1.5″ 38.1 mm |
73° | 69.5° | 4.7″ 120 mm |
9.8″ 250 mm |
12″ 304.8 mm |
987.67 mm | 24×1.75″ |
Complete bike specifications are subject to change throughout the year due to part upgrades or shortages and modifications made throughout Chase’s production cycle to improve the quality of complete bikes. Photo and list specifications may slightly differ because of this.
Specifications per size:
| SPECIFICATIONS Expert: | |
|
FRAME
|
Chase Element Expert 20″ NEW Top Tube 7005 T6 Alloy, Tapered Integrated Headset 1-1/8″ to 1.5″, Closed Drop Out |
|
FORK
|
Ikon Pro 20″ Tapered Carbon, Alloy Steerer Tube 1-1/8″ to 1.5″, 20mm Drop Out with 10mm axle adapter, Alloy Top Cap |
|
HEADSET
|
Tapered Integrated IS 42/52 1-1/8″ to 1.5″ Sealed Bearings |
|
HANDLEBAR
|
Chase Element Alloy Rise 5.75″, Diameter 31.8mm, Width 26.26″, 10° Back Sweep & 2° Up Sweep |
|
GRIPS
|
Insight C.O.G.S 130mm Alloy Clamps Laser Engraved Logo, PVC End Plugs |
|
STEM
|
Chase Element 1-1/8″ Steerer Tube, Diameter 31.8mm, Length 45mm 6061 T6 CNC Alloy Laser Engraved Logo |
|
BOTTOM BRACKET
|
Press Fit 68/73mm Sealed Bearing |
|
CHAINRING
|
Insight Alloy 42 Teeth 4 Bolts 104mm 1/2″x3/32″ 5mm |
|
CRANKSET
|
Insight PL4 Pro 2 Piece 165mm Alloy Cranks, 4-Bolt Mount, Integrated Pedal Insert, Chromoly Chainring Bolts |
|
PEDALS
|
Nylon Platform 9/16″ |
|
CHAIN
|
KMC Z1 Narrow 1/2″x3/32″ |
|
COG
|
16 Teeth |
|
FRONT HUB
|
28H, Sealed Bearings, 3/8″ Bolts |
|
REAR HUB
|
ISO 28H, Sealed Bearing, 3/8″ Bolts Steel Cassette with 3 Pawls Triple Angle Engagement for 24T Cog |
|
SPOKES
|
14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Steel |
|
FRONT RIM
|
Chase Element Alloy 451 Double Wall 28H 20″x1-3/8″ Presta Valve |
|
REAR RIM
|
Chase Element Alloy 451 Double Wall 28H 20″x1-3/8″ Presta Valve |
|
FRONT TIRE
|
Tioga Fastr X 20″x1-3/8″ 60 TPI Wire Bead |
|
REAR TIRE
|
Tioga Fastr X 20″x1-3/8″ 60 TPI Wire Bead |
|
INNER TUBES
|
20”x1-3/8″ Presta Valve |
| BRAKES | Shimano Hydraulic Disc BL-MT200(R) |
| SADDLE | Elevn PC Pivotal |
| SEATPOST | Chase Alloy Aero Pivotal 27.2x260mm |
| SEAT CLAMP | Chase Aero Quick Release Alloy 31.8mm Laser Engraved Logo |
| CHAIN TENSIONER | Integrated Construction with New Disc Lock Adapter |
| SPECIFICATIONS Pro: | |
|
FRAME
|
Chase Element Pro 20.5″ NEW Top Tube 7005 T6 Alloy, Tapered Integrated Head Tube 1-1/8″ to 1.5″, Close Drop Out |
|
FORK
|
Ikon Pro 20″ Tapered Carbon, Alloy Steerer Tube 1-1/8″ to 1.5″, 20mm Drop Out with 10mm axle adapter, Alloy Top Cap |
|
HEADSET
|
Tapered Integrated IS 42/52 1-1/8″ to 1.5″ Sealed Bearings |
|
HANDLEBAR
|
Chase Element Cromo 7.5″, Diameter 31.8mm, Rise, 28″ Wide, 10° Back Sweep & 2° Up Sweep |
|
GRIPS
|
Insight C.O.G.S 145mm Alloy Clamps Laser Engraved Logo, PVC End Plugs |
|
STEM
|
Chase Element 1-1/8″ Steerer Tube, Diameter 31.8mm, Length 50mm 6061 T6 CNC Alloy Laser Engraved Logo |
|
BOTTOM BRACKET
|
Press Fit 68/73mm Sealed Bearing |
|
CHAINRING
|
Insight 43 Tooth 4 Bolt 104mm 1/2″x3/32″ 5mm Alloy Ring |
|
CRANKSET
|
Insight PL4 Pro 2 Piece Crank 175mm Alloy Arm, 4 Bolt Spider, Integrated Pedal Inserts, Cromo Chain Ring Bolts / Nuts |
|
PEDALS
|
Nylon Platform 9/16″ |
|
CHAIN
|
KMC Z1 Narrow 1/2″x3/32″ |
|
COG
|
16 Teeth |
|
FRONT HUB
|
36H, Sealed Bearing, 3/8″ Bolts |
|
REAR HUB
|
ISO 36H, Sealed Bearing, 3/8″ Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
|
SPOKES
|
14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Steel |
|
FRONT RIM
|
Chase Element Alloy 406 Double Wall 36H 20″x1.75″ Presta Valve |
|
REAR RIM
|
Chase Element Alloy 406 Double Wall 36H 20″x1.75″ Presta Valve |
|
FRONT TIRE
|
Tioga Fastr X 20″x1.75″ 60 TPI Wire Bead |
|
REAR TIRE
|
Tioga Fastr X 20″x1.60″ 60 TPI Wire Bead |
|
INNER TUBES
|
20”x1.5″-1.75″ Presta Valve |
| BRAKES | Shimano Hydraulic Disc BL-MT200(R), 120mm Rotor Disc |
| SADDLE | Elevn PC Pivotal |
| SEATPOST | Chase Alloy Aero Pivotal 27.2x260mm |
| SEAT CLAMP | Chase Aero Quick Release Alloy 31.8mm Laser Engraved Logo |
| CHAIN TENSIONER | Integrated Construction with New Disc Lock Adapter |
| SPECIFICATIONS Pro XL: | |
|
FRAME
|
Chase Element Pro XL 21″ NEW Top Tube 7005 T6 Alloy, Tapered Integrated Head Tube 1-1/8″ to 1.5″, Close Drop Out |
|
FORK
|
Ikon Pro 20″ Tapered Carbon, Alloy Steerer Tube 1-1/8″ to 1.5″, 20mm Drop Out with 10mm axle adapter, Alloy Top Cap |
|
HEADSET
|
Tapered Integrated IS 42/52 1-1/8″ to 1.5″ Sealed Bearings |
|
HANDLEBAR
|
Chase Element Cromo 8″, Diameter 31.8mm, Rise, 28.5″ Wide, 10° Back Sweep & 2° Up Sweep |
|
GRIPS
|
Insight C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug |
|
STEM
|
Chase Element 1-1/8″ Steer Tube, Diameter 31.8mmmm, Length 53mm 6061 T6 Alloy CNC Laser Etched Logo |
|
BOTTOM BRACKET
|
Press Fit 68/73mm Sealed Bearing |
|
CHAINRING
|
Insight 44 Tooth 4 Bolt 104mm 1/2″x3/32″ 5mm Alloy Ring |
|
CRANKSET
|
Insight PL4 Pro 2 Piece Crank 175mm Alloy Arm, 4 Bolt Spider, Integrated Pedal Inserts, Cromo Chain Ring Bolts / Nuts |
|
PEDALS
|
Nylon Platform 9/16″ |
|
CHAIN
|
KMC Z1 Narrow 1/2″x3/32″ |
|
COG
|
16 Teeth |
|
FRONT HUB
|
36H, Sealed Bearing, 3/8″ Bolts |
|
REAR HUB
|
ISO 36H, Sealed Bearing, 3/8″ Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
|
SPOKES
|
14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Steel |
|
FRONT RIM
|
Chase Element Alloy 406 Double Wall 36H 20″x1.75″ Presta Valve |
|
REAR RIM
|
Chase Element Alloy 406 Double Wall 36H 20″x1.75″ Presta Valve |
|
FRONT TIRE
|
Tioga Fastr X 20″x1.75″ 60 TPI Wire Bead |
|
REAR TIRE
|
Tioga Fastr X 20″x1.60″ 60 TPI Wire Bead |
|
INNER TUBES
|
20”x1.5″-1.75″ Presta Valve |
| BRAKES | Shimano Hydraulic Disc BL-MT200(R), 120mm Rotor Disc |
| SADDLE | Elevn PC Pivotal |
| SEATPOST | Chase Alloy Aero Pivotal 27.2x260mm |
| SEAT CLAMP | Chase Aero Quick Release Alloy 31.8mm Laser Engraved Logo |
| CHAIN TENSIONER | Integrated Construction with New Disc Lock Adapter |
| SPECIFICATIONS PRO XXL: | |
|
FRAME
|
Chase Element Pro XXL 21.5″ NEW Top Tube 7005 T6 Alloy, Tapered Integrated Head Tube 1-1/8″ to 1.5″, Close Drop Out |
|
FORK
|
Ikon Pro 20″ Tapered Carbon, Alloy Steerer Tube 1-1/8″ to 1.5″, 20mm Drop Out with 10mm axle adapter, Alloy Top Cap |
|
HEADSET
|
Tapered Integrated IS 42/52 1-1/8″ to 1.5″ Sealed Bearings |
|
HANDLEBAR
|
Chase Element Cromo 8.5″, Diameter 31.8mm, Rise, 28.5″ Wide, 10° Back Sweep & 2° Up Sweep |
|
GRIPS
|
Insight C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug |
|
STEM
|
Chase Element 1-1/8″ Steer Tube, Diameter 31.8mmmm, Length 53mm 6061 T6 Alloy CNC Laser Etched Logo |
|
BOTTOM BRACKET
|
Press Fit 68/73mm Sealed Bearing |
|
CHAINRING
|
Insight 44 Tooth 4 Bolt 104mm 1/2″x3/32″ 5mm Alloy Ring |
|
CRANKSET
|
Insight PL4 Pro 2 Piece Crank 175mm Alloy Arm, 4 Bolt Spider, Integrated Pedal Inserts, Cromo Chain Ring Bolts / Nuts |
|
PEDALS
|
Nylon Platform 9/16″ |
|
CHAIN
|
KMC Z1 Narrow 1/2″x3/32″ |
|
COG
|
16 Teeth |
|
FRONT HUB
|
36H, Sealed Bearing, 3/8″ Bolts |
|
REAR HUB
|
ISO 36H, Sealed Bearing, 3/8″ Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
|
SPOKES
|
14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Steel |
|
FRONT RIM
|
Chase Element Alloy 406 Double Wall 36H 20″x1.75″ Presta Valve |
|
REAR RIM
|
Chase Element Alloy 406 Double Wall 36H 20″x1.75″ Presta Valve |
|
FRONT TIRE
|
Tioga Fastr X 20″x1.75″ 60 TPI Wire Bead |
|
REAR TIRE
|
Tioga Fastr X 20″x1.60″ 60 TPI Wire Bead |
|
INNER TUBES
|
20”x1.5″-1.75″ Presta Valve |
| BRAKES | Shimano Hydraulic Disc BL-MT200(R), 120mm Rotor Disc |
| SADDLE | Elevn PC Pivotal |
| SEATPOST | Chase Alloy Aero Pivotal 27.2x260mm |
| SEAT CLAMP | Chase Aero Quick Release Alloy 31.8mm Laser Engraved Logo |
| CHAIN TENSIONER | Integrated Construction with New Disc Lock Adapter |
| SPECIFICATIONS Pro XXXL: | |
|
FRAME
|
Chase Element Pro XXXL 22″ NEW Top Tube 7005 T6 Alloy, Tapered Integrated Head Tube 1-1/8″ to 1.5″, Close Drop Out |
|
FORK
|
Ikon Pro 20″ Tapered Carbon, Alloy Steerer Tube 1-1/8″ to 1.5″, 20mm Drop Out with 10mm axle adapter, Alloy Top Cap |
|
HEADSET
|
Tapered Integrated IS 42/52 1-1/8″ to 1.5″ Sealed Bearings |
|
HANDLEBAR
|
Chase Element Cromo 8.5″, Diameter 31.8mm, Rise, 28.5″ Wide, 10° Back Sweep & 2° Up Sweep |
|
GRIPS
|
Insight C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug |
|
STEM
|
Chase Element 1-1/8″ Steer Tube, Diameter 31.8mmmm, Length 53mm 6061 T6 Alloy CNC Laser Etched Logo |
|
BOTTOM BRACKET
|
Press Fit 68/73mm Sealed Bearing |
|
CHAINRING
|
Insight 44 Tooth 4 Bolt 104mm 1/2″x3/32″ 5mm Alloy Ring |
|
CRANKSET
|
Insight PL4 Pro 2 Piece Crank 175mm Alloy Arm, 4 Bolt Spider, Integrated Pedal Inserts, Cromo Chain Ring Bolts / Nuts |
|
PEDALS
|
Nylon Platform 9/16″ |
|
CHAIN
|
KMC Z1 Narrow 1/2″x3/32″ |
|
COG
|
16 Teeth |
|
FRONT HUB
|
36H, Sealed Bearing, 3/8″ Bolts |
|
REAR HUB
|
ISO 36H, Sealed Bearing, 3/8″ Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
|
SPOKES
|
14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Steel |
|
FRONT RIM
|
Chase Element Alloy 406 Double Wall 36H 20″x1.75″ Presta Valve |
|
REAR RIM
|
Chase Element Alloy 406 Double Wall 36H 20″x1.75″ Presta Valve |
|
FRONT TIRE
|
Tioga Fastr X 20″x1.75″ 60 TPI Wire Bead |
|
REAR TIRE
|
Tioga Fastr X 20″x1.60″ 60 TPI Wire Bead |
|
INNER TUBES
|
20”x1.5″-1.75″ Presta Valve |
| BRAKES | Shimano Hydraulic Disc BL-MT200(R), 120mm Rotor Disc |
| SADDLE | Elevn PC Pivotal |
| SEATPOST | Chase Alloy Aero Pivotal 27.2x260mm |
| SEAT CLAMP | Chase Aero Quick Release Alloy 31.8mm Laser Engraved Logo |
| CHAIN TENSIONER | Integrated Construction with New Disc Lock Adapter |
| SPECIFICATIONS Pro Cruiser: | |
|
FRAME
|
Chase Element Pro Cruiser 21.5″ NEW Top Tube 7005 T6 Alloy, Tapered Integrated Head Tube 1-1/8″ to 1.5″, Close Drop Out |
|
FORK
|
Ikon Pro 24″ Tapered Carbon, Alloy 1-1/8″ to 1.5″ Steer Tube, 20mm Drop Out with Adaptor 3/8″ Axle, Alloy Top Cap |
|
HEADSET
|
Tapered Integrated IS 42/52 1-1/8″ to 1.5″ Sealed Bearings |
|
HANDLEBAR
|
Chase Element Cromo 5.75″, Diameter 31.8mm Rise, 28.5″ Wide, 10° Back Sweep & 2° Up Sweep |
|
GRIPS
|
Insight C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug |
|
STEM
|
Chase Element 1-1/8″ Steer Tube, Diameter 31.8mmmm, Length 50mm 6061 T6 Alloy CNC Laser Etched Logo |
|
BOTTOM BRACKET
|
Press Fit 68/73mm Sealed Bearing |
|
CHAINRING
|
Insight 41 Tooth 4 Bolt 104mm 1/2″x3/32″ 5mm Alloy Ring |
|
CRANKSET
|
Insight PL4 Pro 2 Piece Crank 175mm Alloy Arm, 4 Bolt Spider, Integrated Pedal Inserts, Cromo Chain Ring Bolts / Nuts |
|
PEDALS
|
Nylon Platform 9/16″ |
|
CHAIN
|
KMC Z1 Narrow 1/2″x3/32″ |
|
COG
|
18 Teeth |
|
FRONT HUB
|
36H, Sealed Bearing, 3/8″ Bolts |
|
REAR HUB
|
ISO 36H, Sealed Bearing, 3/8″ Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
|
SPOKES
|
14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Steel |
|
FRONT RIM
|
Chase Element Alloy 507 Double Wall 36H 24″x1.75″ Presta Valve |
|
REAR RIM
|
Chase Element Alloy 507 Double Wall 36H 24″x1.75″ Presta Valve |
|
FRONT TIRE
|
Tioga Fastr X 24″x1.75″ 60 TPI Wire Bead |
|
REAR TIRE
|
Tioga Fastr X 24″x1.75″ 60 TPI Wire Bead |
|
INNER TUBES
|
24”x1.5″-1.75″ Presta Valve |
| BRAKES | Shimano Hydraulic Disc BL-MT200(R), 120mm Rotor Disc |
| SADDLE | Elevn PC Pivotal |
| SEATPOST | Chase Alloy Aero Pivotal 27.2x260mm |
| SEAT CLAMP | Chase Aero Quick Release Alloy 31.8mm Laser Engraved Logo |
| CHAIN TENSIONER | Integrated Construction with New Disc Lock Adapter |
| SPECIFICATIONS Pro Cruiser+: | |
|
FRAME
|
Chase Element Pro Cruiser + 22″ NEW Top Tube 7005 T6 Alloy, Tapered Integrated Head Tube 1-1/8″ to 1.5″, Close Drop Out |
|
FORK
|
Ikon Pro 24″ Tapered Carbon, Alloy 1-1/8″ to 1.5″ Steer Tube, 20mm Drop Out with Adaptor 3/8″ Axle, Alloy Top Cap |
|
HEADSET
|
Tapered Integrated IS 42/52 1-1/8″ to 1.5″ Sealed Bearings |
|
HANDLEBAR
|
Chase Element Cromo 5.75″, Diameter 31.8mm Rise, 28.5″ Wide, 10° Back Sweep & 2° Up Sweep |
|
GRIPS
|
Insight C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug |
|
STEM
|
Chase Element 1-1/8″ Steer Tube, Diameter 31.8mmmm, Length 50mm 6061 T6 Alloy CNC Laser Etched Logo |
|
BOTTOM BRACKET
|
Press Fit 68/73mm Sealed Bearing |
|
CHAINRING
|
Insight 41 Tooth 4 Bolt 104mm 1/2″x3/32″ 5mm Alloy Ring |
|
CRANKSET
|
Insight PL4 Pro 2 Piece Crank 175mm Alloy Arm, 4 Bolt Spider, Integrated Pedal Inserts, Cromo Chain Ring Bolts / Nuts |
|
PEDALS
|
Nylon Platform 9/16″ |
|
CHAIN
|
KMC Z1 Narrow 1/2″x3/32″ |
|
COG
|
18 Teeth |
|
FRONT HUB
|
36H, Sealed Bearing, 3/8″ Bolts |
|
REAR HUB
|
ISO 36H, Sealed Bearing, 3/8″ Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
|
SPOKES
|
14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Steel |
|
FRONT RIM
|
Chase Element Alloy 507 Double Wall 36H 24″x1.75″ Presta Valve |
|
REAR RIM
|
Chase Element Alloy 507 Double Wall 36H 24″x1.75″ Presta Valve |
|
FRONT TIRE
|
Tioga Fastr X 24″x1.75″ 60 TPI Wire Bead |
|
REAR TIRE
|
Tioga Fastr X 24″x1.75″ 60 TPI Wire Bead |
|
INNER TUBES
|
24”x1.5″-1.75″ Presta Valve |
| BRAKES | Shimano Hydraulic Disc BL-MT200(R), 120mm Rotor Disc |
| SADDLE | Elevn PC Pivotal |
| SEATPOST | Chase Alloy Aero Pivotal 27.2x260mm |
| SEAT CLAMP | Chase Aero Quick Release Alloy 31.8mm Laser Engraved Logo |
| CHAIN TENSIONER | Integrated Construction with New Disc Lock Adapter |
