Name: Chase Edge BMX Bike 2026 | Slate / Black
Brand: Chase
SKU: 22840
Availability: InStock

Beschrijving

Chase Edge BMX Bike 2026 | Slate / Black

The all new CHASE Edge is a race ready BMX machine, ideal for riders taking BMX Racing to the next level.

The new Chase Edge has been improved with Shimano Hydraulic disc brakes (Junior size & above), all new Chase 24mm 2 piece Alloy Cranks (Expert XL & Above) , updated gearing and crank sizes, a 2 tone paint and graphics design, and an closed rear dropout system with a integrated chain tensioner system, The Edge frame also features hydroformed, triple butted, 6061 aluminum tubes with an integrated head tube. Other featured parts on the Edge include 4130 chromoly fork and handlebars and double wall rims with triple engagement rear cassette rear hub.

FRAME SIZE	TT	CS min	LR	AF	SA	HT	SPL	BBH	WB	WHEELS
Micro	16.25″ 412.75mm	10.85″ 275.6mm	1.8″ 46mm	71°	69°	4″ 100mm	8″ 203.5mm	10.25″ 254mm	28.81″ 732mm	18×1″
Mini	17.25″ 438.15mm	12.25″ 312mm	1.8″ 46mm	72°	70°	4.33″ 110mm	8.8″ 225mm	10.6″ 269.2mm	31.49″ 800mm	20×1-1/8″
Junior	18.75″ 476.25mm	12.5″ 317.5mm	1.8″ 46mm	73°	72°	4.33″ 110mm	8.8″ 225mm	10.6″ 269.2mm	33.85″ 859.9mm	20×1-1/8″
Expert	19.75″ 501.65mm	13″ 330.2mm	1.8″ 46mm	73°	72°	4.33″ 110mm	8.8″ 225mm	11″ 279.4mm	34.79″ 883.8mm	20×1-3/8″
Expert XL	20″ 508mm	13.5″ 353mm	1.8″ 46mm	73°	72°	4.7″ 120mm	8.8″ 225mm	11.5″ 279.4mm	35.55″ 903mm	20×1.50″
Pro	20.5″ 520.7mm	14″ 355.6mm	1.8″ 46mm	74°	72°	4.7″ 120mm	9.3″ 238mm	11″ 279.4mm	36.9″ 938mm	20×1.75″
Pro XL	21″ 533.4mm	14.15″ 359.4mm	1.8″ 46mm	74°	72°	4.7″ 120mm	9.3″ 238mm	11.5″ 292.1mm	37.21″ 945.2mm	20×1.75″
Pro XXL	21.5″ 546.1mm	14.15″ 359.4mm	1.8″ 46mm	74°	72°	4.7″ 120mm	9.3″ 238mm	11.5″ 292.1mm	38.16″ 969.5mm	20×1.75″

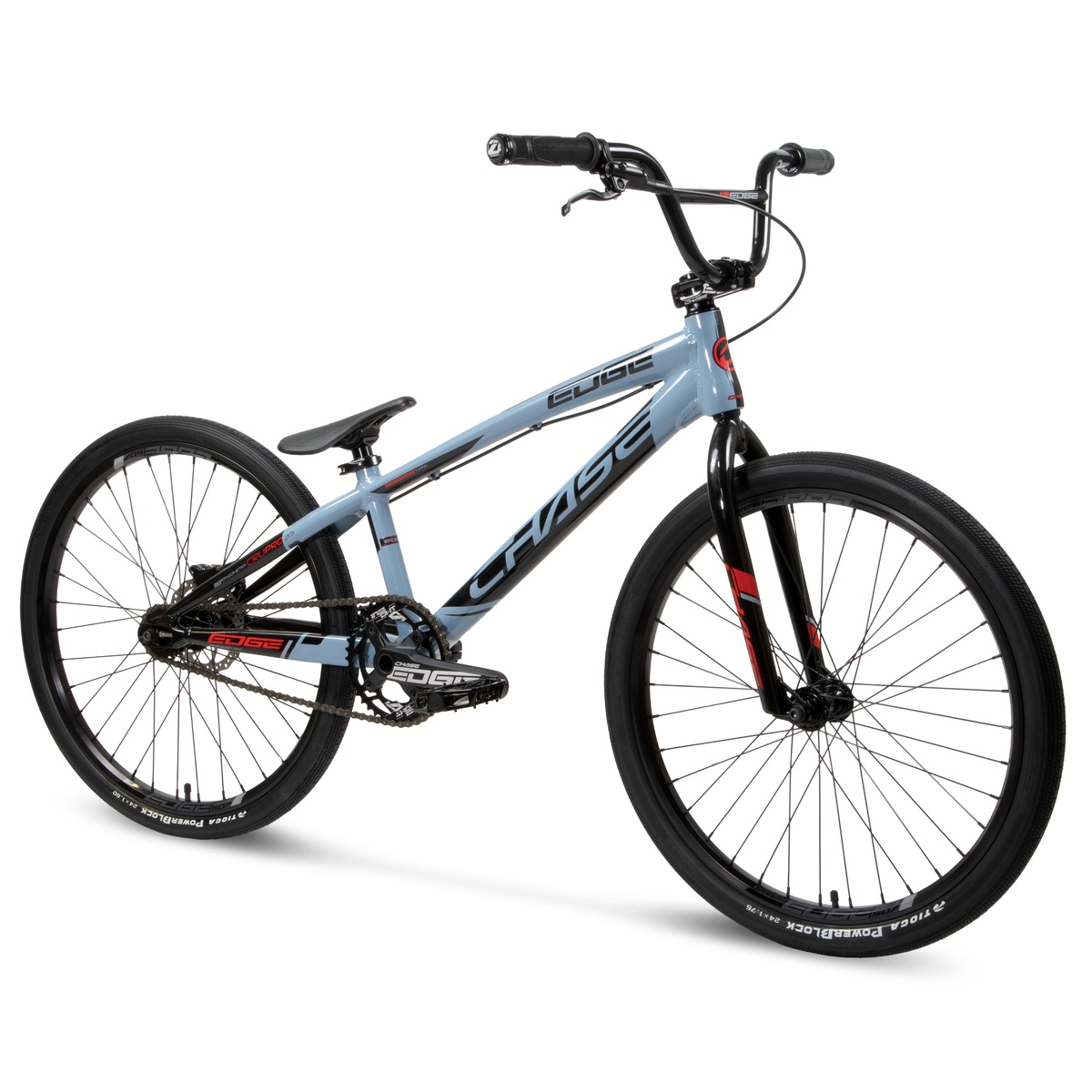

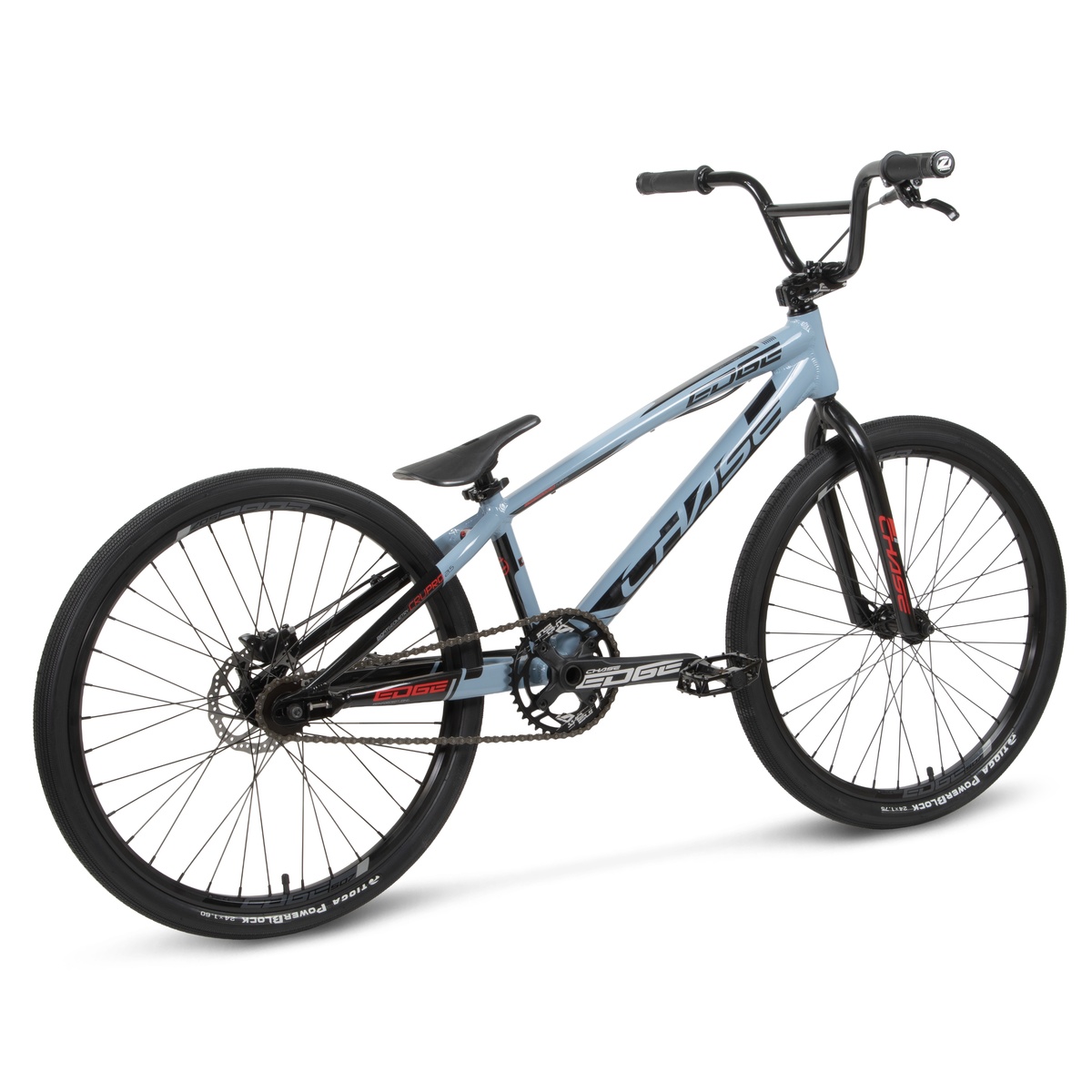

Pro Cruiser	21.5″ 546.1mm	14.5″ 368.3mm	1.8″ 46mm	74°	71°	4.7″ 120mm	9.3″ 238mm	10.6″ 270mm	37.97″ 964.5mm	24×1.75″

Features

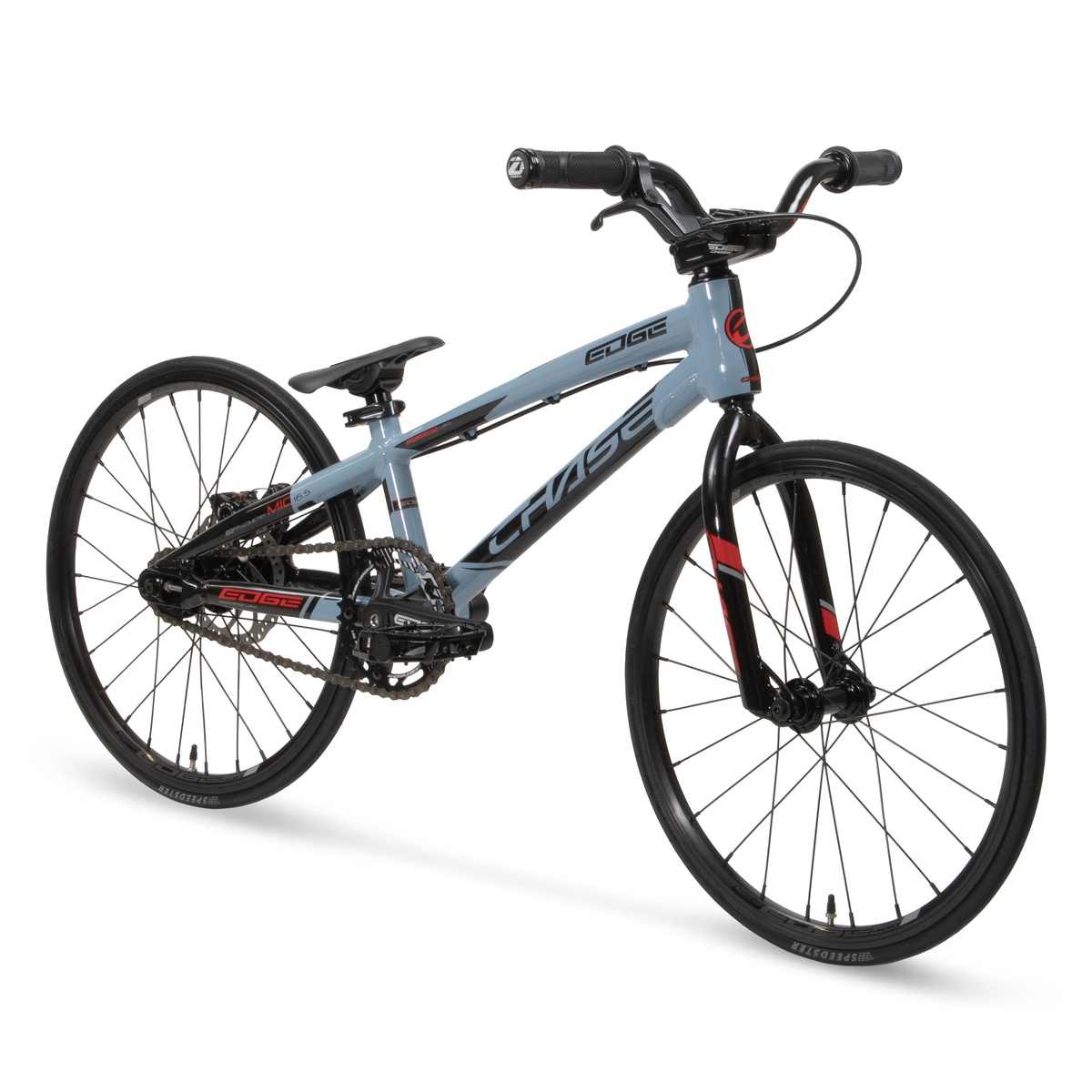

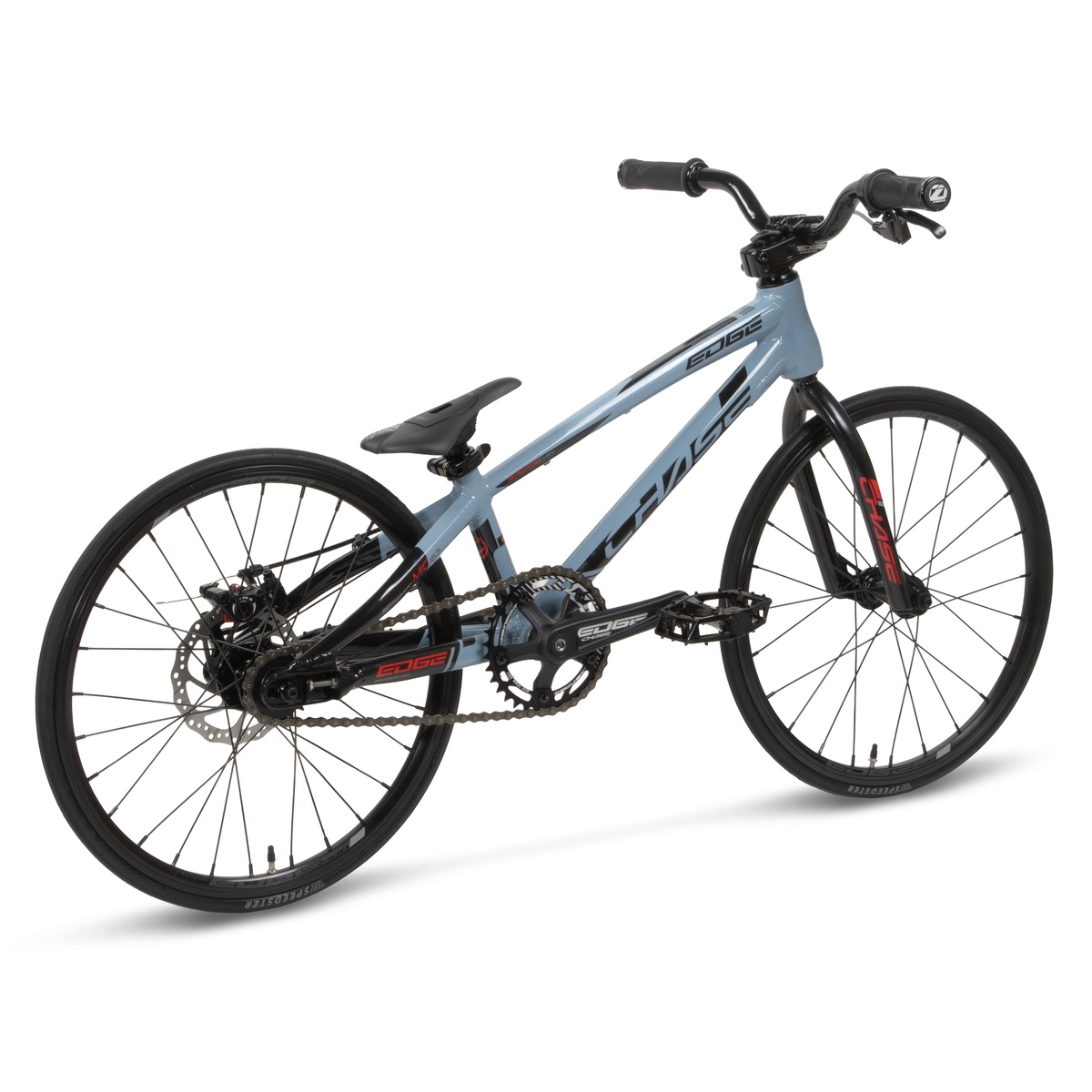

Size Micro:

FRAME	CHASE Edge Micro 16.25″ Top Tube, 6061 T6 Alloy Triple Butted Hydroformed, Integrated Head Tube, Enclosed Rear Dropouts And Chain Tensioner System

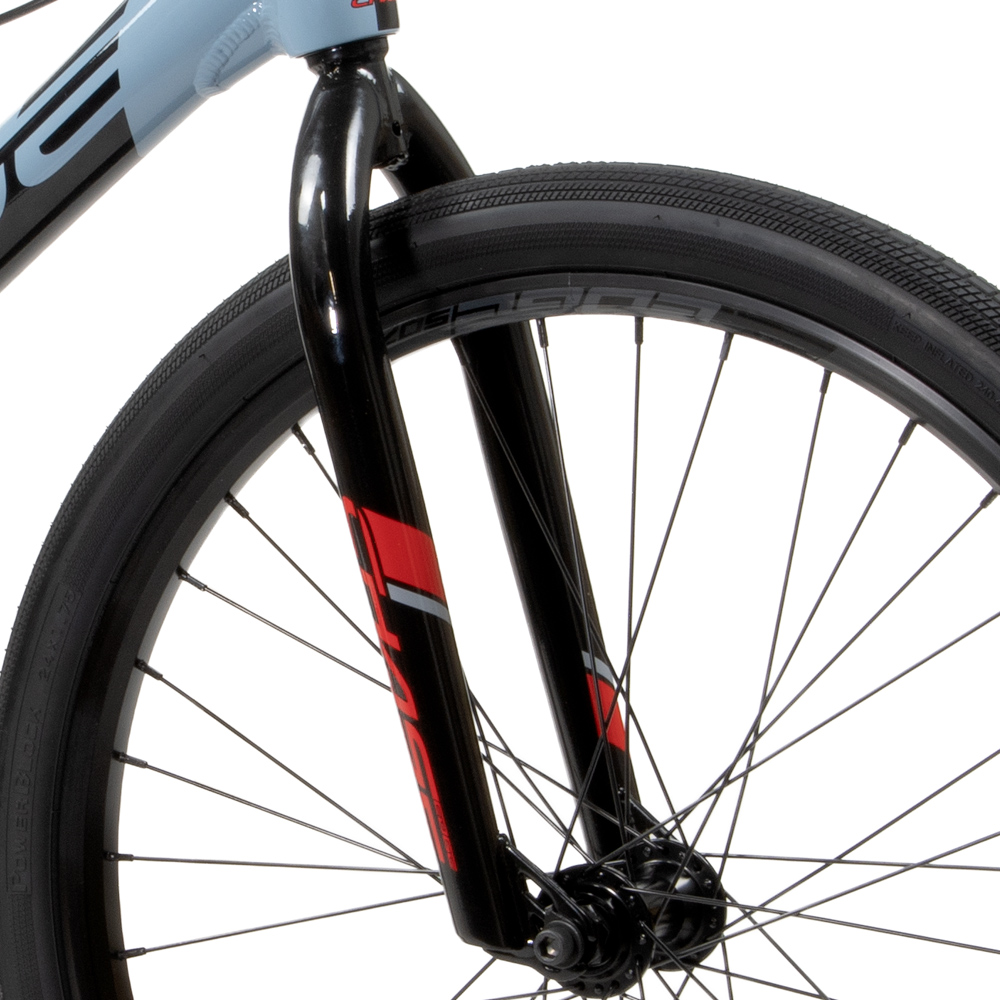

FORK	CHASE Edge Micro Full Cr-mo, 1″ Steer Tube With Tapered Blades
HEADSET	Integrated IS 42/42 Reductor 1″, Sealed Bearing
HANDLEBAR	Chase Edge Cr-Mo 2.25″ Rise, 20″ Wide, 8° Back Sweep & 2° Up Sweep
GRIPS	INSIGHT C.O.G.S 115mm Alloy Clamps Laser Etched Logo, PVC End Plug
STEM	CHASE Edge 40mm 6061 T6 Alloy Laser Etched Logo
BB	Euro Square 113mm Sealed Bearing
CHAINRING	Insight 35 Tooth 5 Bolt 110mm 1/2″X3/32″ 3mm Alloy Ring
CRANK	CHASE Edge 3 Piece Crank 130mm Alloy Arm, Cr-Mo Chainring Bolts
PEDAL	Mini Platform 9/16″ Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing
CHAIN	KMC Z1 narrow 1/2″x3/32″
COG	16 Tooth
FRONT HUB	Mini 24H, Sealed Bearing, 10mm Axle, M6 Bolts
REAR HUB	Mini ISO 28H, Sealed Bearing, 10mm Axle, M6 Bolts, Steel Cassette Body With 3 Pawls At Triple Angle Engagement For 24T Ratchets
SPOKES	Front 182mm, Rear 173/174mm, 14 Gauge, Steel
NIPPLES	16mm, 14 Gauge, Brass
FRONT RIM	Chase Edge Alloy 100 Double Wall 24H 18″X1″ Presta Valve
REAR RIM	Chase Edge Alloy 100 Double Wall 24H 18″X1″ Presta Valve
FRONT TIRE	Vee Rubber Speedster 18″X1″ Wire Bead
REAR TIRE	Vee Rubber Speedster 18″X1″ Wire Bead
TUBES	18″x1.00″ Presta Valve
BRAKES	Mechanical, 140mm Disc Rotor, Shimano B01S Compatible Pads, Lock Disc Adaptor
SADDLE	Insight Mini Pivotal Nylon Plastic Body With Cr-Mo Bolt
SEAT POST	Pivotal 25.4x110mm Alloy
SEAT CLAMP	Chase Edge QR Alloy 28.6mm
CHAIN TENSIONNER	Integrated Built-In With New Lock Disc Adaptor

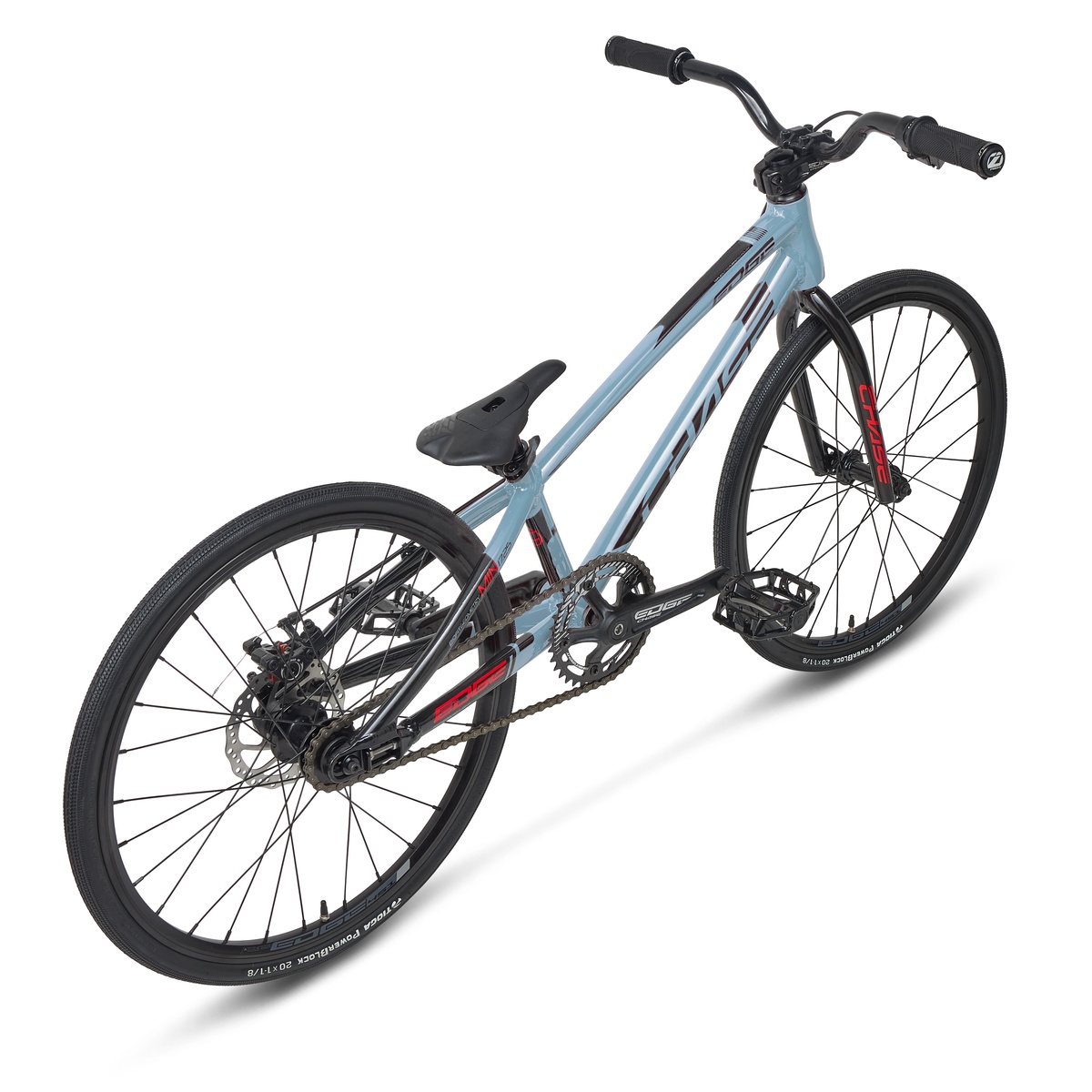

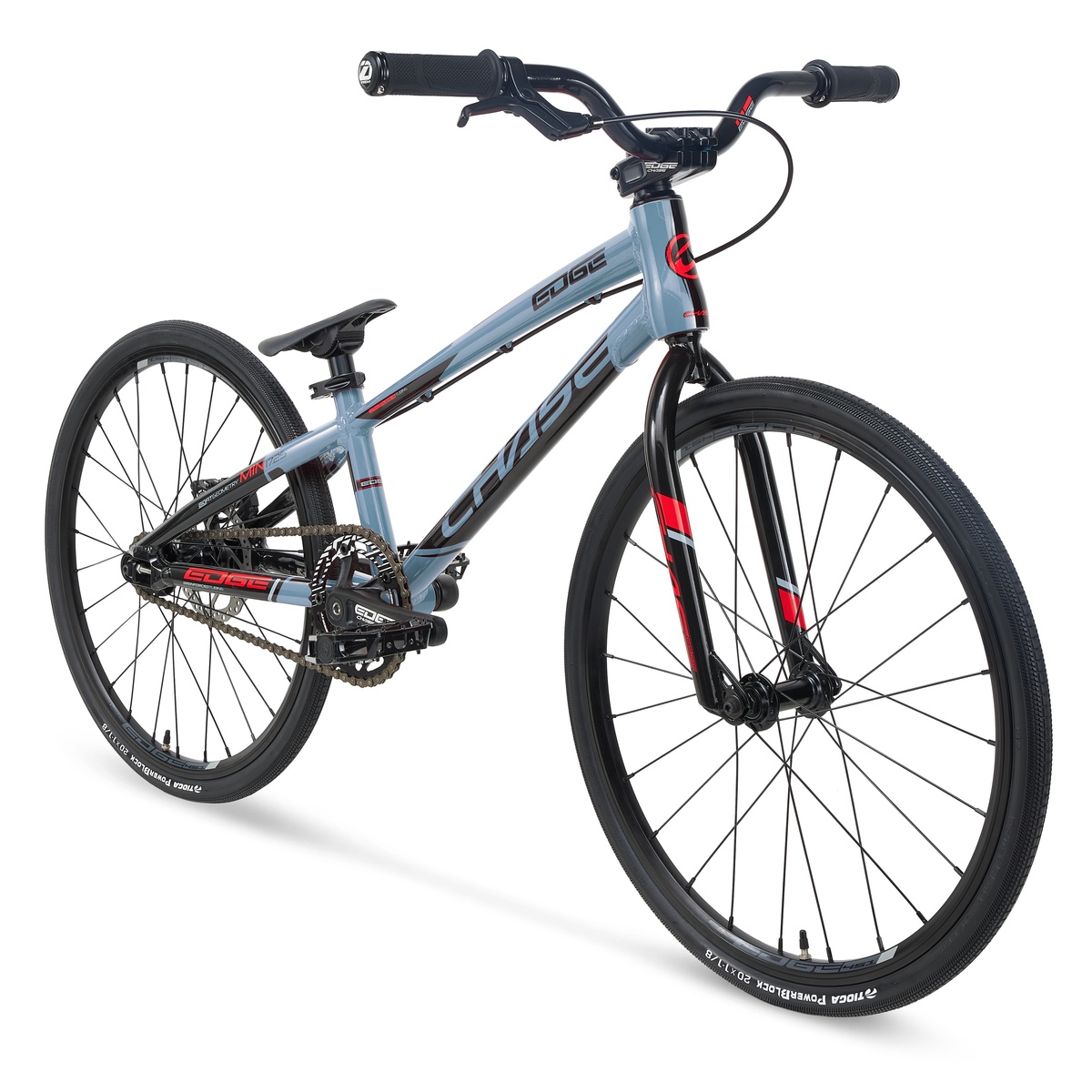

Size Mini:

FRAME	CHASE Edge Mini 17.25″ Top Tube, 6061 T6 Alloy Triple Butted Hydroformed, Integrated Head Tube, Enclosed Rear Dropouts And Chain Tensioner System
FORK	CHASE Edge Mini Full Cr-mo, 1″ Steer Tube With Tapered Blades
HEADSET	Integrated IS 42/42 Reductor 1″, Sealed Bearing
HANDLEBAR	CHASE Edge 22.2mm, 2.25″ Rise, 22.5″ Wide, 8° Back Sweep, 2° Up Sweep
GRIPS	INSIGHT C.O.G.S 115mm Alloy Clamps Laser Etched Logo, PVC End Plug
STEM	CHASE Edge 40mm 6061 T6 AlloyLaser Etched Logo
BB	Euro Square 113mm Sealed Bearing
CHAINRING	INSIGHT 36 Tooth 5 Bolts 110mm 1/2″x3/32″ 3mm Alloy Ring
CRANK	CHASE Edge 3 Piece Crank 140mm Alloy Arm, Cr-Mo Chainring Bolts
PEDAL	Mini Platform 9/16″ Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing
CHAIN	KMC Z1 narrow 1/2″x3/32″
COG	16 Tooth
FRONT HUB	CHASE Edge Mini, 3/8″ Axle, M6 bolts, 24H, Sealed Bearing
REAR HUB	CHASE Edge Mini ISO 28H, Sealed Bearing, 10mm Axle, M6 Bolts, Steel Cassette Body With 3 Pawls At Triple Angle Engagement For 24T Ratchets
SPOKES	Front 208mm, Rear 198/199mm, 14 Gauge, Steel
NIPPLES	16mm, 14 Gauge, Brass
FRONT RIM	CHASE Edge 118 Double Wall 24H 20″x1-1/8″ Presta Valve
REAR RIM	CHASE Edge 118 Double Wall 24H 20″x1-1/8″ Presta Valve
FRONT TIRE	TIOGA PowerBlock 20″X1-1/8″ Wire Bead
REAR TIRE	TIOGA PowerBlock 20″X1-1/8″ Wire Bead
TUBES	20″x1-1/8″ Presta Valve
BRAKES	Mechanical, 140mm Disc Rotor, Shimano B01S Compatible Pads, Lock Disc Adaptor
SADDLE	Insight Mini Pivotal Nylon Plastic Body With Cr-Mo Bolt
SEAT POST	Pivotal 25.4x110mm Alloy
SEAT CLAMP	Chase Edge QR Alloy 28.6mm

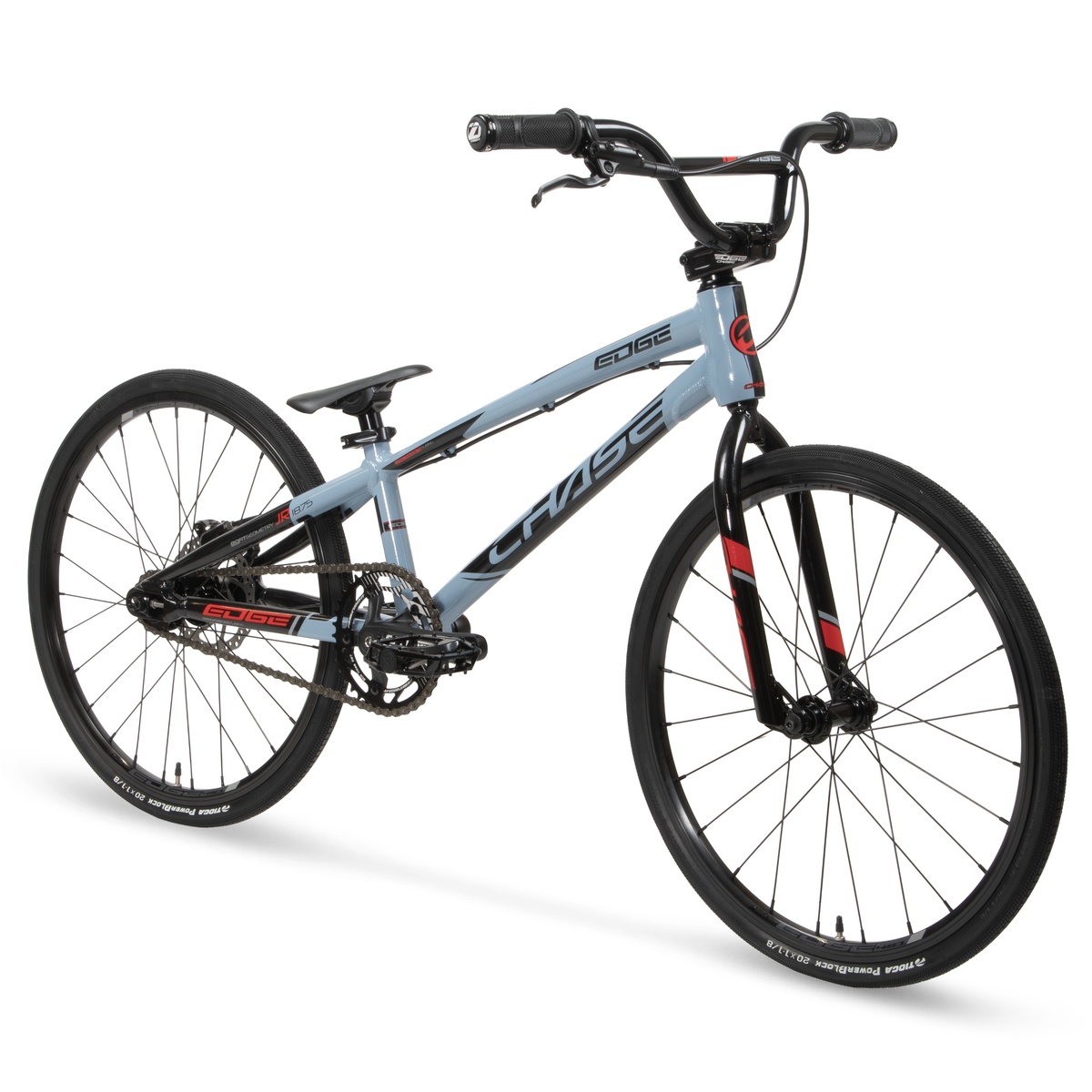

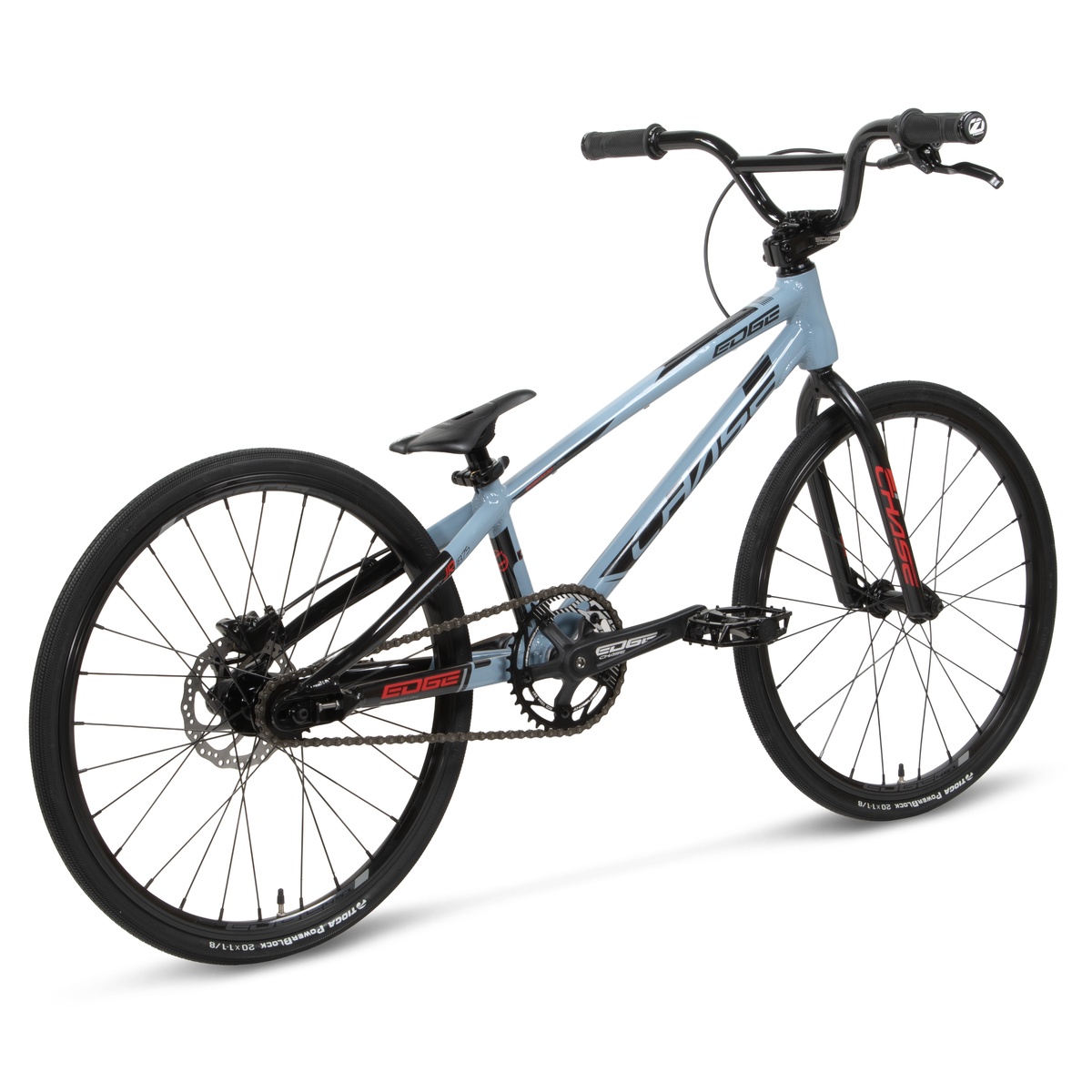

Size Junior:

FRAME	CHASE Edge Junior 18.75″ Top Tube, 6061 T6 Alloy, Integrated 1″ Head Tube, Enclosed rear dropouts and Chain tensioner system
FORK	CHASE Edge Mini Full Cr-mo, 1″ Steer Tube With Tapered Blades
HEADSET	Integrated IS 42/42 Reductor 1″, Sealed Bearing
HANDLEBAR	CHASE Edge 22.2mm, 4.25″ Rise, 24″ Wide, 8° Back Sweep, 2° Up Sweep
GRIPS	INSIGHT C.O.G.S 115mm Alloy Clamps Laser Etched Logo, PVC End Plug
STEM	CHASE Edge 40mm 6061 T6 AlloyLaser Etched Logo
BB	Euro Square 113mm Sealed Bearing
CHAINRING	INSIGHT 38 Tooth 5 Bolts 110mm 1/2″x3/32″ 3mm Alloy Ring
CRANK	CHASE Edge 3 Piece Crank 150mm Alloy Arm, Cr-Mo Chainring Bolts
PEDAL	Mini Platform 9/16″ Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing
CHAIN	KMC Z1 narrow 1/2″x3/32″
COG	16 Tooth
FRONT HUB	CHASE Edge Mini, 3/8″ Axle, M6 bolts, 24H, Sealed Bearing
REAR HUB	CHASE Edge Mini ISO 28H, Sealed Bearing, 10mm Axle, M6 Bolts, Steel Cassette Body With 3 Pawls At Triple Angle Engagement For 24T Ratchets
SPOKES	Front 208mm, Rear 198/199mm, 14 Gauge, Steel
NIPPLES	16mm, 14 Gauge, Brass
FRONT RIM	CHASE Edge 118 Double Wall 24H 20″x1-1/8″ Presta Valve
REAR RIM	CHASE Edge 118 Double Wall 24H 20″x1-1/8″ Presta Valve
FRONT TIRE	TIOGA PowerBlock 20″X1-1/8″ Wire Bead
REAR TIRE	TIOGA PowerBlock 20″X1-1/8″ Wire Bead
TUBES	20″x1-1/8″ Presta Valve
BRAKES	Lever Shimano Disc Brake BL-MT200(R) Hydraulic Lever, Adaptor 140mm Setup, With Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads And 140mm Rotor
SADDLE	Insight Mini Pivotal Nylon Plastic Body With Cr-Mo Bolt
SEAT POST	Pivotal 25.4x110mm Alloy
SEAT CLAMP	Chase Edge QR Alloy 28.6mm

Size Expert:

FRAME	CHASE Edge Expert 19.75″ Top Tube, 6061 T6 Alloy Triple Butted Hydroformed, Integrated Head Tube, Enclosed Rear Dropouts And Chain Tensioner System
FORK	CHASE Edge Expert Full Cr-mo, 1-1/8″ Steer Tube With Tapered Blades
HEADSET	Integrated IS 42/42 1-1/8″, Sealed Bearing
HANDLEBAR	CHASE Edge 22.2mm, 5.75″ Rise, 25.5″ Wide, 8° Back Sweep, 2° Up Sweep
GRIPS	INSIGHT C.O.G.S 130mm Alloy Clamps Laser Etched Logo, PVC End Plug
STEM	CHASE Edge 50mm 6061 T6 Alloy Laser Etched Logo
BB	Euro Square 113mm Sealed Bearing
CHAINRING	INSIGHT 40 Tooth 5 Bolts 110mm 1/2″x3/32″ 3mm Alloy Ring
CRANK	CHASE Edge 3 Piece Crank 160mm Alloy Arm, Cr-Mo Chainring Bolts
PEDAL	Pro Platform 9/16″ Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing
CHAIN	KMC Z1 narrow 1/2″x3/32″
COG	16 Tooth
FRONT HUB	CHASE Edge Mini, 3/8″ Axle, M6 bolts, 28H, Sealed Bearing
REAR HUB	CHASE Edge Mini ISO, 3/8″ Axle, M6 bolts, 28H, Sealed Bearing, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets
SPOKES	Front 206mm, Rear 198/199mm, 14 Gauge, Steel
NIPPLES	16mm, 14 Gauge, Brass
FRONT RIM	CHASE Edge 138 Double Wall 28H 20″x1-3/8″ Schrader Valve
REAR RIM	CHASE Edge 138 Double Wall 28H 20″x1-3/8″ Schrader Valve
FRONT TIRE	TIOGA PowerBlock 20″x1-3/8″ Wire Bead
REAR TIRE	TIOGA PowerBlock 20″x1-3/8″ Wire Bead
TUBES	20″x1-3/8″ Schrader Valve
BRAKES	Lever Shimano Disc Brake BL-MT200(R) Hydraulic, Adaptor 140mm Setup, With Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads And 140mm Rotor
SADDLE	CHASE Edge Pro Pivotal
SEAT POST	Pivotal 25.4x110mm Alloy
SEAT CLAMP	Chase Edge QR Alloy 28.6mm
CHAIN TENSIONNER	Integrated Built-In With New Lock Disc Adaptor

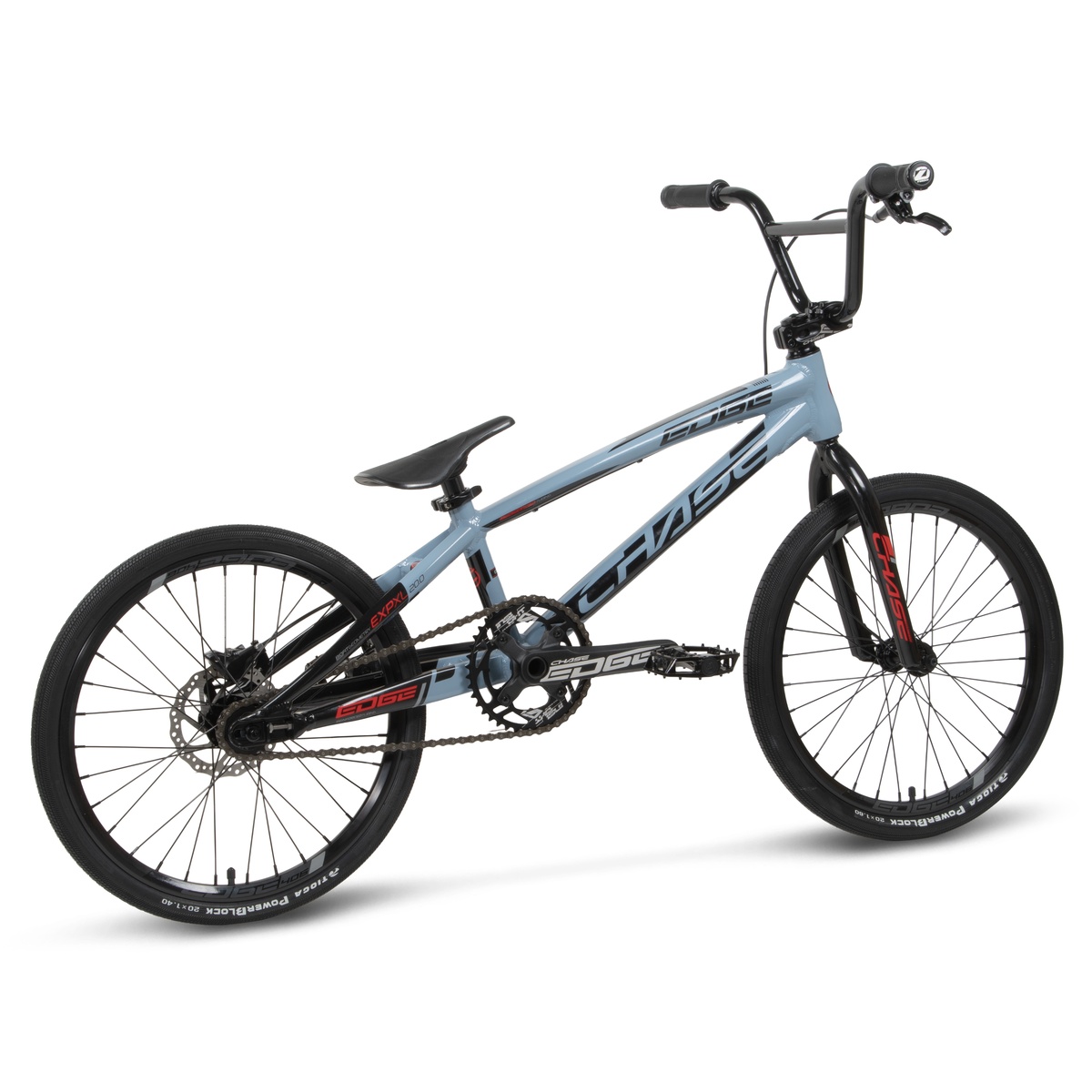

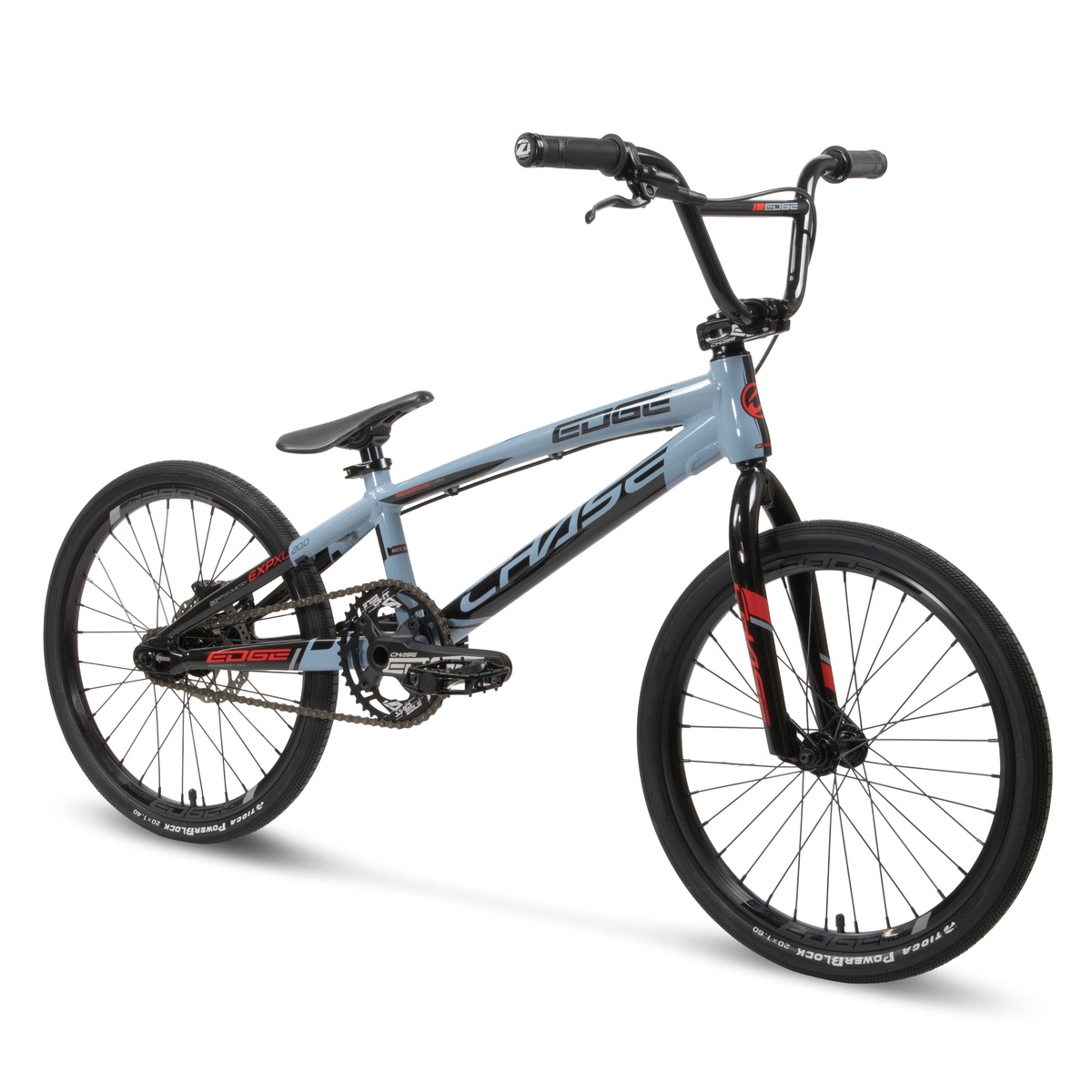

Size Expert XL:

FRAME	CHASE Edge Expert XL 20″ Top Tube, 6061 T6 Alloy Triple Butted Hydroformed, Integrated Head Tube, Enclosed Rear Dropouts And Chain Tensioner System
FORK	CHASE Edge Expert Full Cr-mo, 1-1/8″ Steer Tube With Tapered Blades
HEADSET	Integrated IS 42/42 1-1/8″, Sealed Bearing
HANDLEBAR	CHASE Edge 22.2mm, 6.5″ Rise, 26″ Wide, 8° Back Sweep, 2° Up Sweep
GRIPS	INSIGHT C.O.G.S 130mm Alloy Clamps Laser Etched Logo, PVC End Plug
STEM	CHASE Edge 50mm 6061 T6 Alloy Laser Etched Logo
BB	Euro External BSA 24mm Sealed Bearing
CHAINRING	INSIGHT 41 Tooth 4 Bolt 104mm 1/2″x3/32″ 5mm Alloy Ring
CRANK	CHASE Edge 2 Pieces 24mm Axle Crank 170mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts
PEDAL	Pro Platform 9/16″ Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing
CHAIN	KMC Z1 narrow 1/2″x3/32″
COG	16 Tooth
FRONT HUB	CHASE Edge Mini, 3/8″ Axle, M6 bolts, 32H, Sealed Bearing
REAR HUB	CHASE Edge Mini ISO, 3/8″ Axle, M6 bolts, 32H, Sealed Bearing, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets
SPOKES	Front 181mm, Rear 173/174mm, 14 Gauge, Steel
NIPPLES	16mm, 14 Gauge, Brass
FRONT RIM	CHASE Edge 150 Double Wall 32H 20″x1.50″ Schrader Valve
REAR RIM	CHASE Edge 150 Double Wall 32H 20″x1.50″ Schrader Valve
FRONT TIRE	TIOGA PowerBlock 20″x1.60″ Wire Bead
REAR TIRE	TIOGA PowerBlock 20″x1.40″ Wire Bead
TUBES	20″x1.50″-1.75″ Schrader Valve
BRAKES	Lever Shimano Disc Brake BL-MT200(R) Hydraulic, Adaptor 140mm Setup, With Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads And 140mm Rotor
SADDLE	CHASE Edge Pro Pivotal
SEAT POST	Pivotal 27.2x250mm Alloy
SEAT CLAMP	CHASE Edge QR Alloy 31.8mm
CHAIN TENSIONNER	Integrated Built-In With New Lock Disc Adaptor

Size Pro:

FRAME	CHASE Edge Pro 20.5″ Top Tube, 6061 T6 Alloy Triple Butted Hydroformed, Integrated Head Tube, Enclosed Rear Dropouts And Chain Tensioner System
FORK	CHASE Edge Pro Full Cr-mo, 1-1/8″ Steer Tube With Tapered Blades
HEADSET	Integrated IS 42/42 1-1/8″, Sealed Bearing
HANDLEBAR	CHASE Edge 22.2mm, 7.5″ Rise, 27″ Wide, 11° Back Sweep, 3.5° Up Sweep
GRIPS	INSIGHT C.O.G.S 130mm Alloy Clamps Laser Etched Logo, PVC End Plug
STEM	CHASE Edge 50mm 6061 T6 Alloy Laser Etched Logo
BB	Euro External BSA 24mm Sealed Bearing
CHAINRING	INSIGHT 42 Tooth 4 Bolt 104mm 1/2″x3/32″ 5mm Alloy Ring
CRANK	CHASE Edge 2 Pieces 24mm Axle Crank 175mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts
PEDAL	Pro Platform 9/16″ Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing
CHAIN	KMC Z1 narrow 1/2″x3/32″
COG	16 Tooth
FRONT HUB	CHASE Edge Pro, 3/8″ Axle, 32H, Sealed Bearing
REAR HUB	CHASE Edge Pro ISO, 3/8″ Axle, 32H, Sealed Bearing, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets
SPOKES	Front 179mm, Rear 173/174mm, 14 Gauge, Steel
NIPPLES	16mm, 14 Gauge, Brass
FRONT RIM	CHASE Edge 150 Double Wall 32H 20″x1.50″ Schrader Valve
REAR RIM	CHASE Edge 150 Double Wall 32H 20″x1.50″ Schrader Valve
FRONT TIRE	TIOGA PowerBlock 20″x1.85″ Wire Bead
REAR TIRE	TIOGA PowerBlock 20″x1.60″ Wire Bead
TUBES	20″x1.50″-1.75″ Schrader Valve
BRAKES	Lever Shimano Disc Brake BL-MT200(R) Hydraulic, Adaptor 140mm Setup, With Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads And 140mm Rotor
SADDLE	CHASE Edge Pro Pivotal
SEAT POST	Pivotal 27.2x250mm Alloy
SEAT CLAMP	CHASE Edge QR Alloy 31.8mm
CHAIN TENSIONNER	Integrated Built-In With New Lock Disc Adaptor

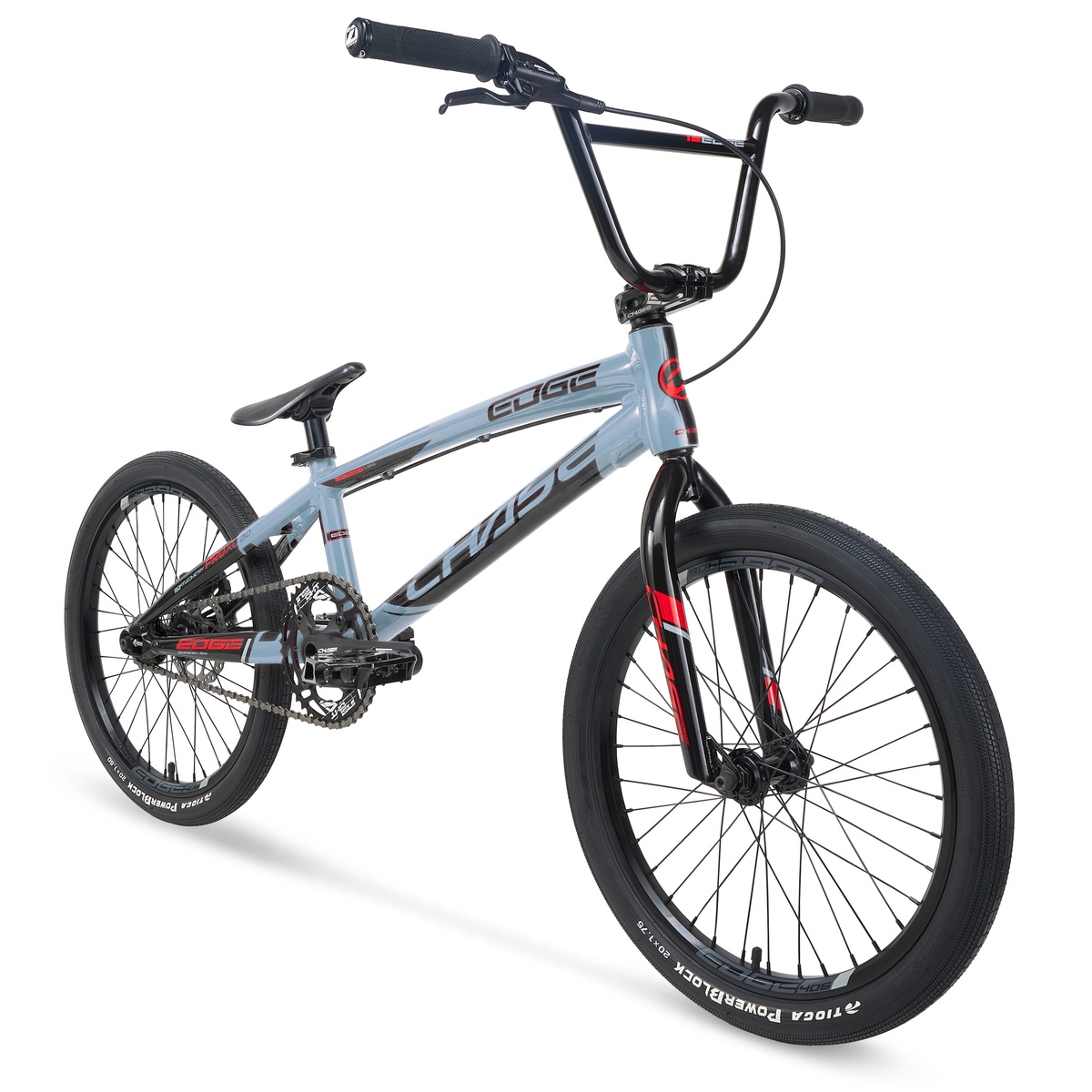

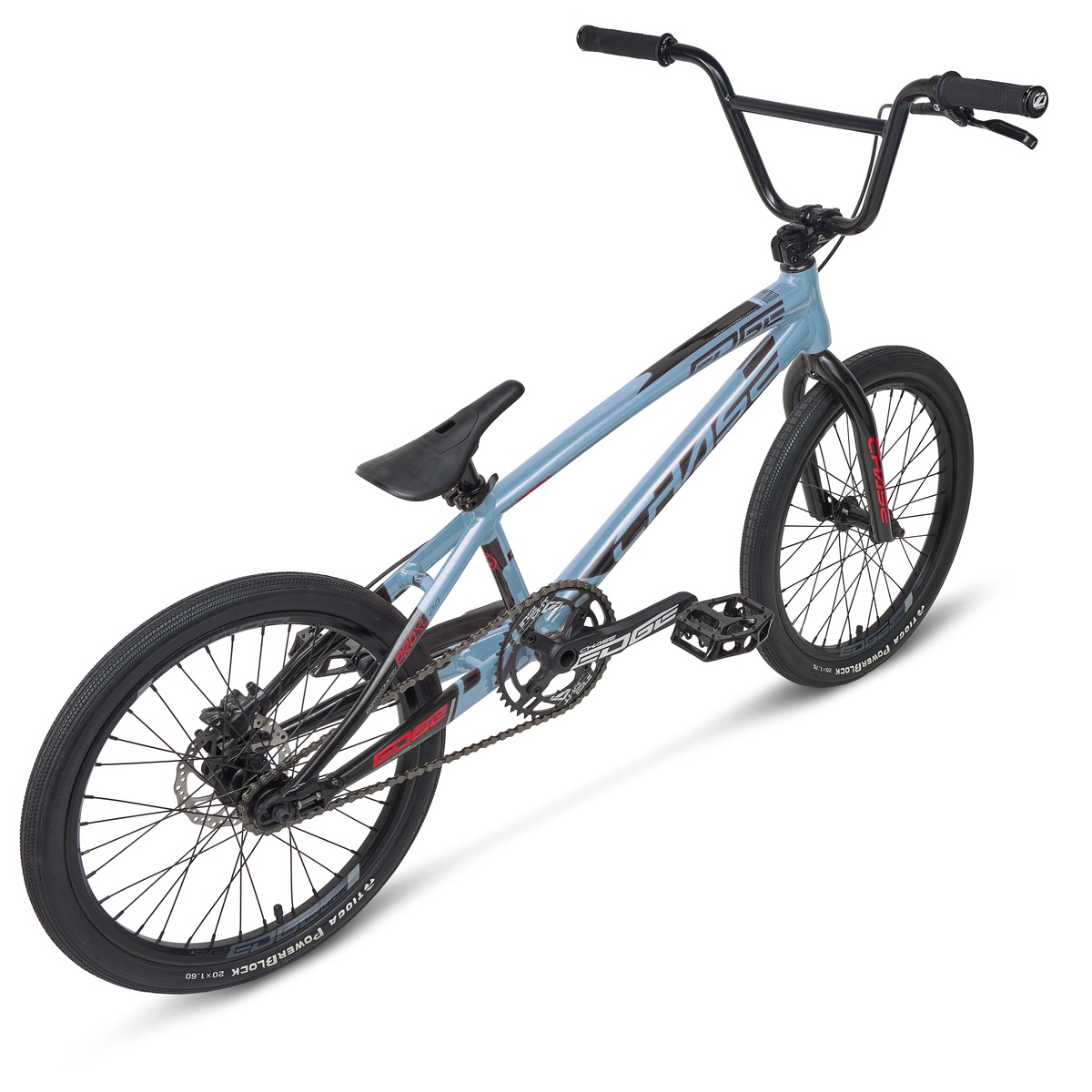

Size Pro XL:

FRAME	CHASE Edge Pro XL 21″ Top Tube, 6061 T6 Alloy, Integrated 1-1/8″ Head Tube, Enclosed rear dropouts and Chain tensioner system
FORK	CHASE Edge Pro Full Cr-mo, 1-1/8″ Steer Tube With Tapered Blades
HEADSET	Integrated IS 42/42 1-1/8″, Sealed Bearing
HANDLEBAR	CHASE Edge 22.2mm, 8.0″ Rise, 28″ Wide, 12° Back Sweep, 1° Up Sweep
GRIPS	INSIGHT C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug
STEM	CHASE Edge 50mm 6061 T6 Alloy Laser Etched Logo
BB	Euro External BSA 24mm Sealed Bearing
CHAINRING	INSIGHT 43 Tooth 4 Bolt 104mm 1/2″x3/32″ 5mm Alloy Ring
CRANK	CHASE Edge 2 Pieces 24mm Axle Crank 175mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts
PEDAL	Pro Platform 9/16″ Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing
CHAIN	KMC Z1 narrow 1/2″x3/32″
COG	16 Tooth
FRONT HUB	CHASE Edge Pro, 3/8″ Axle, 36H, Sealed Bearing
REAR HUB	CHASE Edge Pro ISO, 3/8″ Axle, 36H, Sealed Bearing, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets
SPOKES	Front 184mm, Rear 180/181mm, 14 Gauge, Steel
NIPPLES	16mm, 14 Gauge, Brass
FRONT RIM	CHASE Edge 175 Double Wall 36H 20″X1.75″ Schrader Valve
REAR RIM	CHASE Edge 175 Double Wall 36H 20″X1.75″ Schrader Valve
FRONT TIRE	TIOGA PowerBlock 20″x1.85″ Wire Bead
REAR TIRE	TIOGA PowerBlock 20″x1.60″ Wire Bead
TUBES	20″x1.50″-1.75″ Schrader Valve
BRAKES	Lever Shimano Disc Brake BL-MT200(R) Hydraulic, Adaptor 140mm Setup, With Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads And 140mm Rotor
SADDLE	CHASE Edge Pro Pivotal
SEAT POST	Pivotal 27.2x250mm Alloy
SEAT CLAMP	CHASE Edge QR Alloy 31.8mm
CHAIN TENSIONNER	Integrated Built-In With New Lock Disc Adaptor

Size Pro XXL:

FRAME	CHASE Edge Pro XXL 21.5″ Top Tube, 6061 T6 Alloy Triple Butted Hydroformed, Integrated Head Tube, Enclosed Rear Dropouts And Chain Tensioner System
FORK	CHASE Edge Pro Full Cr-mo, 1-1/8″ Steer Tube With Tapered Blades
HEADSET	Integrated IS 42/42 1-1/8″, Sealed Bearing
HANDLEBAR	CHASE Edge 22.2mm, 8.5″ Rise, 29″ Wide, 12° Back Sweep, 1° Up Sweep
GRIPS	INSIGHT C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug
STEM	CHASE Edge 50mm 6061 T6 Alloy Laser Etched Logo
BB	Euro External BSA 24mm Sealed Bearing
CHAINRING	INSIGHT 44 Tooth 4 Bolts 104mm 1/2″x3/32″ 5mm Alloy Ring
CRANK	Chase Edge 2 Pieces 24mm Axle Crank 175mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts
PEDAL	Pro Platform 9/16″ Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing
CHAIN	KMC Z1 narrow 1/2″x3/32″
COG	16 Tooth
FRONT HUB	CHASE Edge Pro, 3/8″ Axle, 36H, Sealed Bearing
REAR HUB	CHASE Edge Pro ISO, 3/8″ Axle, 36H, Sealed Bearing, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets
SPOKES	Front 184mm, Rear 180/181mm, 14 Gauge, Steel
NIPPLES	16mm, 14 Gauge, Brass
FRONT RIM	CHASE Edge 175 Double Wall 36H 20″X1.75″ Schrader Valve
REAR RIM	CHASE Edge 175 Double Wall 36H 20″X1.75″ Schrader Valve
FRONT TIRE	TIOGA PowerBlock 20″x1.85″ Wire Bead
REAR TIRE	TIOGA PowerBlock 20″x1.60″ Wire Bead
TUBES	20″x1.50″-1.75″ Schrader Valve
BRAKES	Lever Shimano Disc Brake BL-MT200(R) Hydraulic, Adaptor 140mm Setup, With Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads And 140mm Rotor
SADDLE	CHASE Edge Pro Pivotal
SEAT POST	Pivotal 27.2x250mm Alloy
SEAT CLAMP	CHASE Edge QR Alloy 31.8mm
CHAIN TENSIONNER	Integrated Built-In With New Lock Disc Adaptor

Size Pro Cruiser:

FRAME	CHASE Edge Pro Cruiser 21.5″ Top Tube, 6061 T6 Alloy Triple Butted Hydroformed, Integrated Head Tube, Enclosed Rear Dropouts And Chain Tensioner System
FORK	CHASE Edge Cruiser Full Cr-mo, 1-1/8″ Steer Tube With Tapered Blades
HEADSET	Integrated IS 42/42 1-1/8″, Sealed Bearing
HANDLEBAR	CHASE Edge Bar 5.75″ Rise, 11° Back Sweep & 2.5° Up Sweep
GRIPS	INSIGHT C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug
STEM	CHASE Edge 50mm 6061 T6 Alloy Laser Etched Logo
BB	Euro External BSA 24mm Sealed Bearing
CHAINRING	INSIGHT 41 Tooth 4 Bolts 104mm 1/2″x3/32″ 5mm Alloy Ring
CRANK	CHASE Edge 2 Pieces 24mm Axle Crank 175mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts
PEDAL	Pro Platform 9/16″ Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing
CHAIN	KMC Z1 narrow 1/2″x3/32″
COG	18 Tooth
FRONT HUB	CHASE Edge Pro, 3/8″ Axle, 36H, Sealed Bearing
REAR HUB	CHASE Edge ISO, 3/8″ Axle, 36H, Sealed Bearing, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets
SPOKES	Front 234mm, Rear 230/231mm, 14 Gauge, Steel
NIPPLES	16mm, 14 Gauge, Brass
FRONT RIM	CHASE Edge 175 Double Wall 36H 24″x1.75″ Schrader Valve
REAR RIM	CHASE Edge 175 Double Wall 36H 24″x1.75″ Schrader Valve
FRONT TIRE	TIOGA PowerBlock 24″x1.75″ Wire Bead
REAR TIRE	TIOGA PowerBlock 24″x1.60″ Wire Bead
TUBES	24”x1.5″-1.75″ Schrader Valve
BRAKES	Lever Shimano Disc Brake BL-MT200(R) Hydraulic, Adaptor 140mm Setup, With Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads And 140mm Rotor
SADDLE	CHASE Edge Pro Pivotal
SEAT POST	Pivotal 27.2x250mm Alloy
SEAT CLAMP	CHASE Edge QR Alloy 31.8mm
CHAIN TENSIONNER	Integrated Built-In With New Lock Disc Adaptor

Aanvullende informatie

Maat	Mini, Expert, Junior, Expert XL, Pro XL, Pro XXL, Pro XXXL, Micro, Pro, Cruiser Pro

Chase Edge BMX Bike 2026 | Slate / Black

Beschrijving

Chase Edge BMX Bike 2026 | Slate / Black

Geometry / Sizing:

Features

Size Micro:

Size Mini:

Size Junior:

Size Expert:

Size Expert XL:

Size Pro:

Size Pro XL:

Size Pro XXL:

Size Pro Cruiser:

Aanvullende informatie

Gerelateerde producten

Meybo Clipper 2026 BMX Bike Black /Green /White

Meybo 2024 Clipper Bike Matte Grey/Matte Black/Matte Dark Grey

Inspyre Evo BMX Bike 2026 | Black
