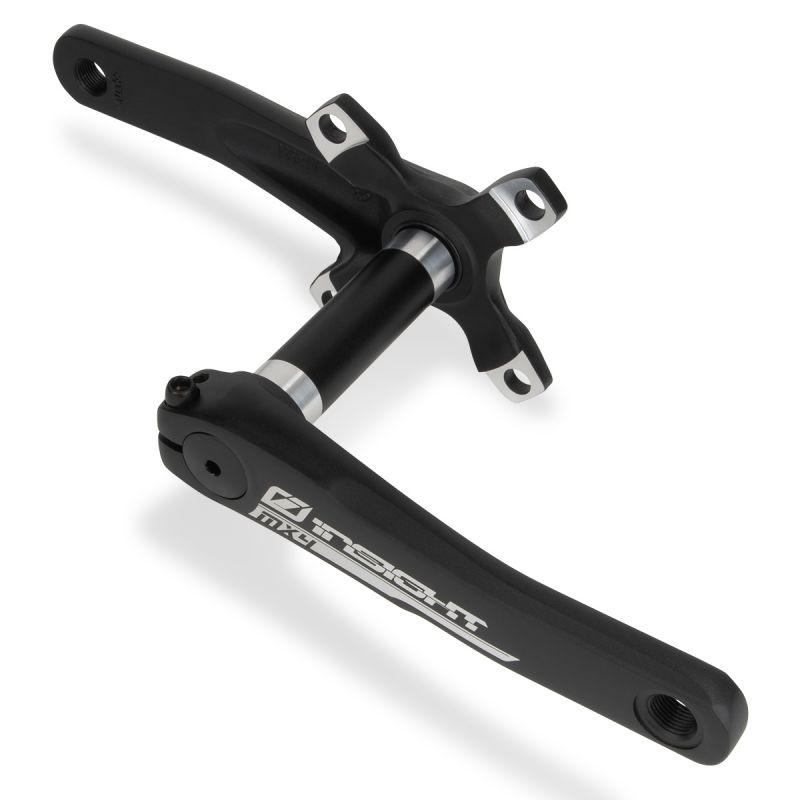

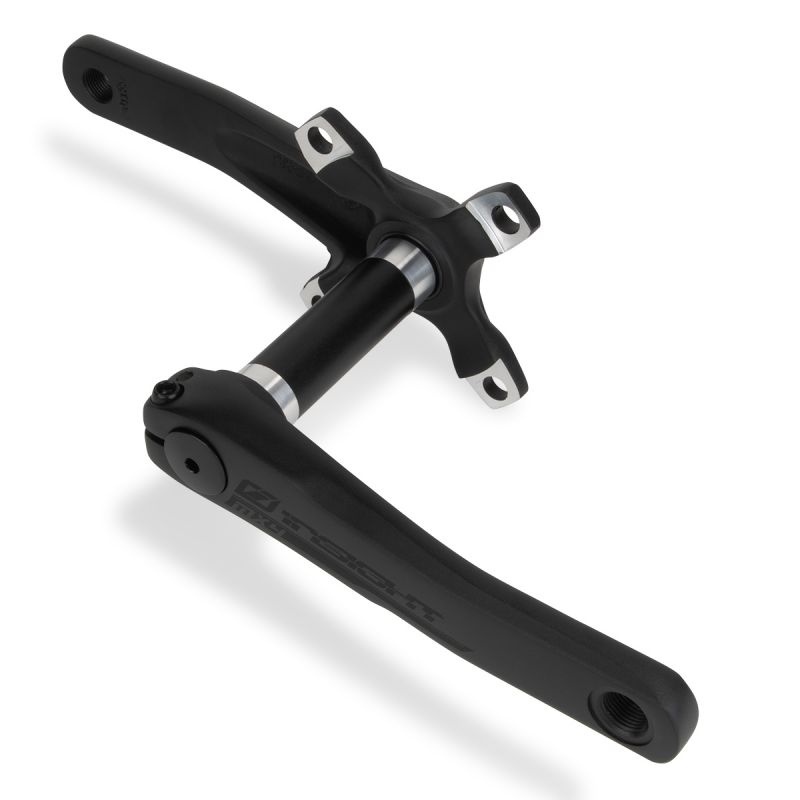

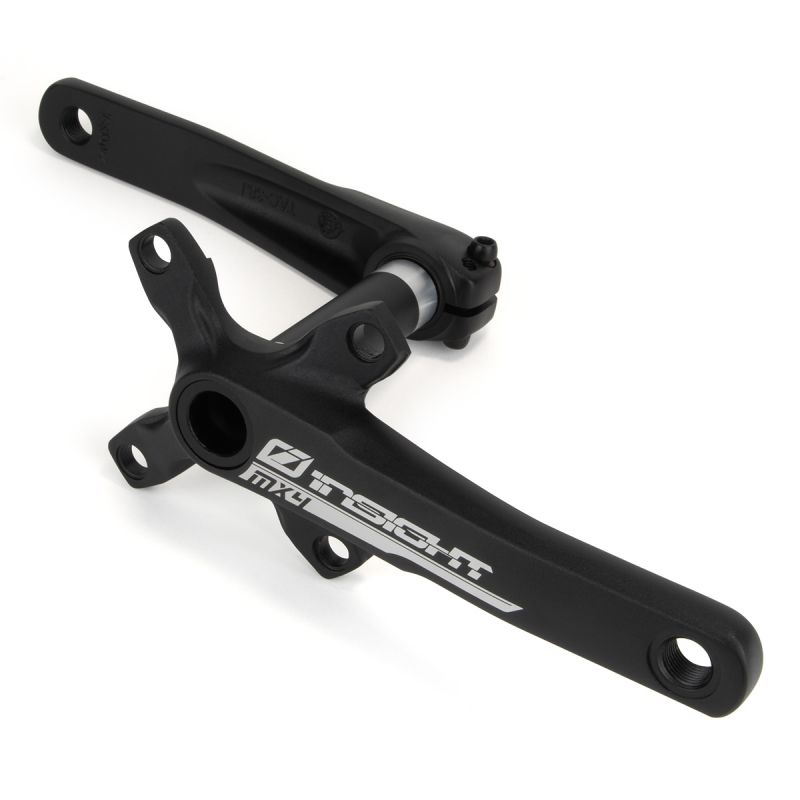

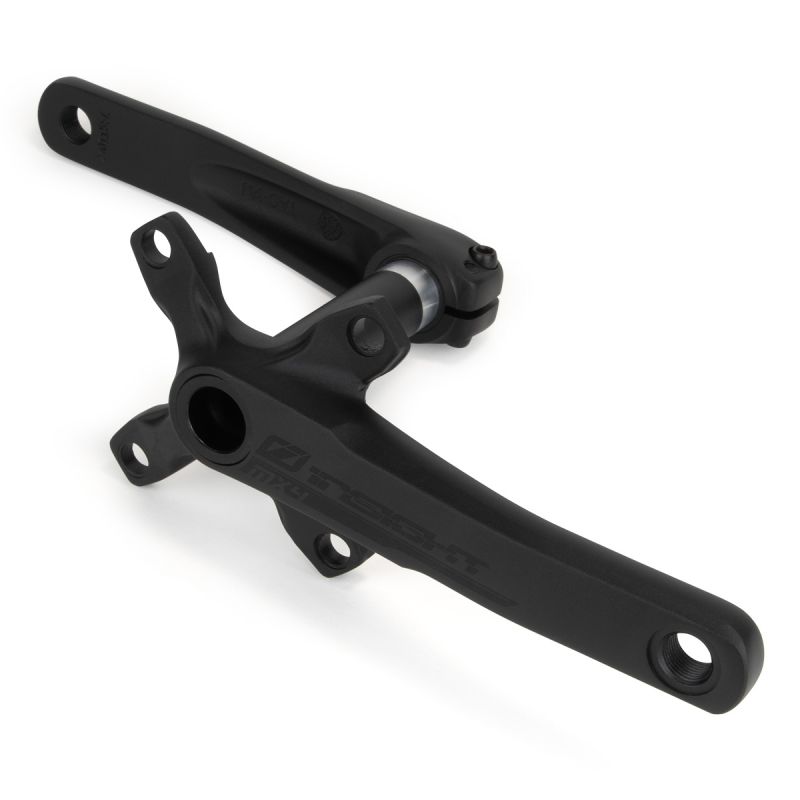

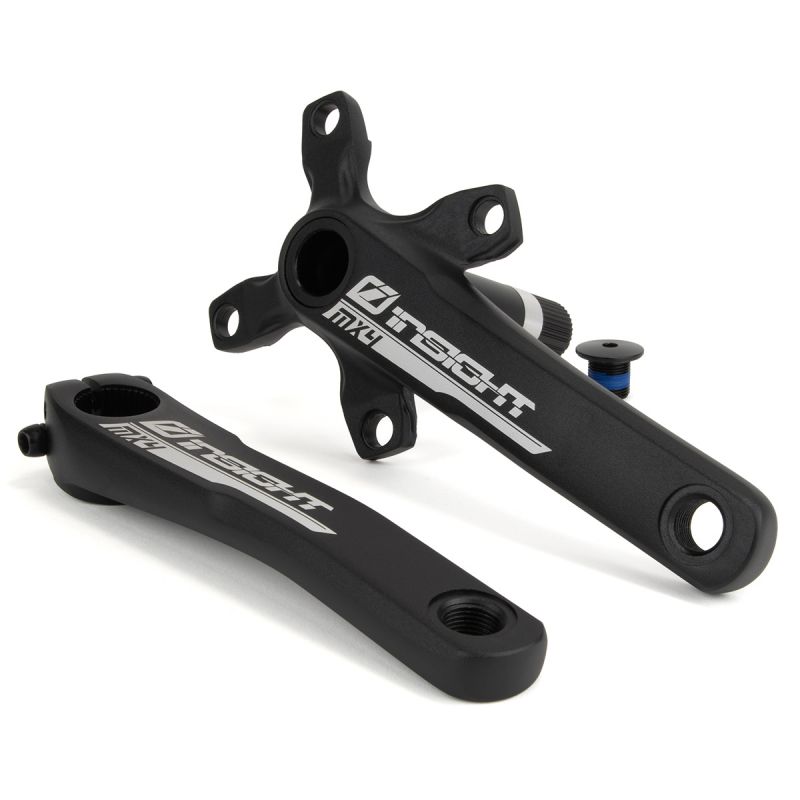

Insight MX4 crankset
INSIGHT MX4 2-piece BMX Racing crankset with splined aluminum axle .
Brand new for young BMX racers, an ultralight 2-piece crankset featuring a 4-bolt mounting arm and a 24mm splined aluminum axle that presses into the crank arm. The non-drive side has a double-pinch bolt design to keep the cranks tight and operate smoothly, all the way to the podium!
Designed for young riders who need a solid crankset setup and want to upgrade to a 2-piece crankset with a 24mm axle and 4-bolt crown race, but need a shorter crank arm length.
With the lightweight alloy splined axle and a lighter 4-bolt crown mount (not included), you can really reduce the weight of your racing bike!
Crankset characteristics
- Forged 6061-T6 aluminum cranks

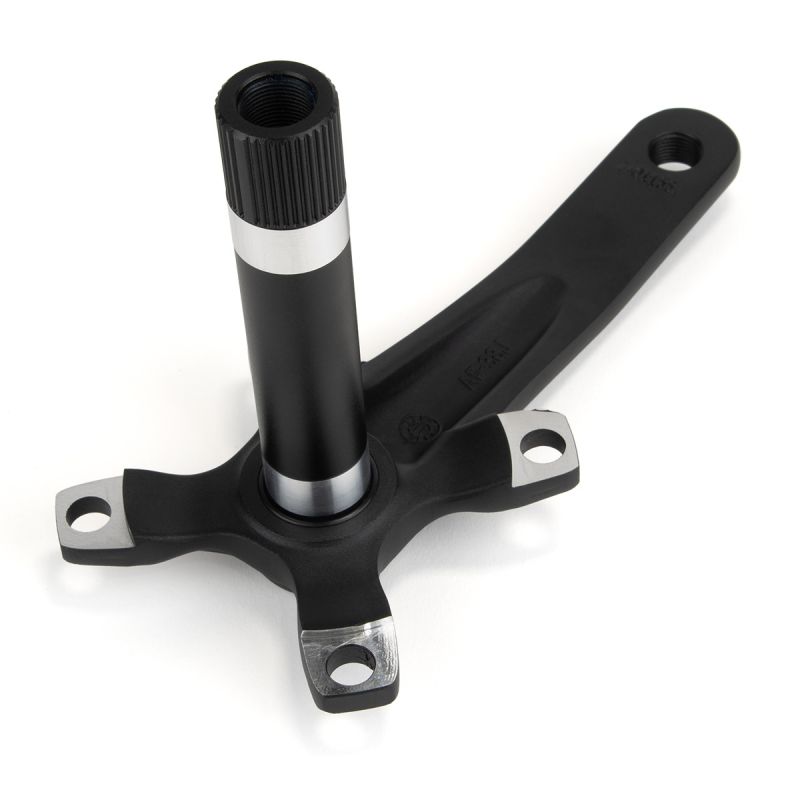

- 24mm splined shaft made of 7075-T6 aluminum that is press-fitted into the drive side; the non-drive side has double-clamping screws.
- 4-point BCD fixing, 104mm diameter
- 6 size options: 140, 145, 152, 155, 160 and 165 mm
- Bottom bracket not included – Use with a 24mm axle bottom bracket, Press Fit or Euro.
- Q factor 160 mm

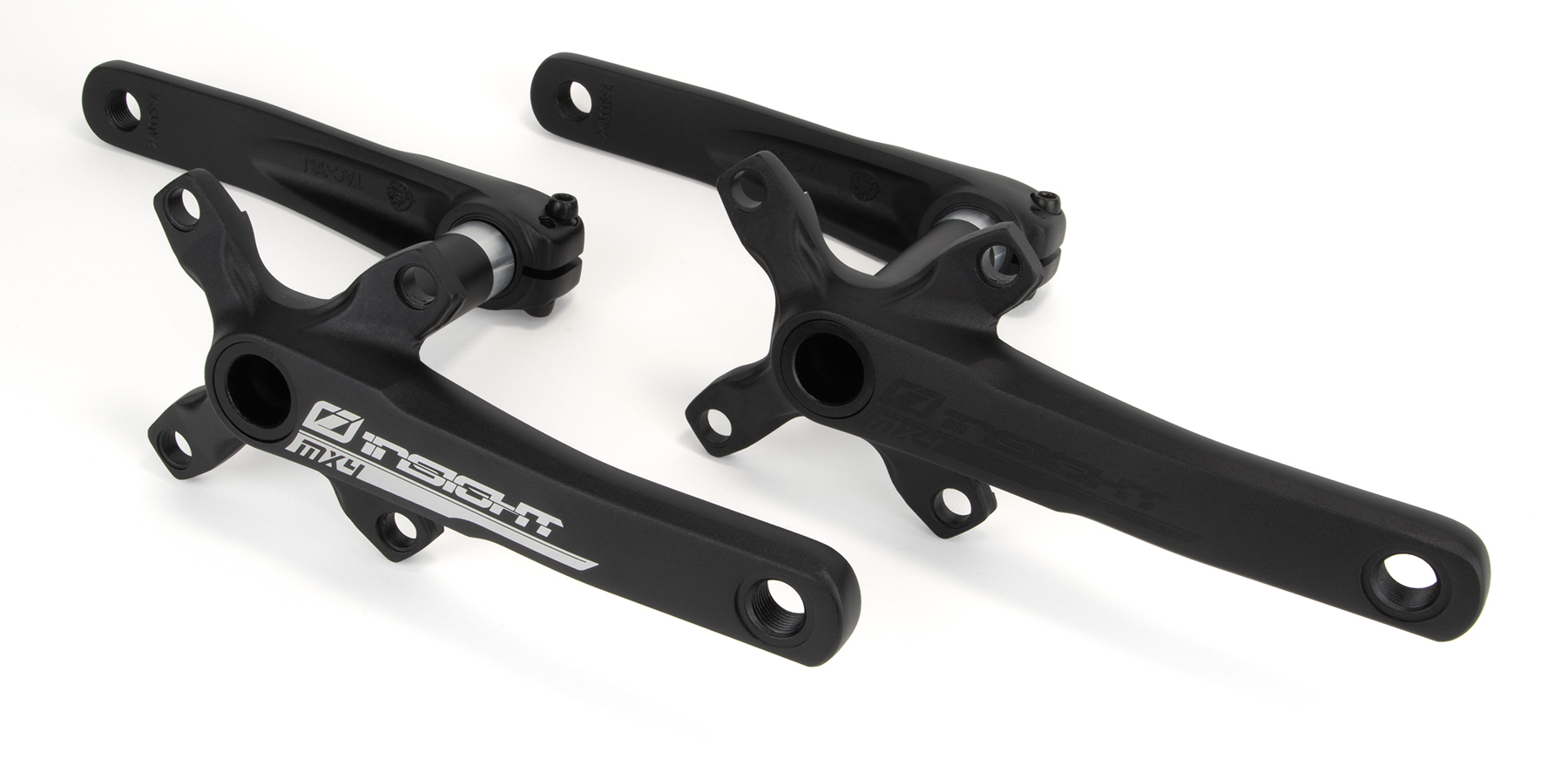

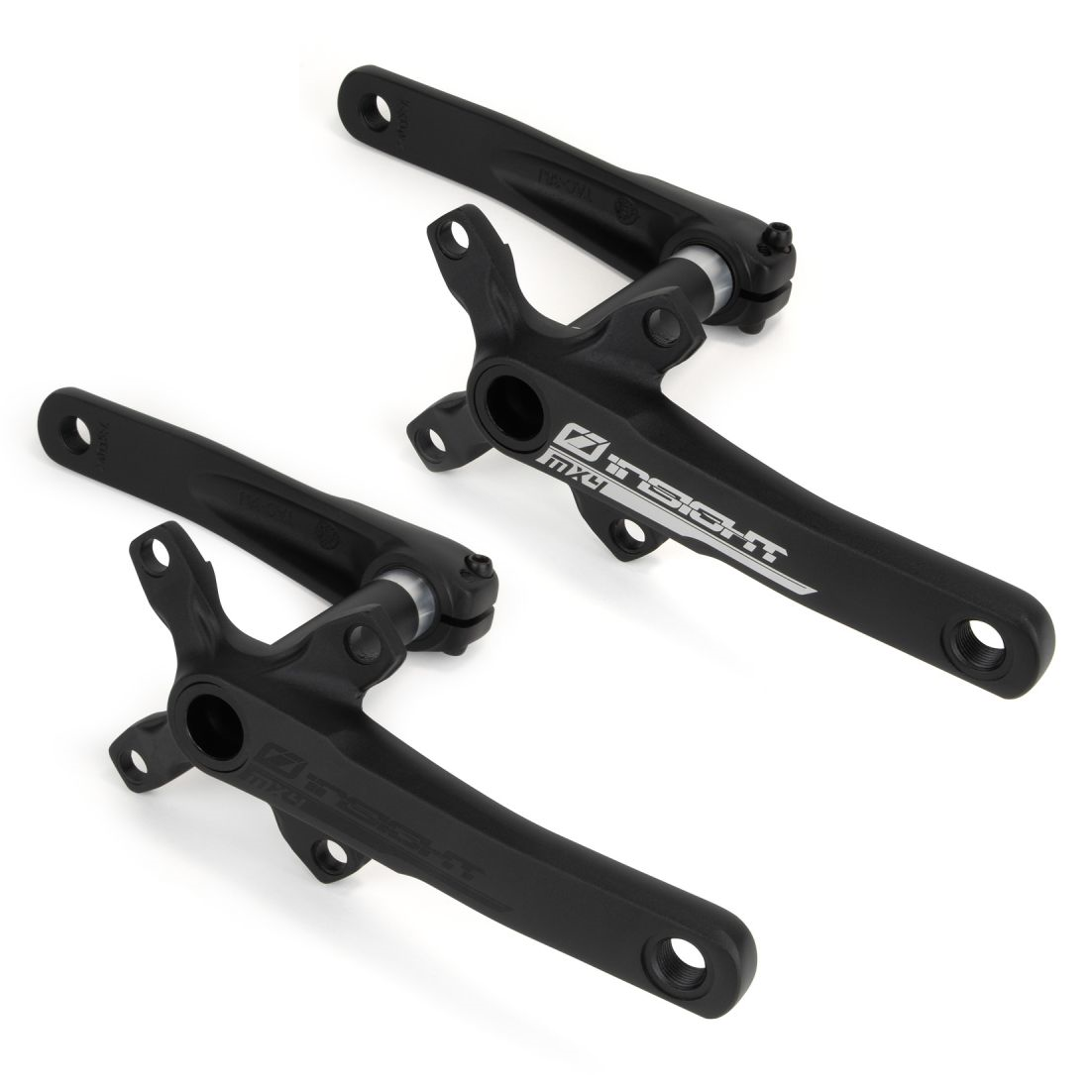

2 color options
- Black with black laser-engraved graphics
- Black with laser-engraved silver graphics
Weight
- 140mm: 550g
- 152mm: 568g
- 155mm: 573g
- 160mm: 585g
- 165mm: 593g
Rider weight limit: 65kg
