Beschrijving

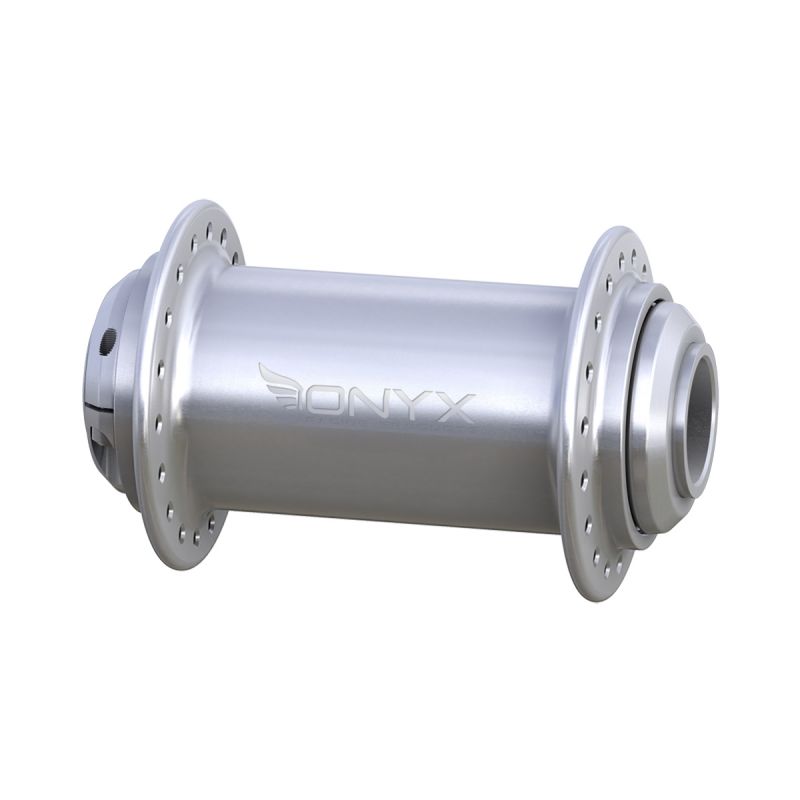

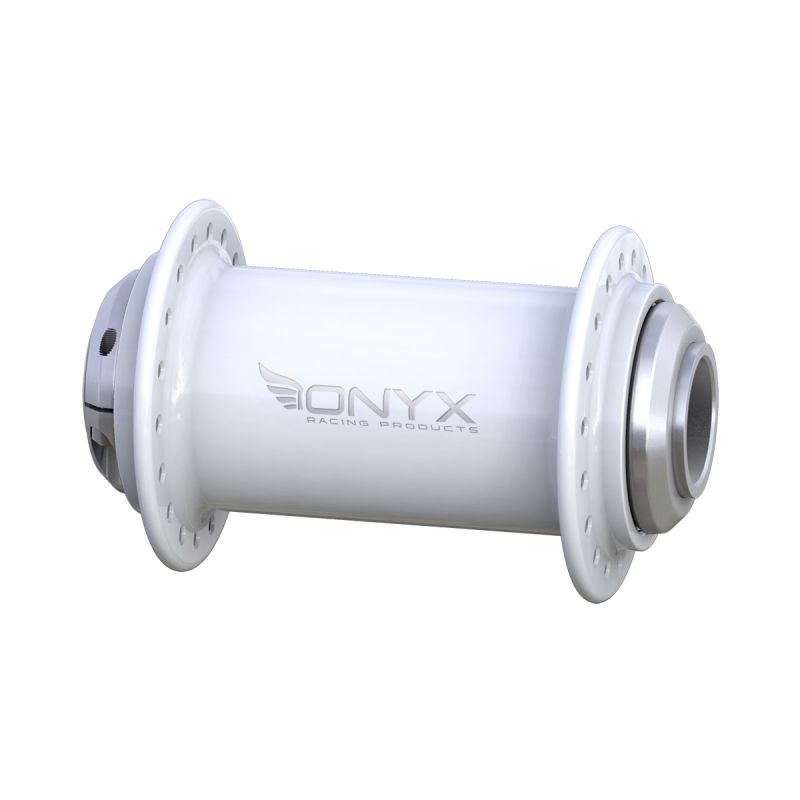

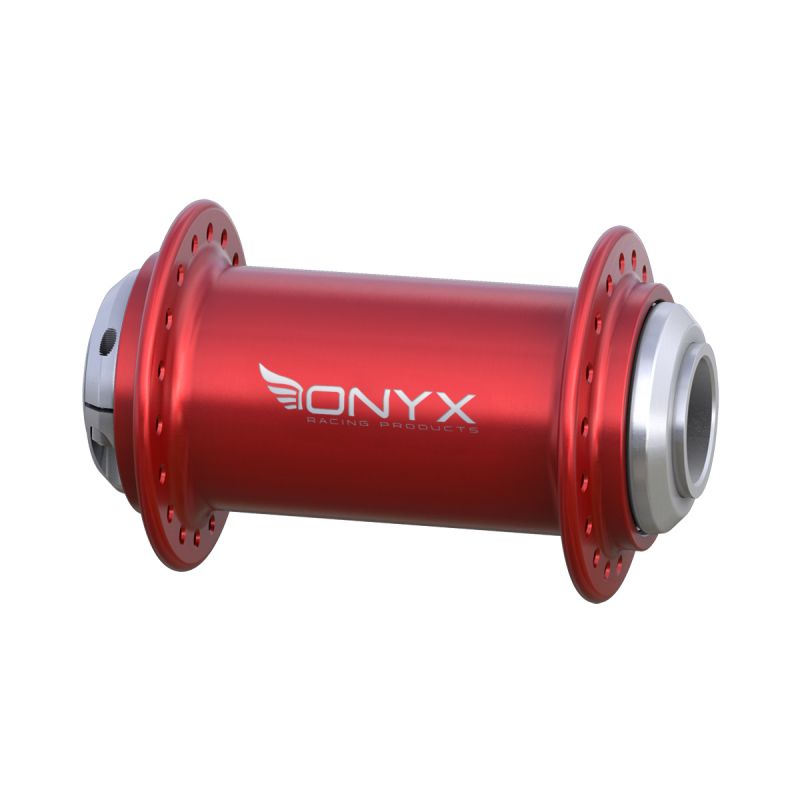

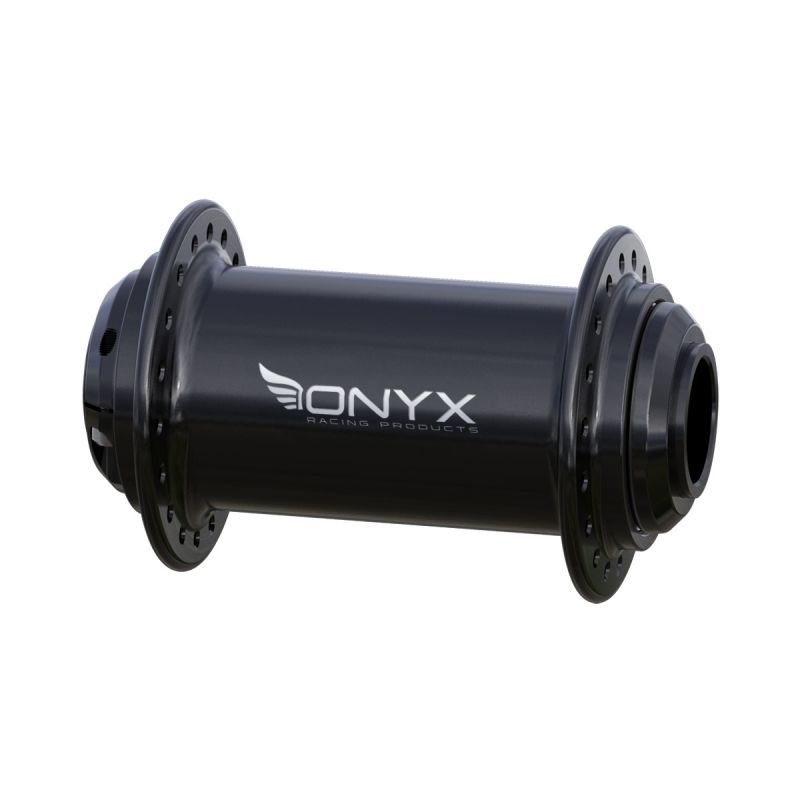

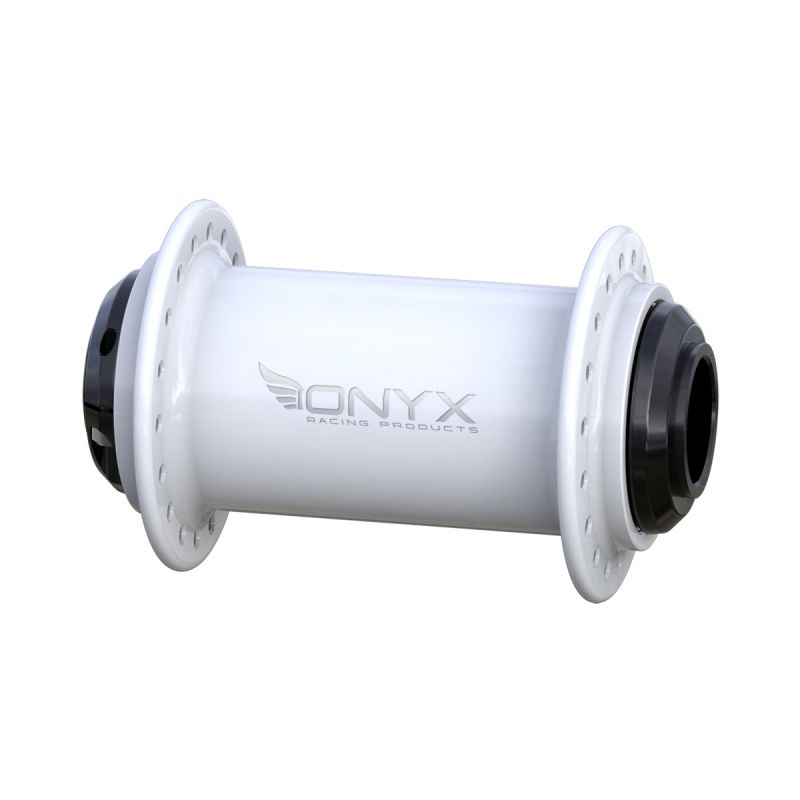

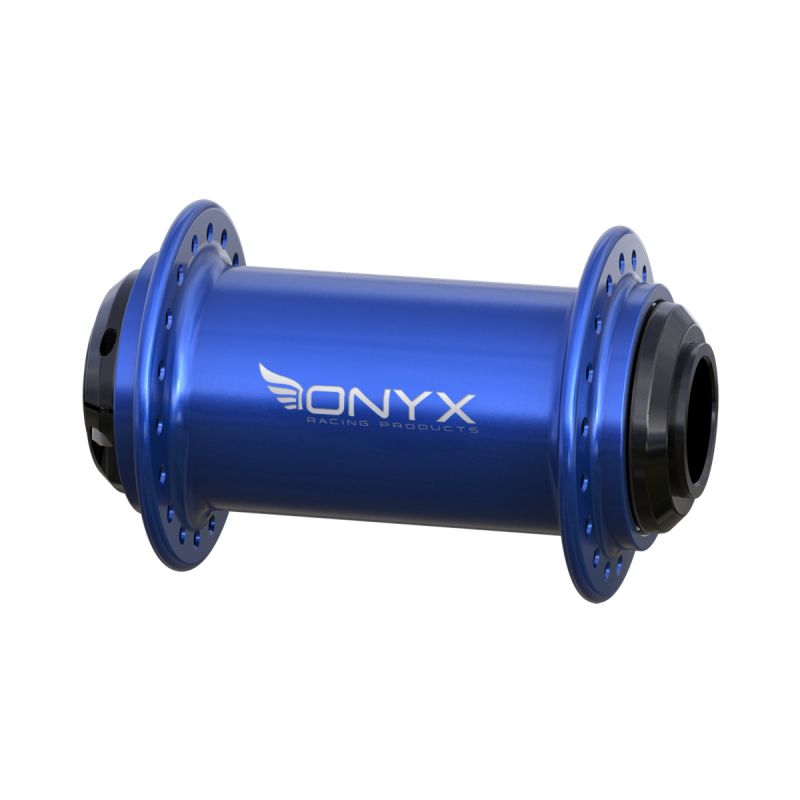

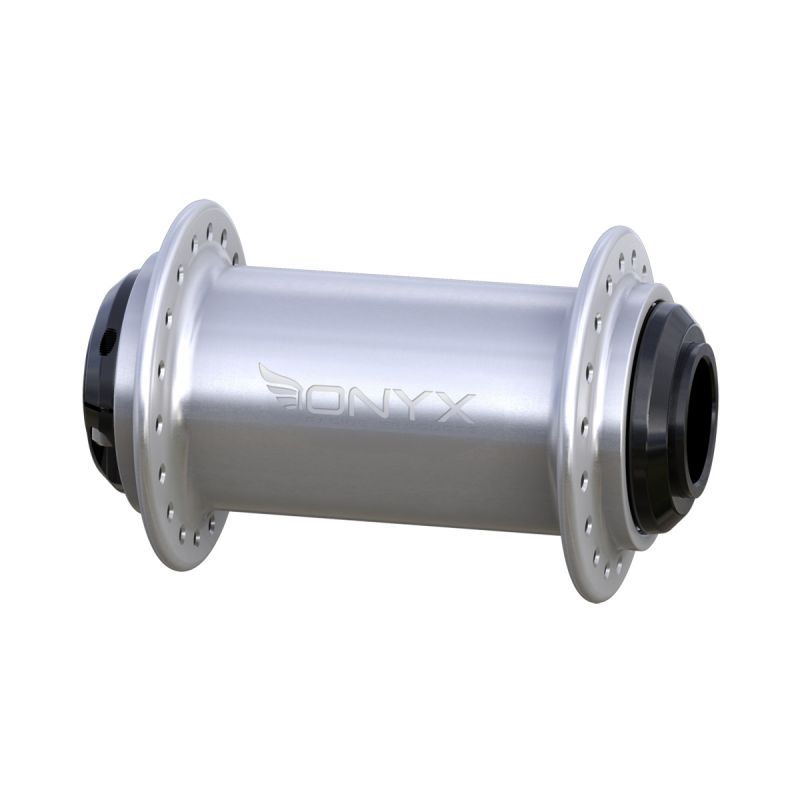

ONYX Solid 20mm front hub 36H
Intended for riders riding with a 20mm axle diameter fork, the ONYX Solid front hub offers BMX riders the famous quality of ONYX products made in the USA: high-end machined aluminum and hybrid-ceramic bearings which have a very low coefficient. friction and excellent power transfer.
FEATURES :
• CNC machined 7075-T6 aluminum body
• Sealed hybrid-ceramic bearings
• Aluminum axle body
• Axle diameter: 20mm thru
• Width: 100mm
• Drilling: 36 holes
• Weight: 252g

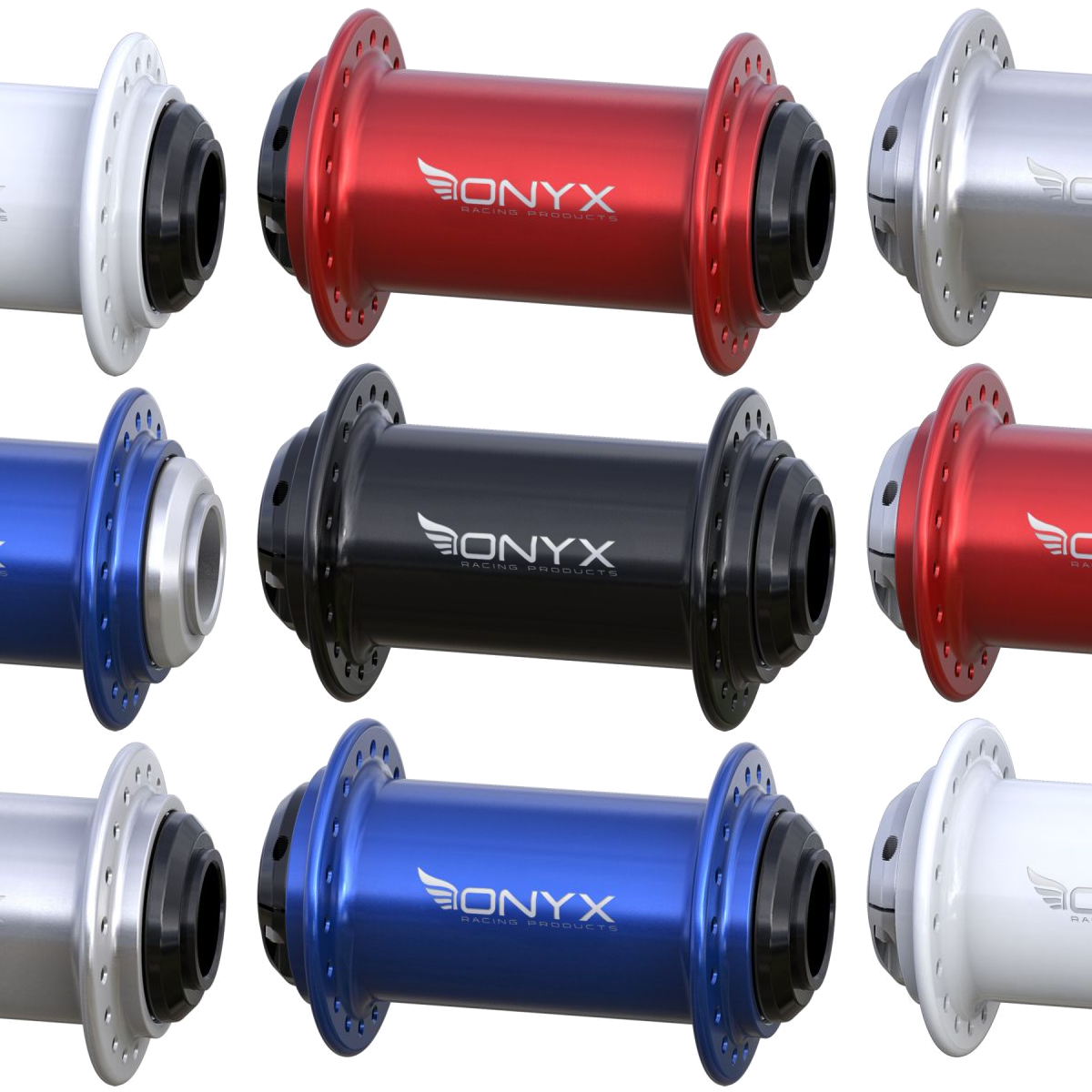

NOTE: color shade may vary slightly depending on production run
ONYX hubs require regular maintenance to maintain fully operational

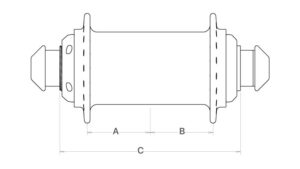

| A – Hub Center To Flange Center, Non-Drive Side | 34.8mm |
|---|---|
| B – Hub Center To Flange Center, Drive Side | 34.8mm |
| C – Axle Width | 100mm |
| Spoke Hole Circle Diameter, Drive Side | 50mm |
| Spoke Hole Circle Diameter, Non-Drive Side | 50mm |
| Spoke Hole Counts | 36 |
| Spoke Tension | 120kgf Max |
