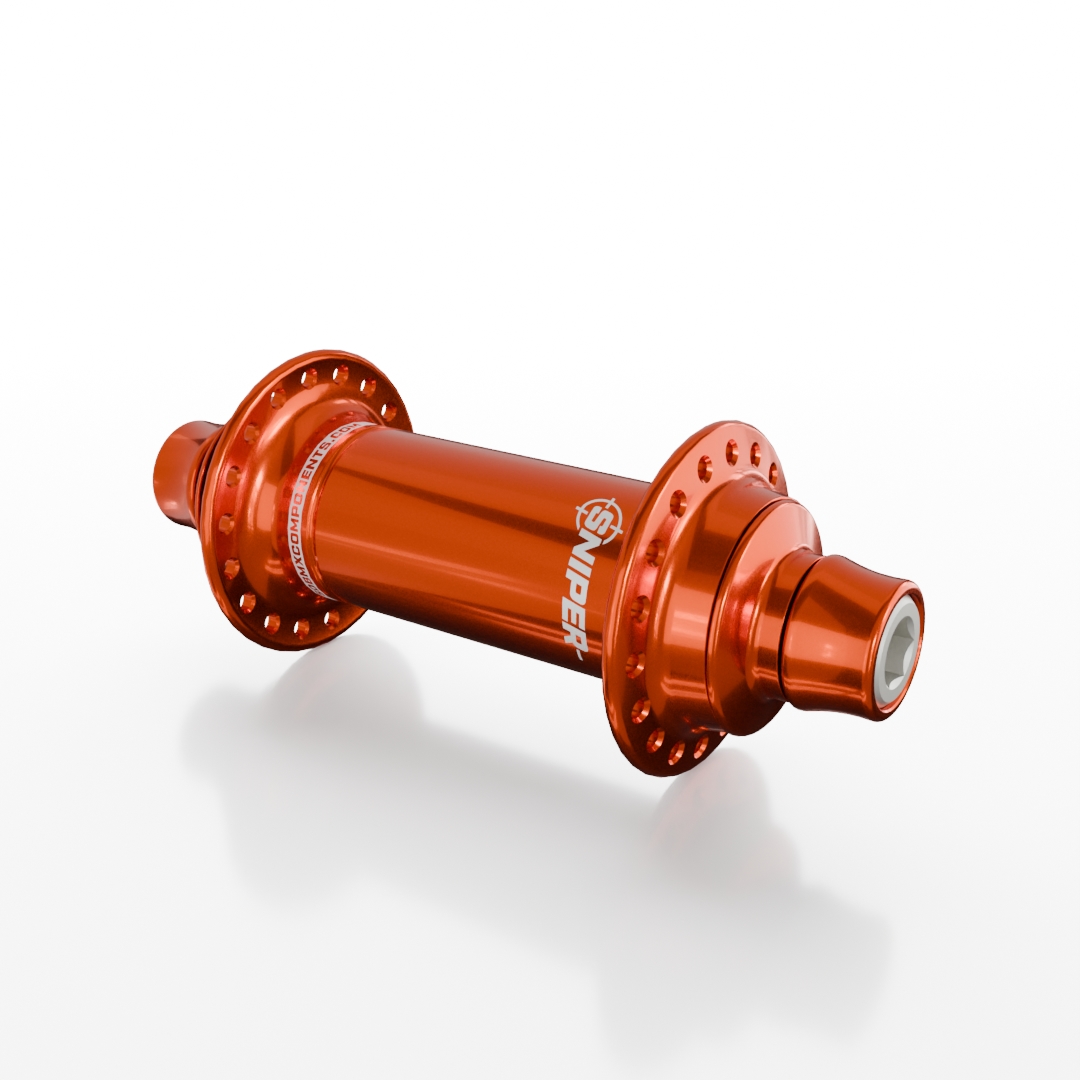

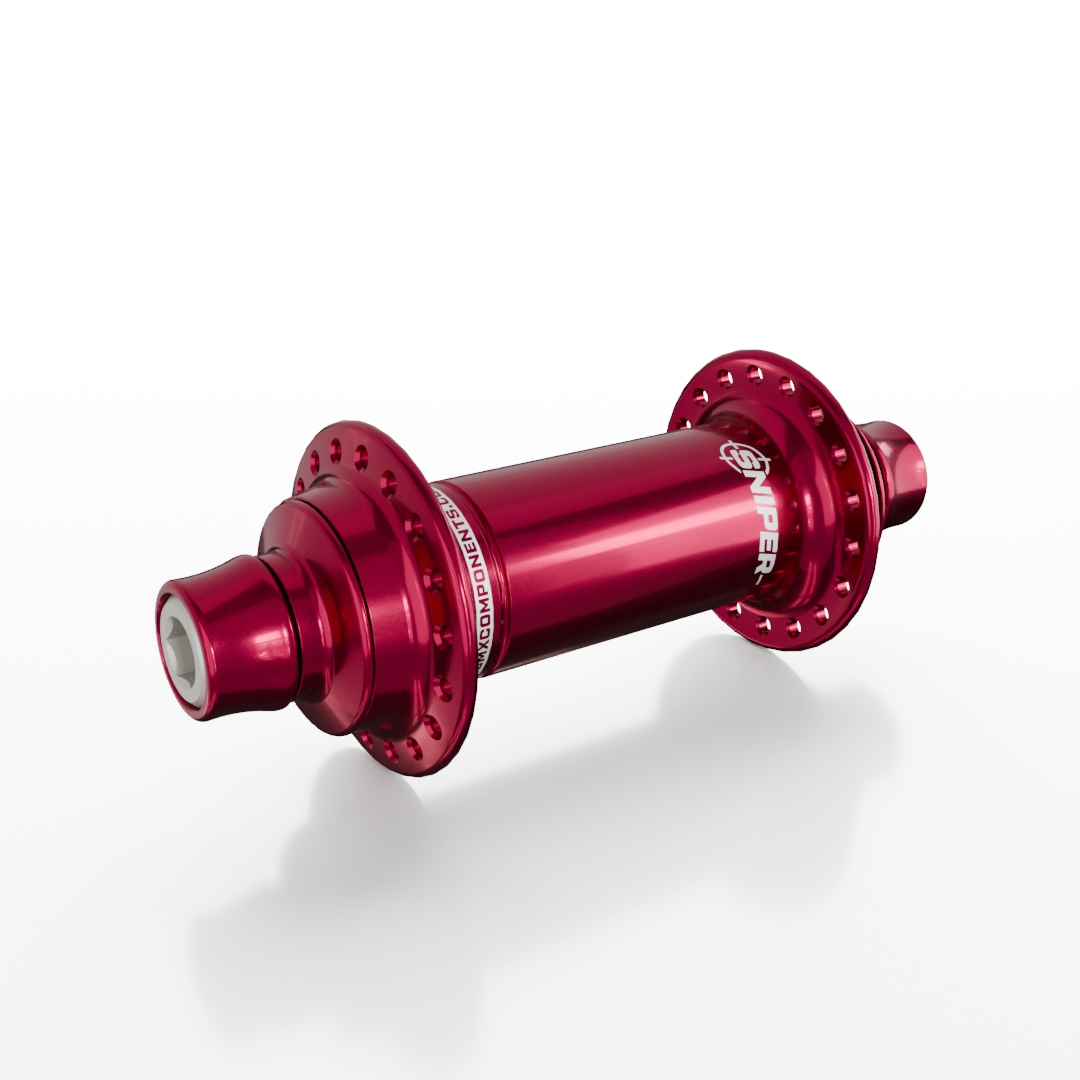

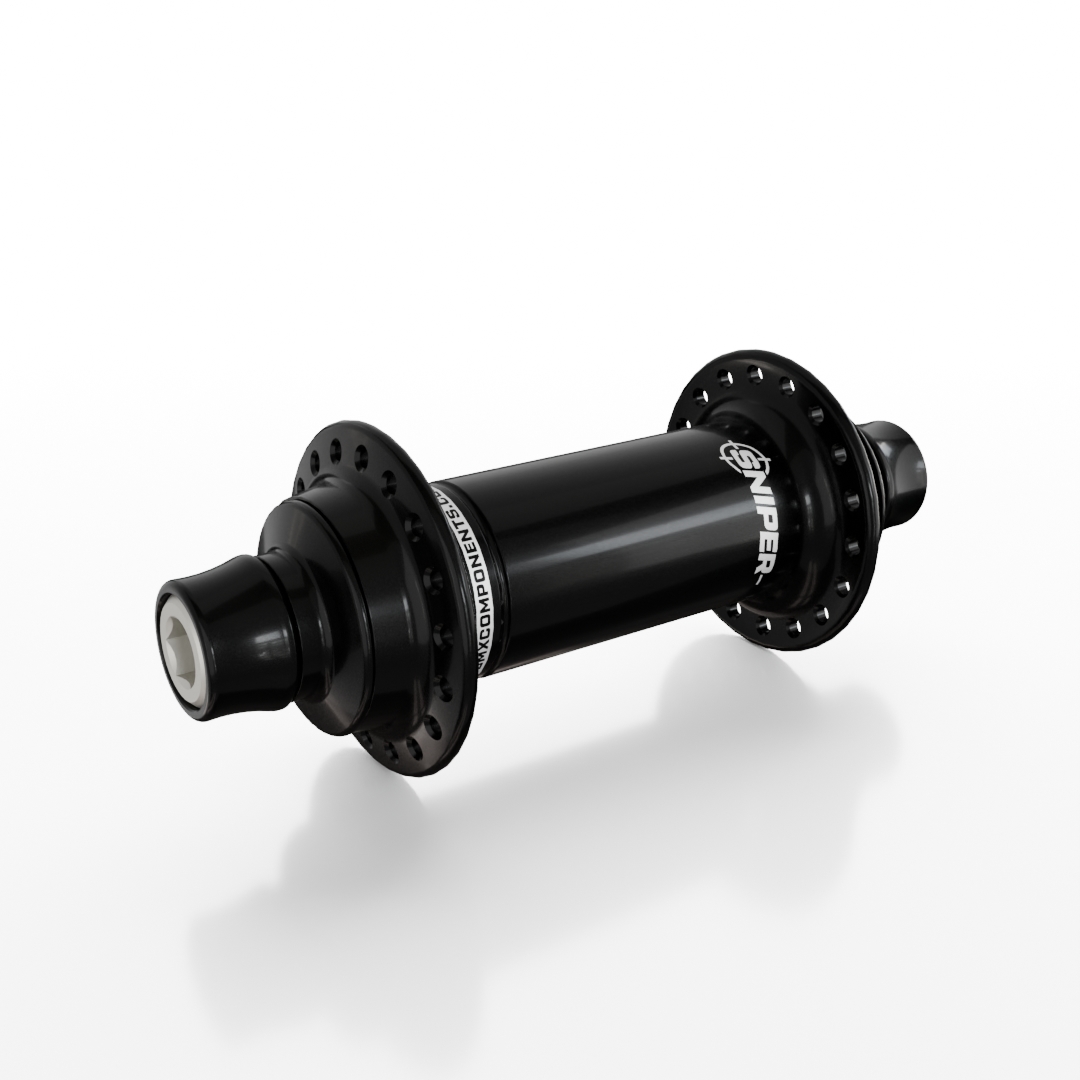

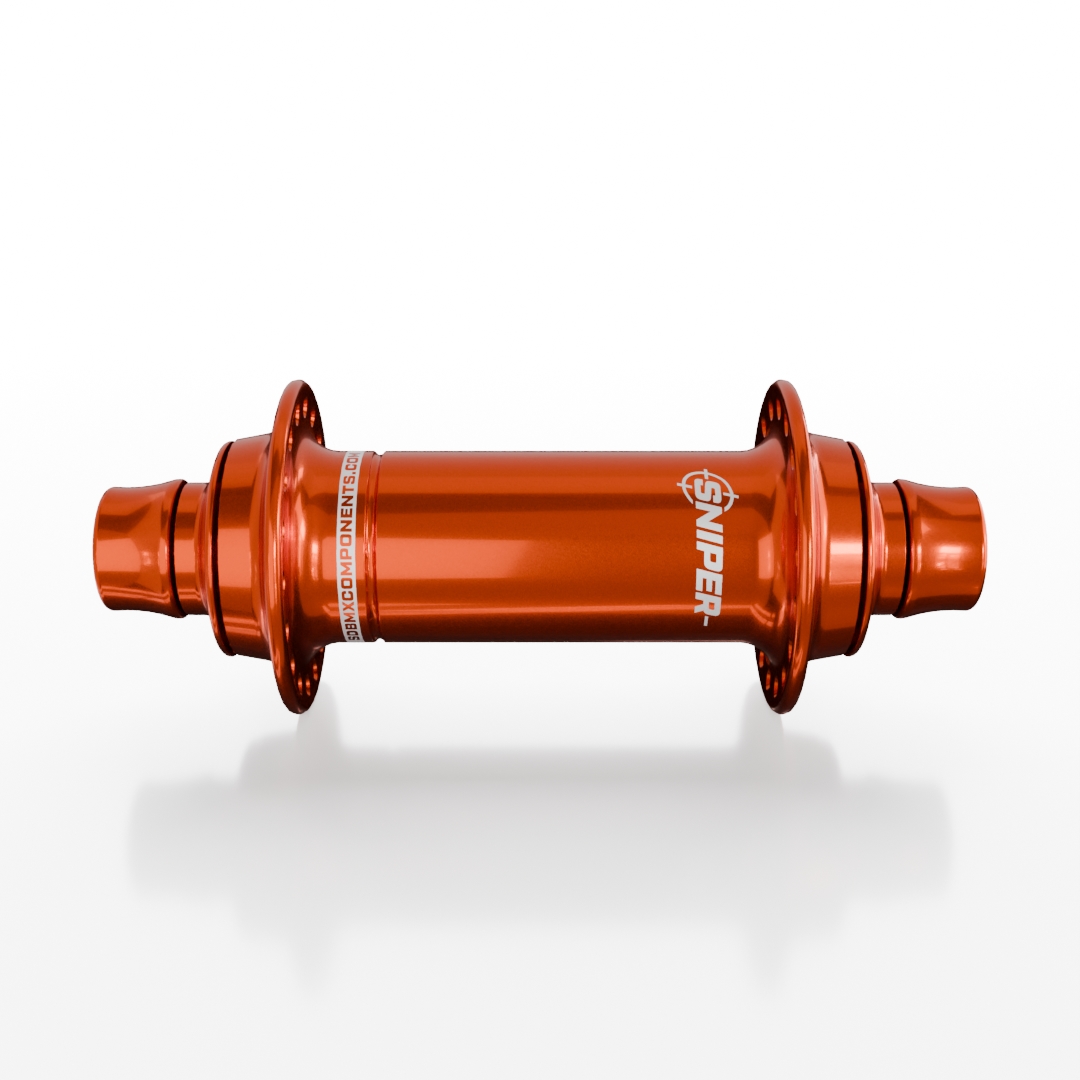

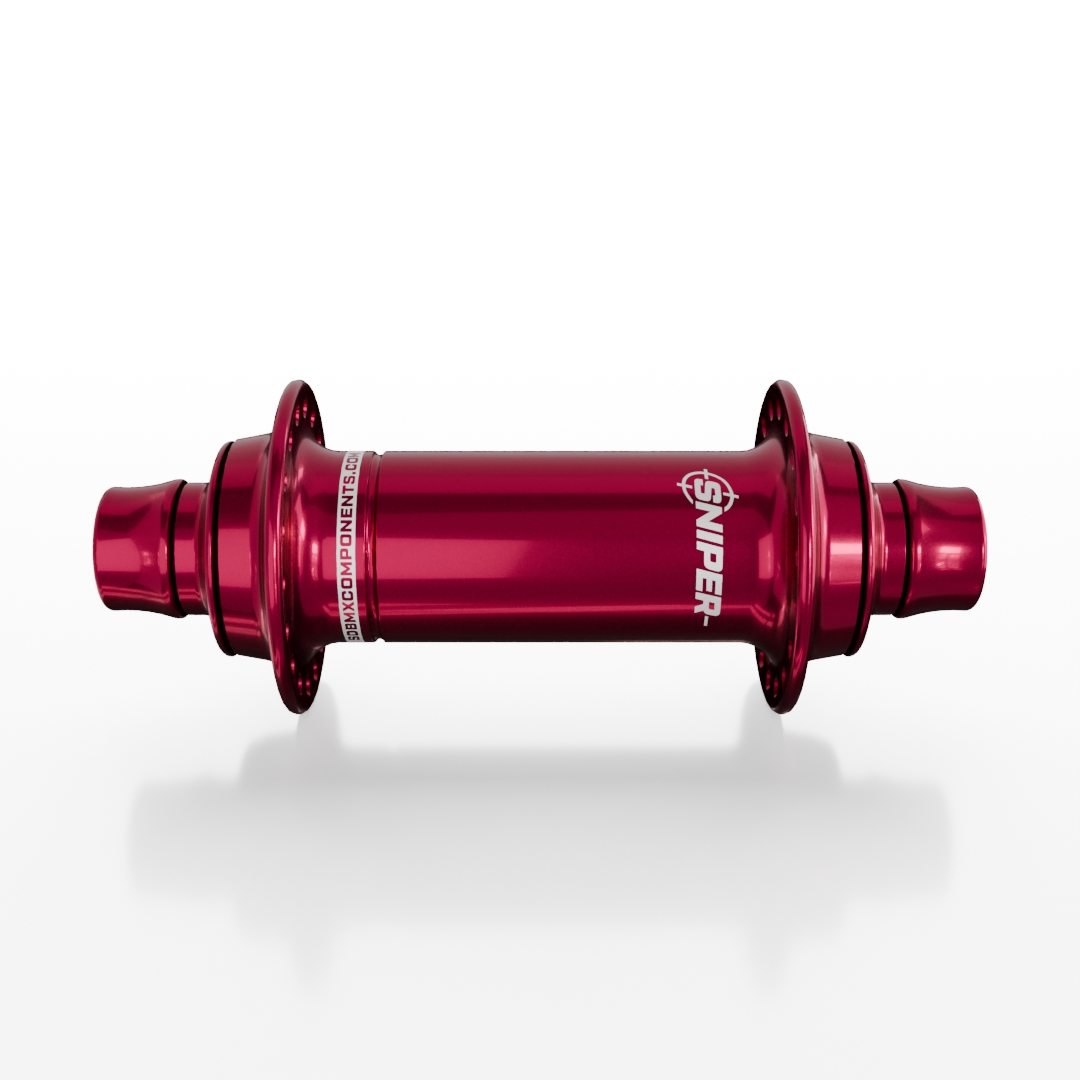

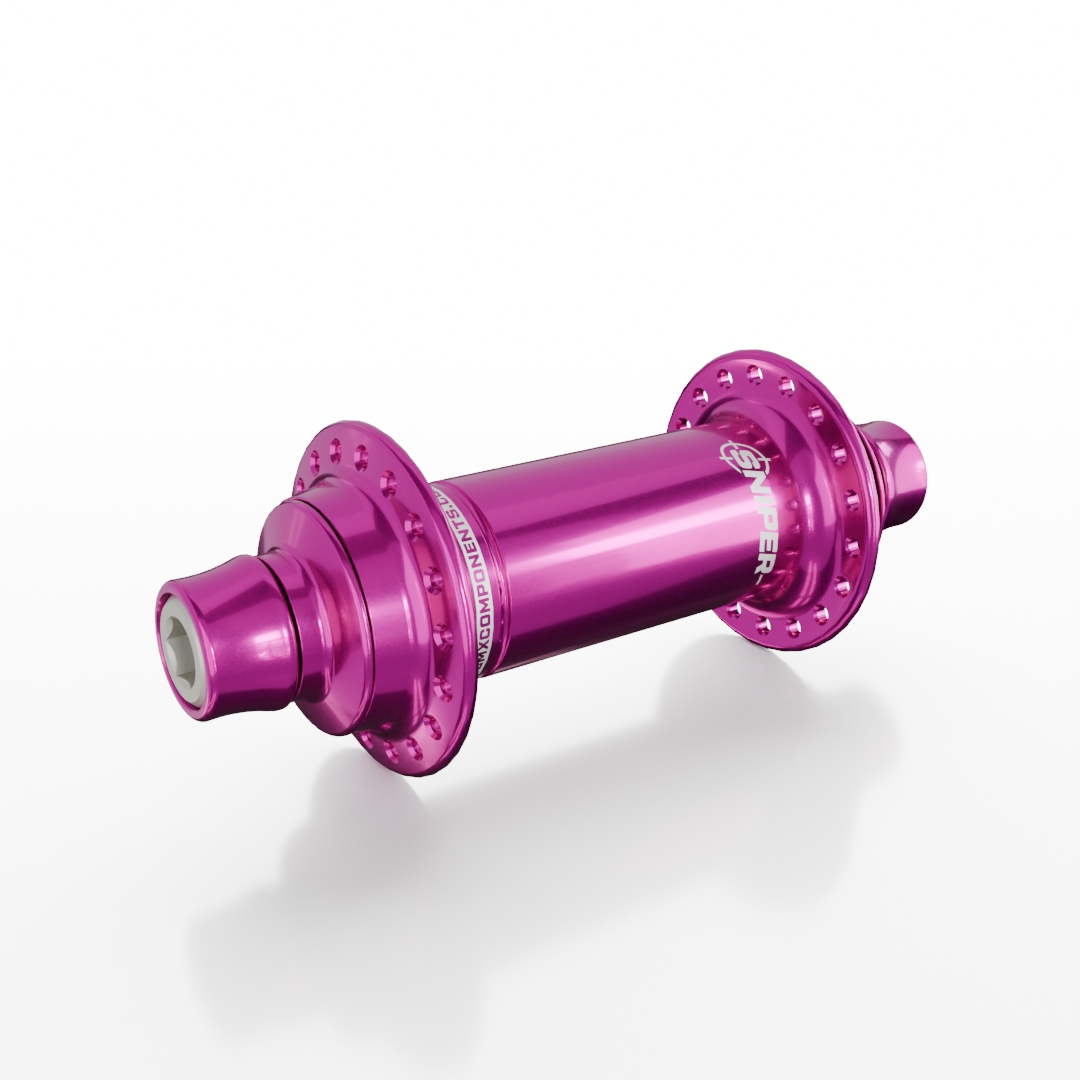

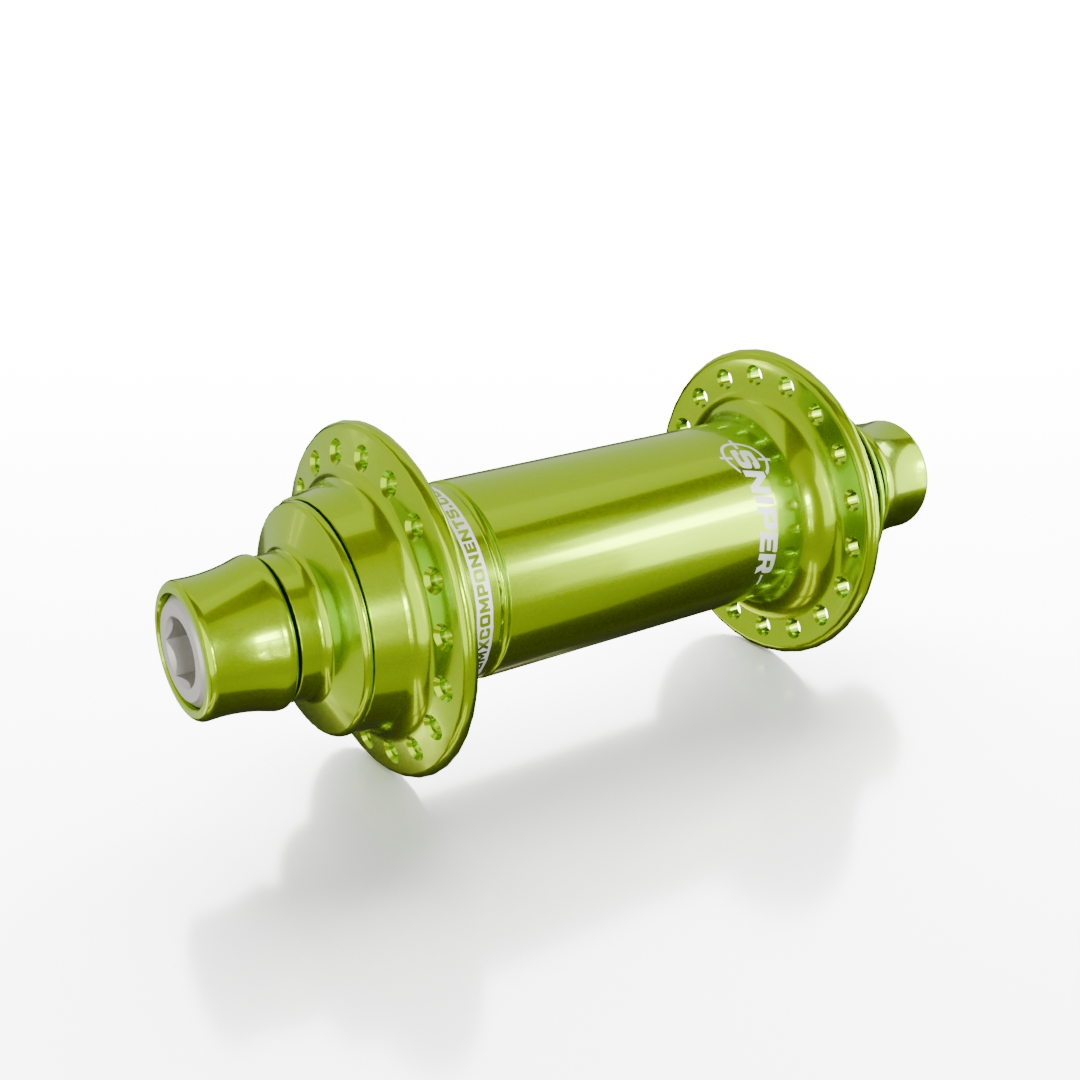

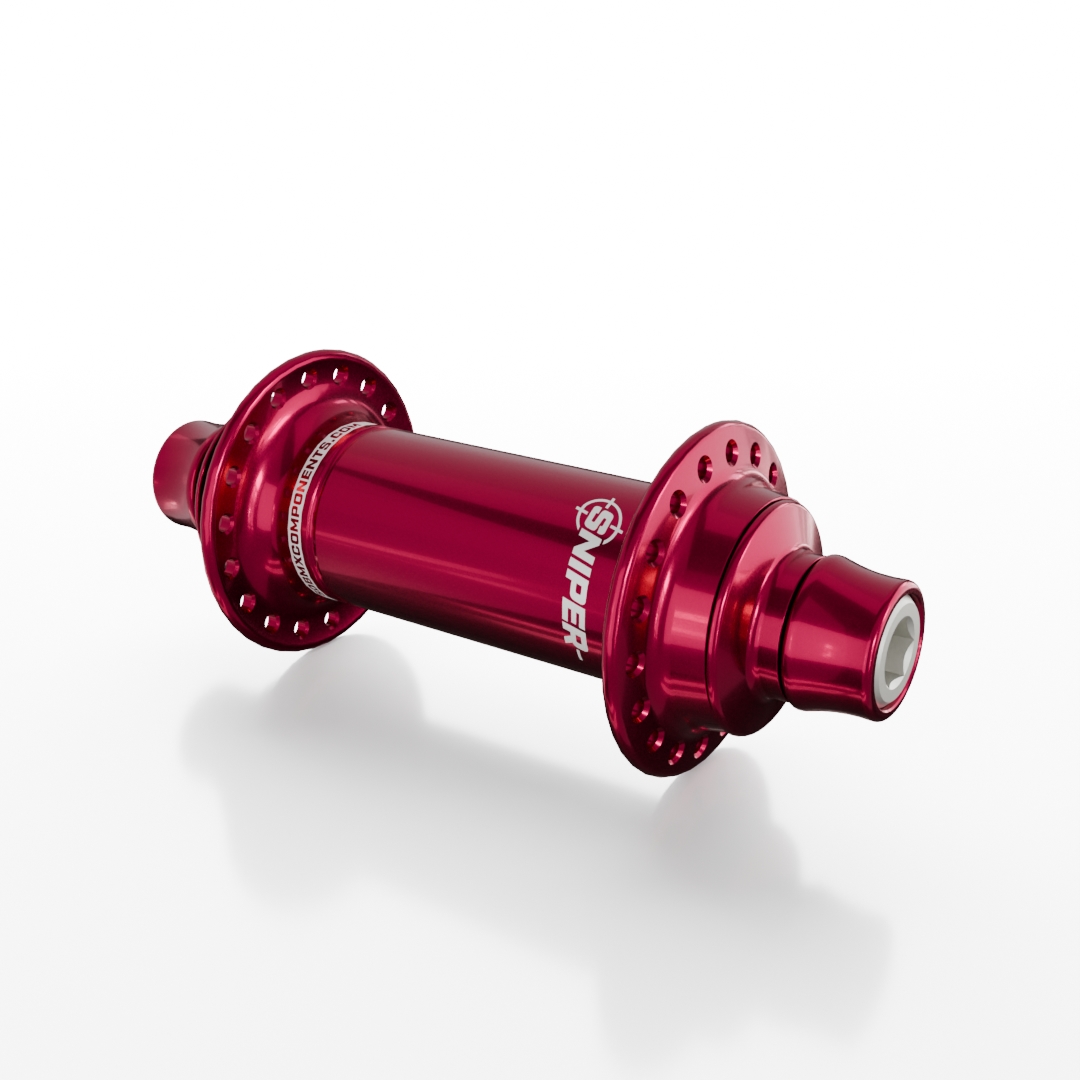

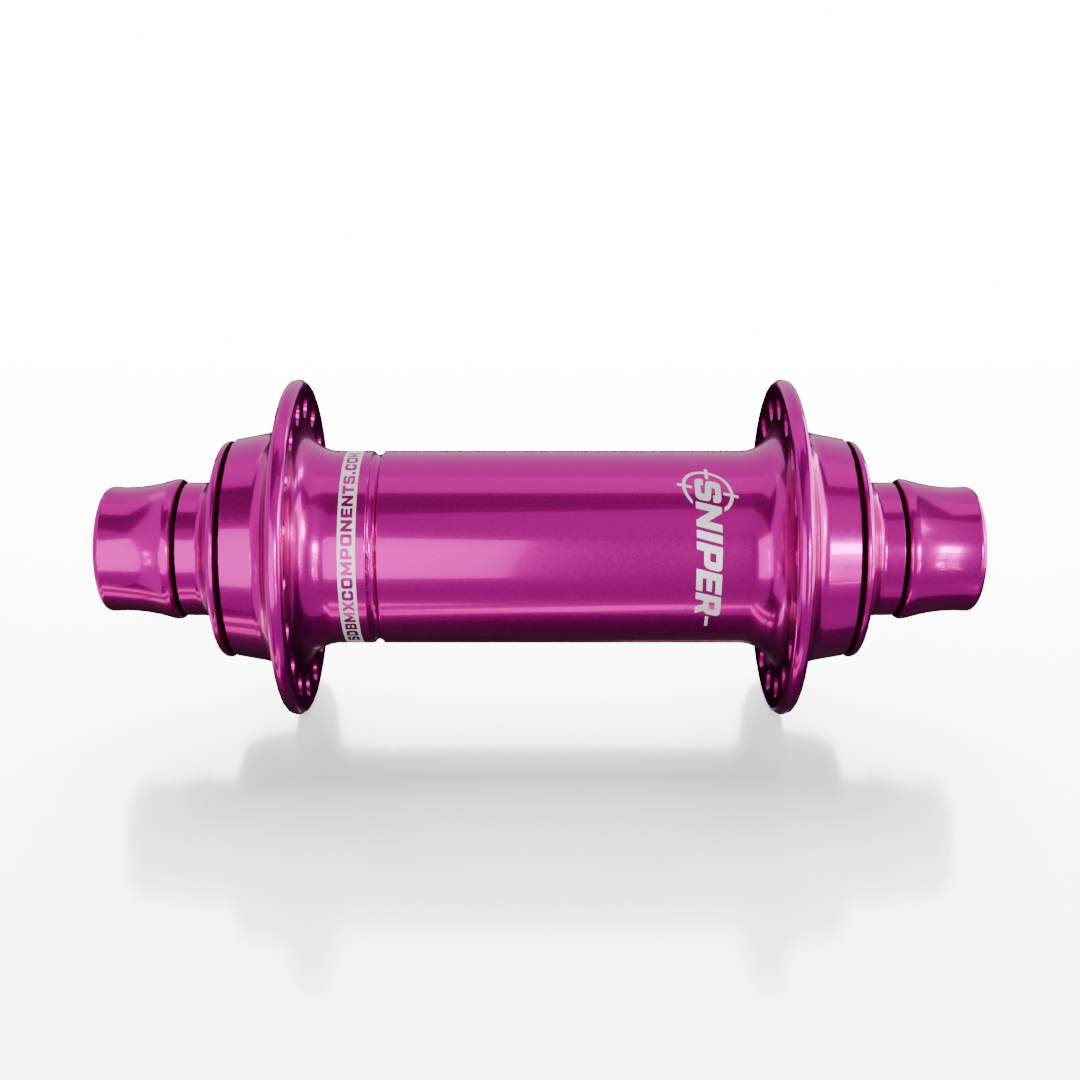

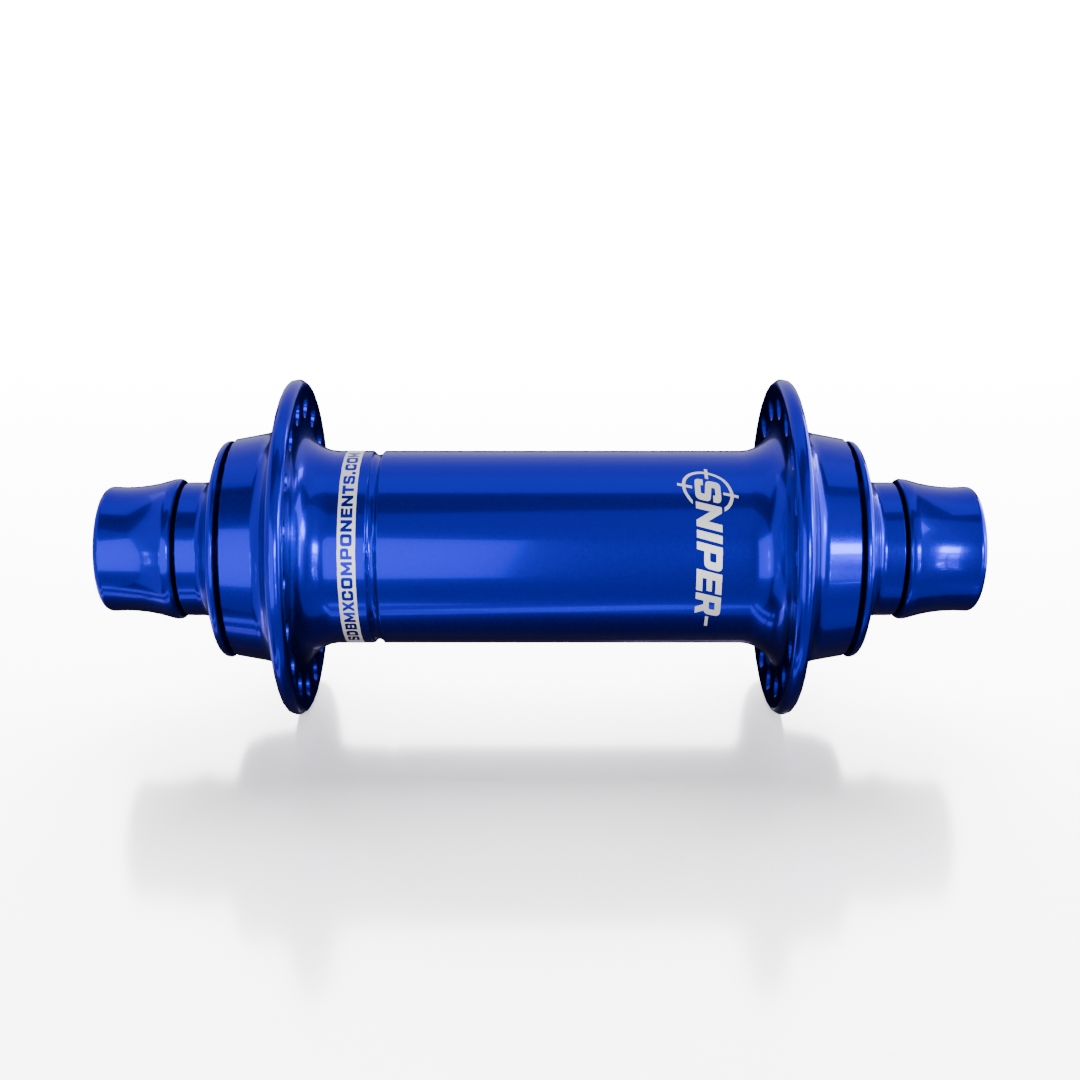

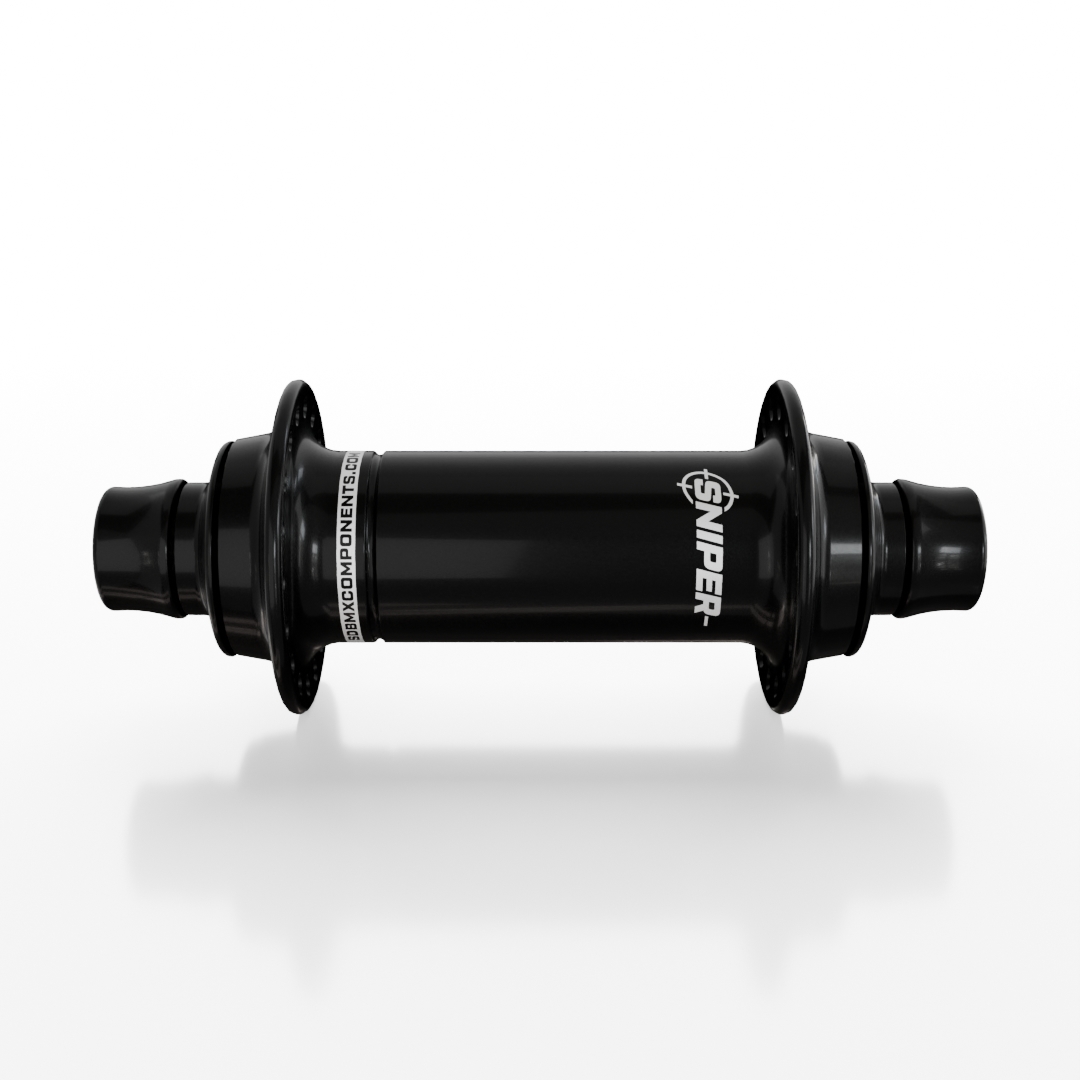

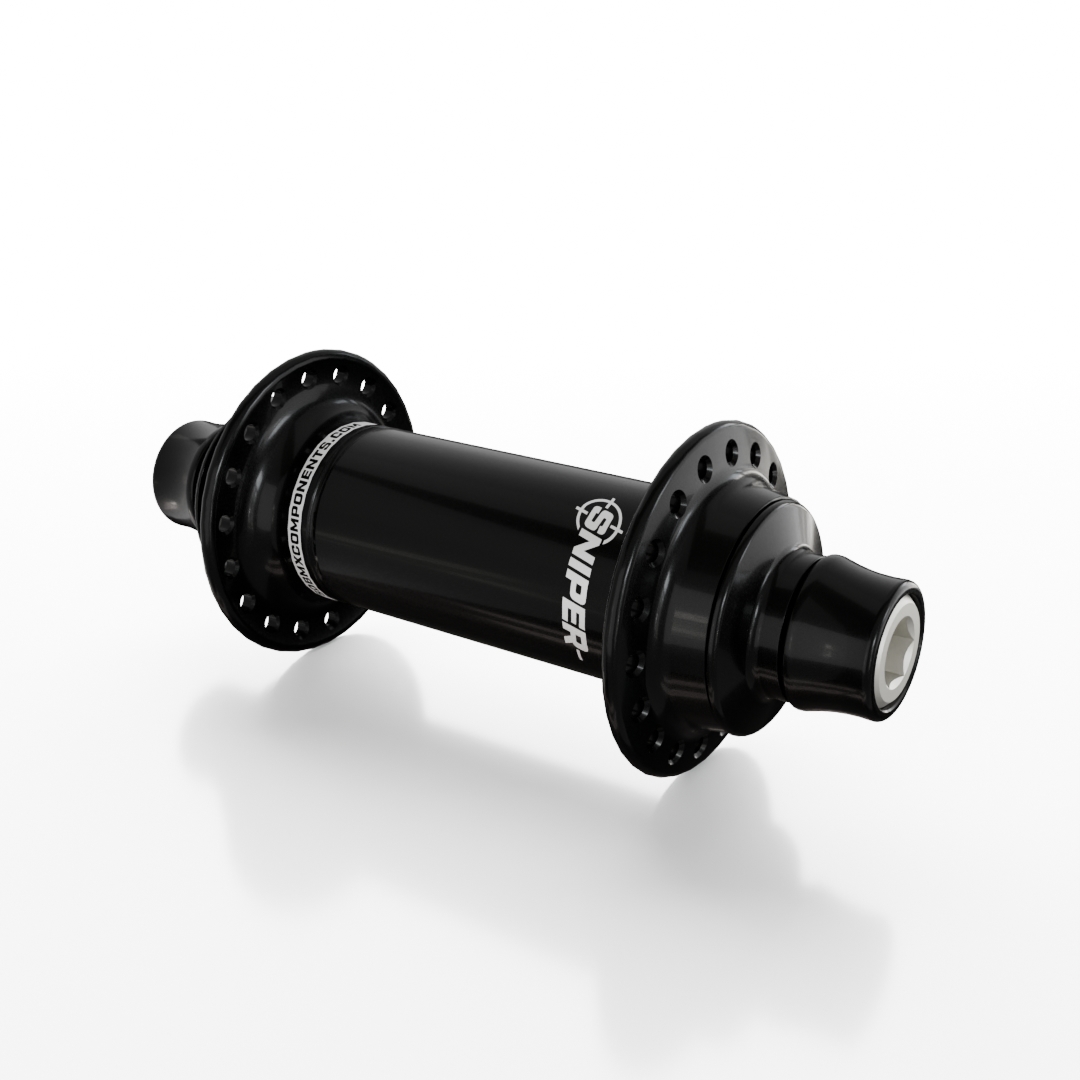

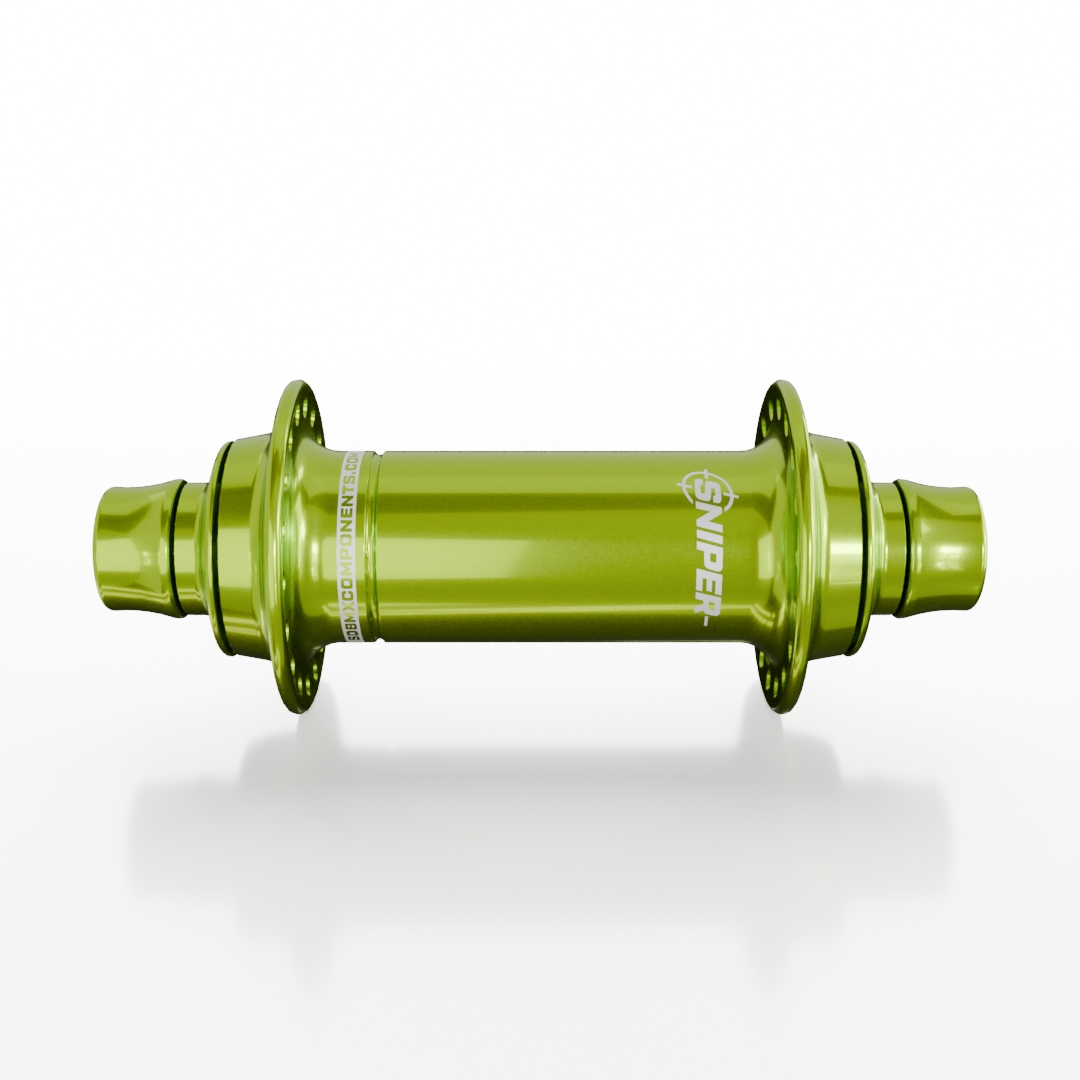

SD-X Sniper Evo Air Front Hub
The SD-X Sniper Evo Air Front Hub is engineered for lightweight racers who demand maximum performance, precision, and reliability. Designed specifically for BMX racing, this hub combines ultra-lightweight aluminum construction with titanium bolts and high-end SKF ABEC-5 bearings, resulting in an exceptionally fast and responsive front hub.
The Sniper Evo Air Front Hub is fully customizable with a wide range of separately available components, allowing riders to personalize their setup using an extensive color palette.
Features
– 10 mm front hub with titanium bolts
– Available in 28-hole and 36-hole versions
– Suitable for racers up to 65 kg
– High-quality SKF ABEC-5 bearings
– Hub shell and internal components manufactured from premium 7075 aluminum

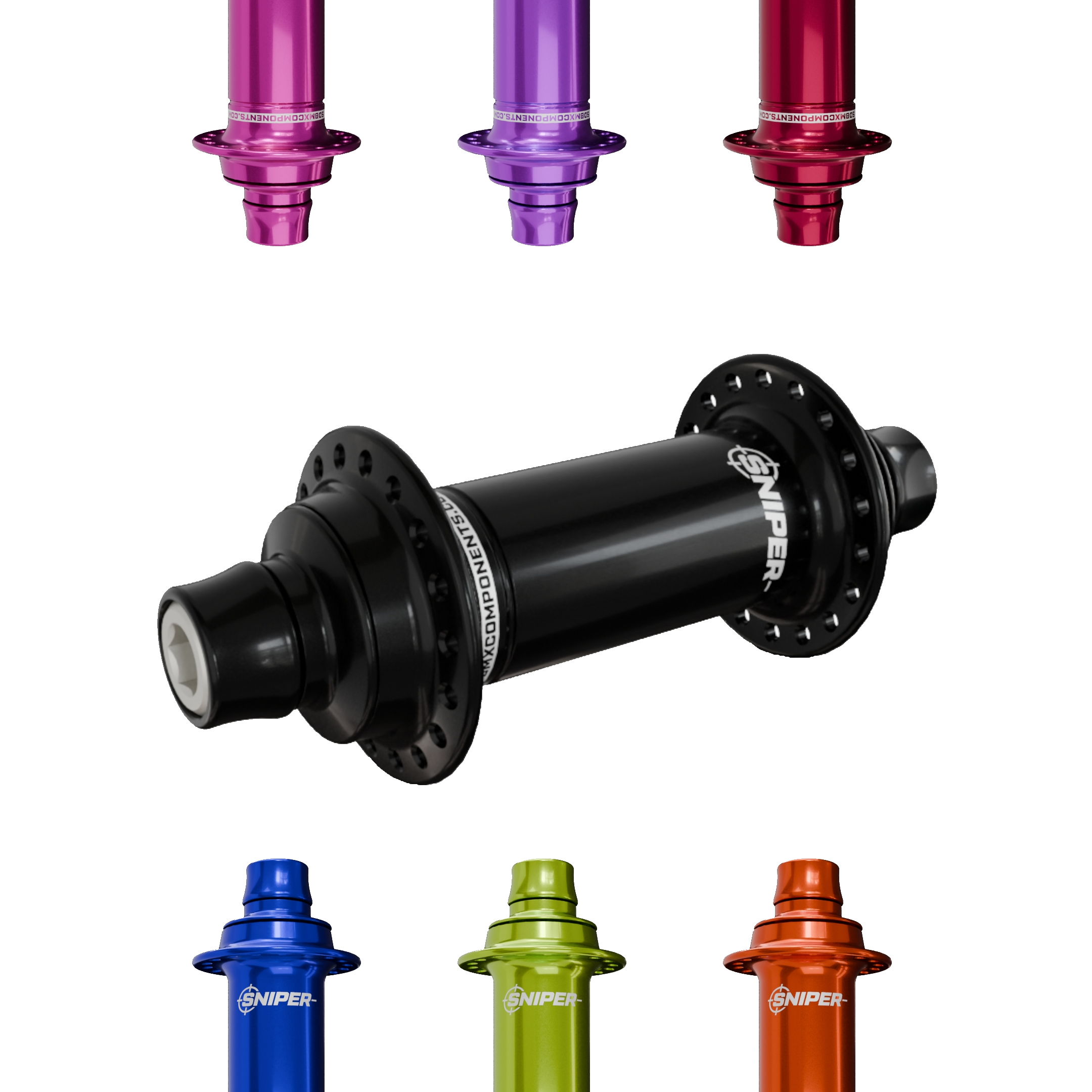

– Available in a wide range of colors
Technical Specifications
– Weight (28-hole): 140 g
– Weight (36-hole): 139 g
– Wheel bearings: 2× 6902
– Titanium bolts: 2× UNC 3/8-16
A= Total length: 100mm
B= Distance flange to outside non-drive side: 14mm
C= Distance flange to outside drive side: 14mm
D= Flange diameter non-drive side: 40mm
E= Flange diameter drive side: 40mm
*Pictures are for reference only
