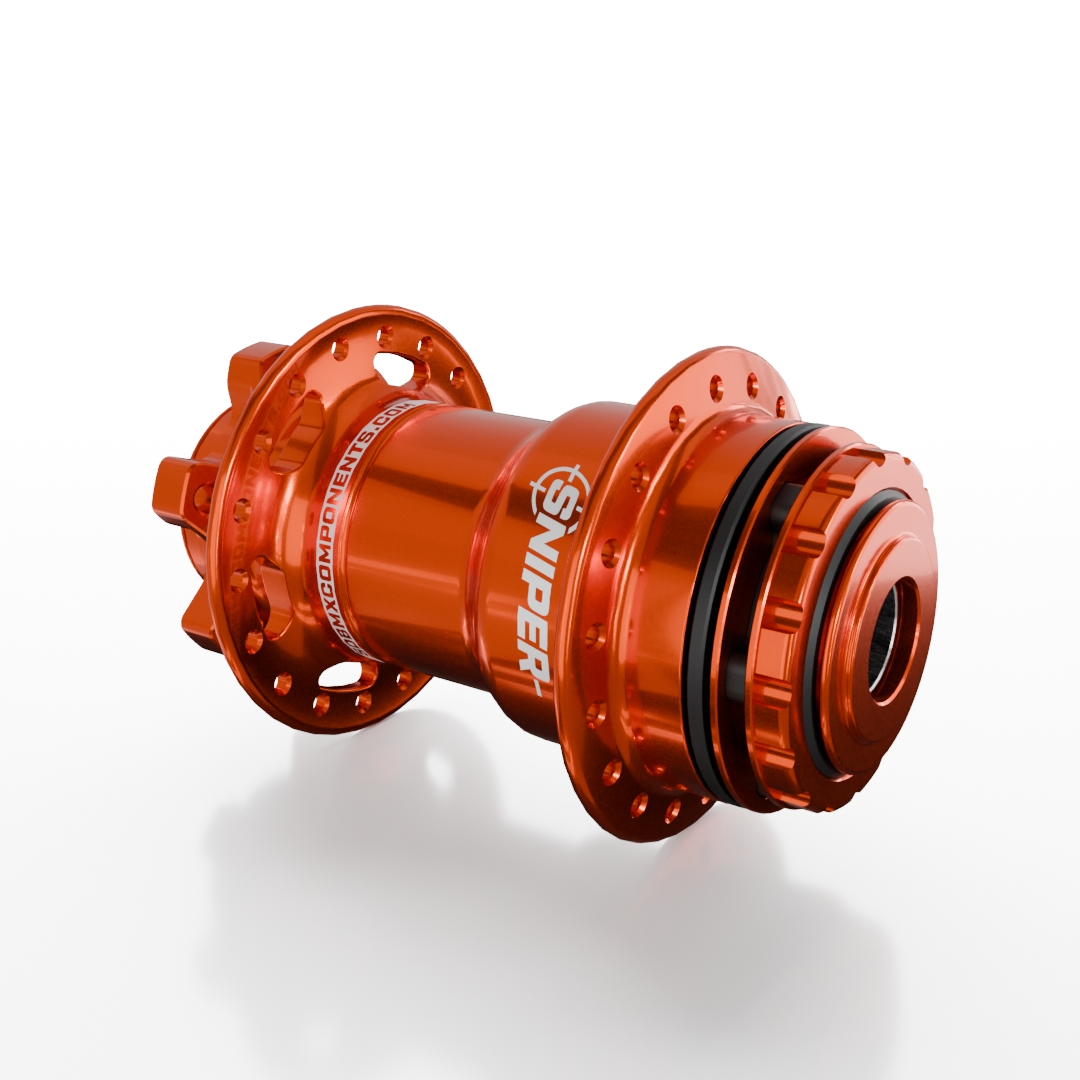

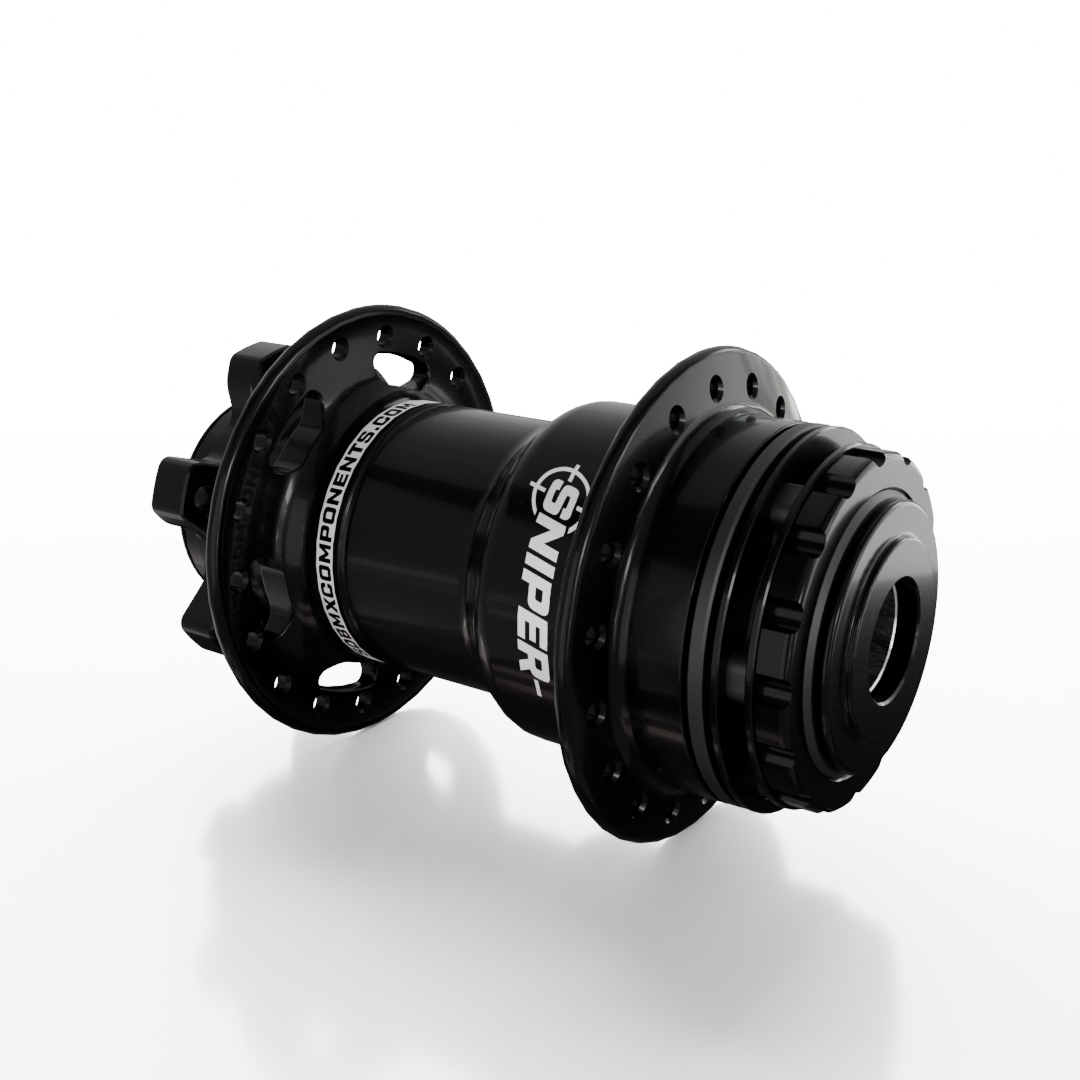

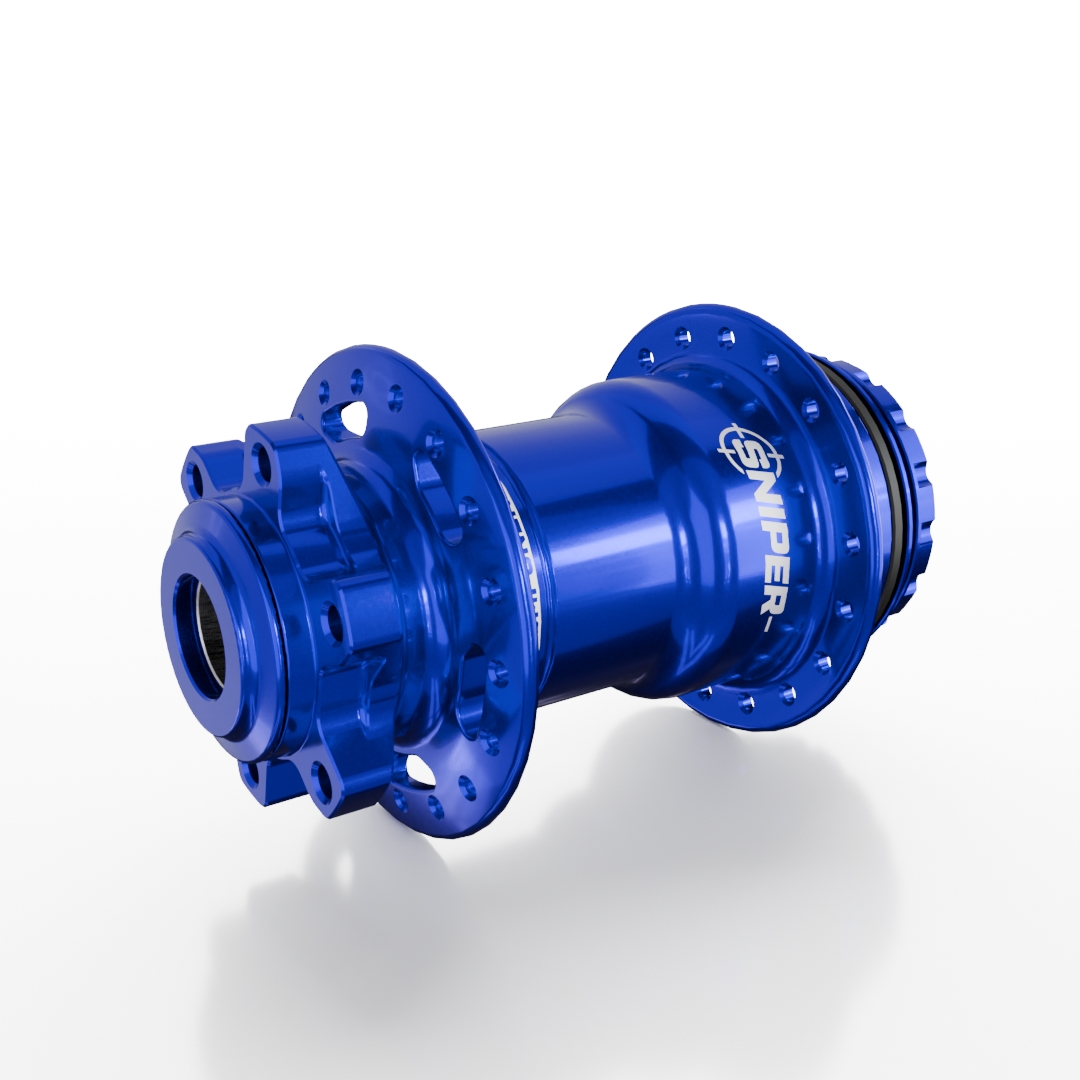

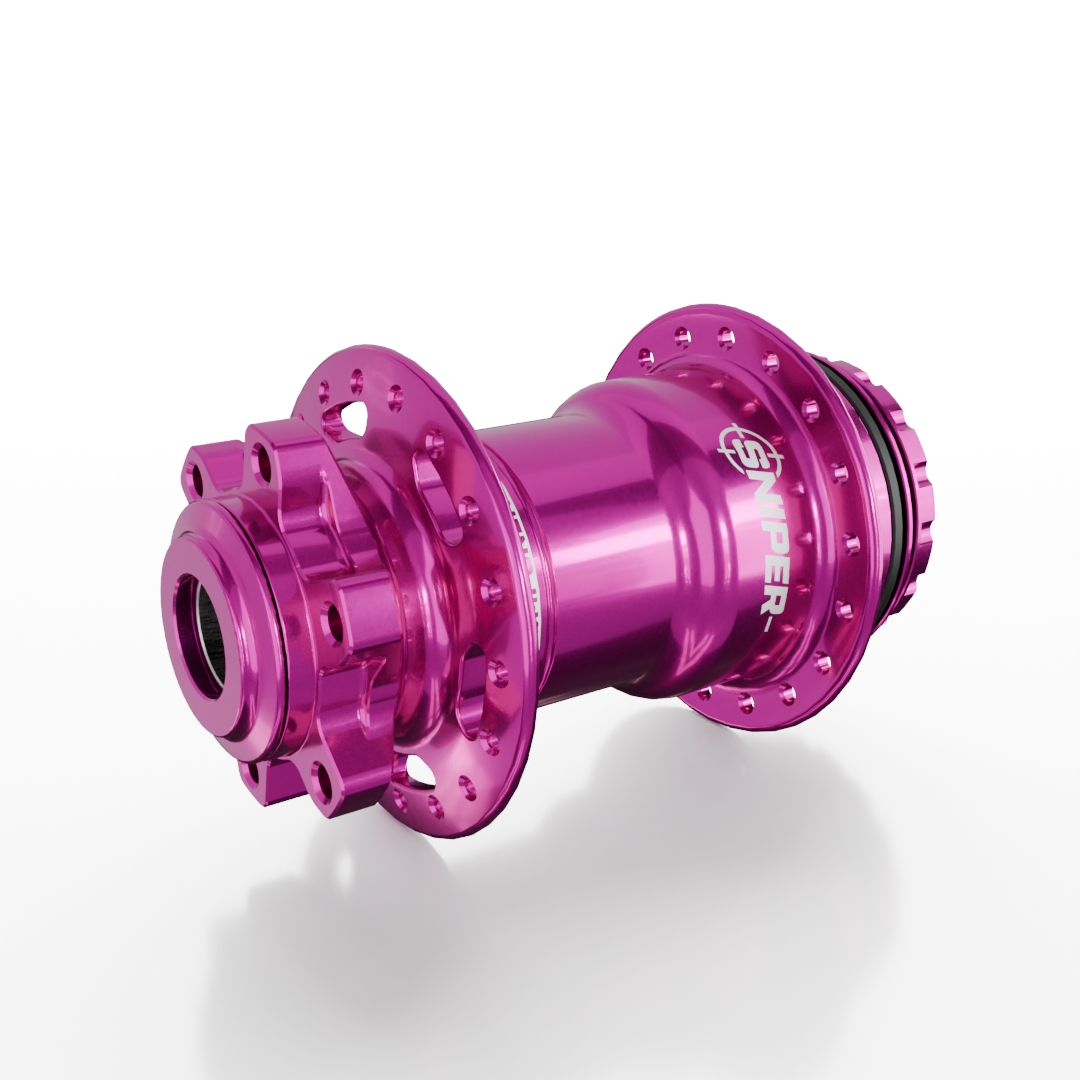

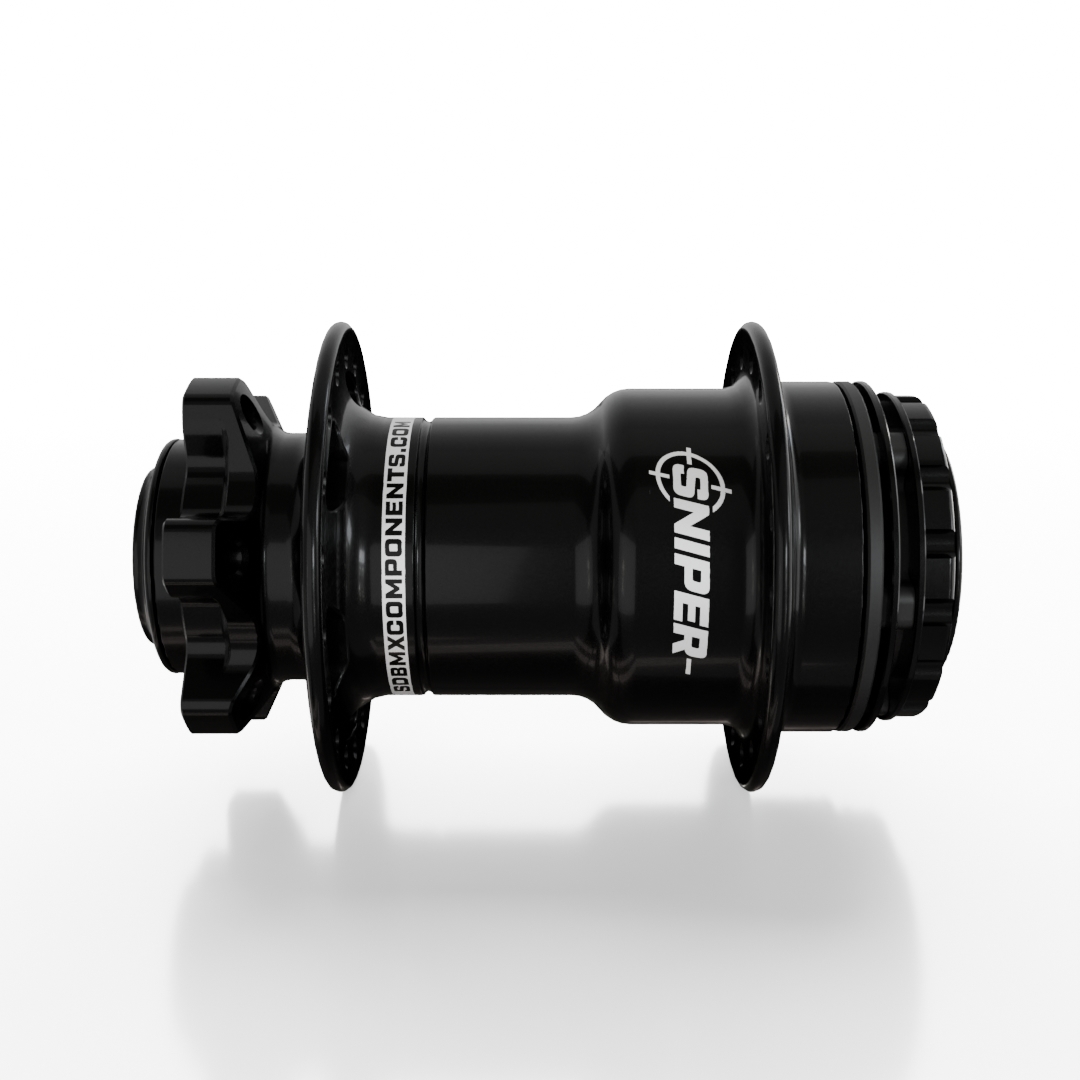

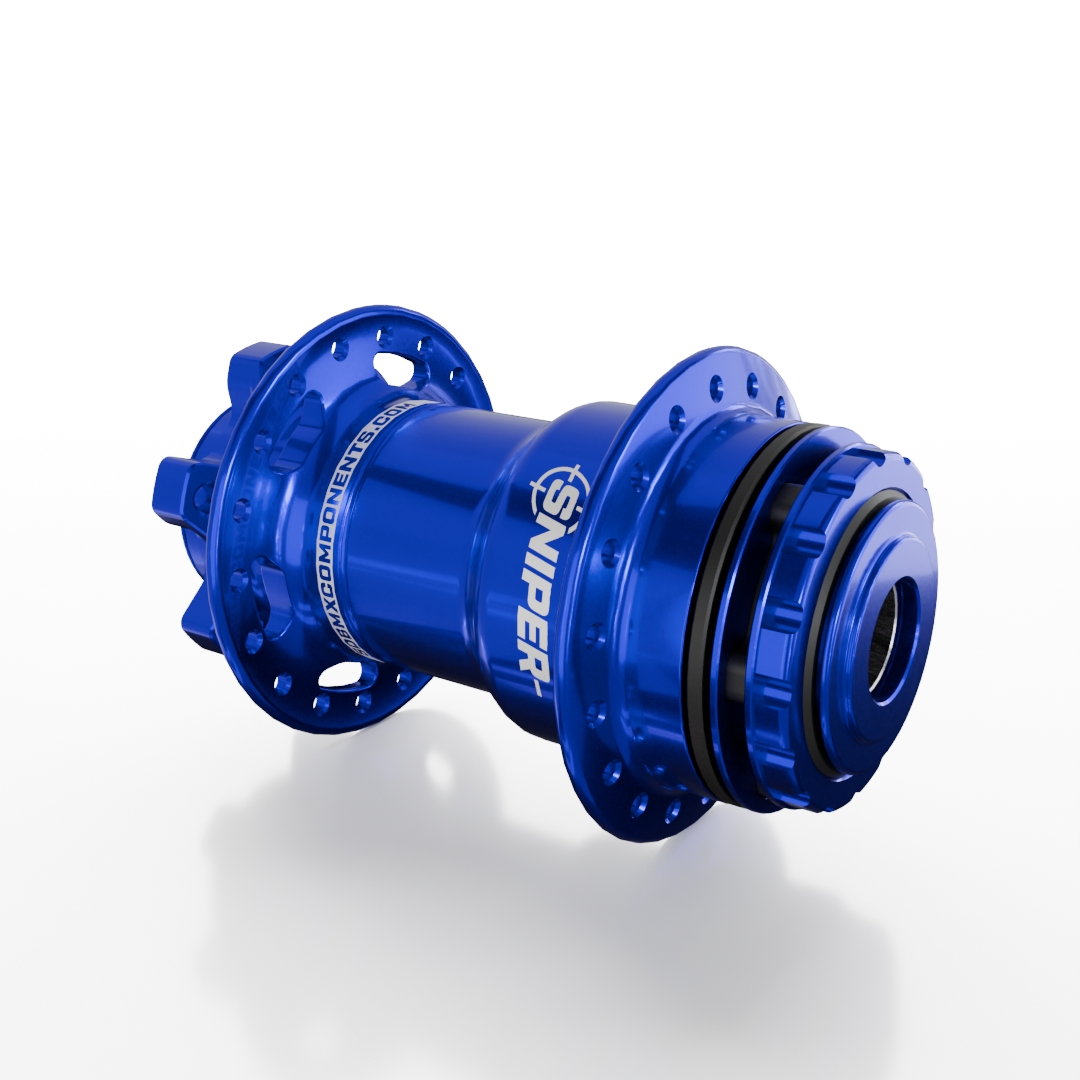

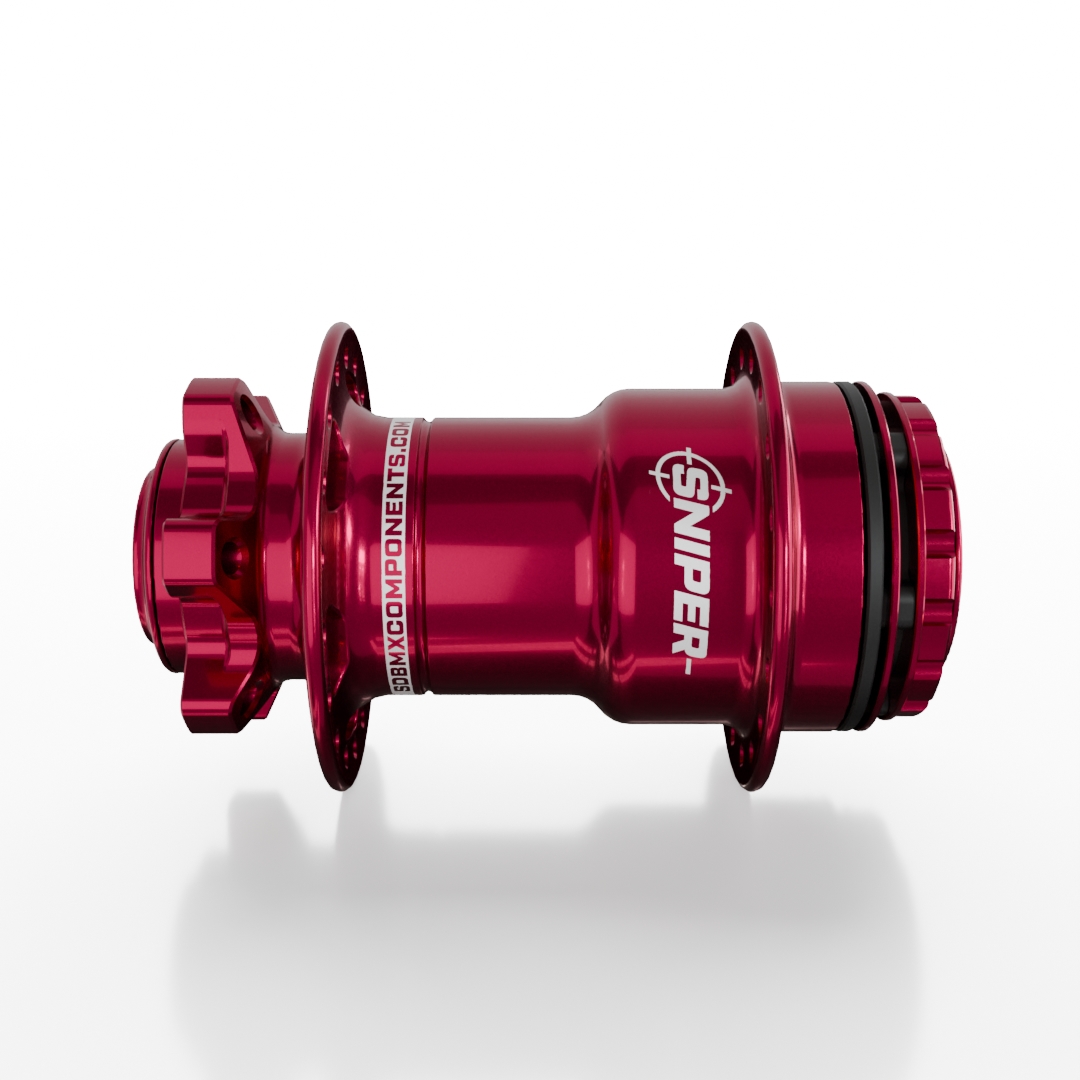

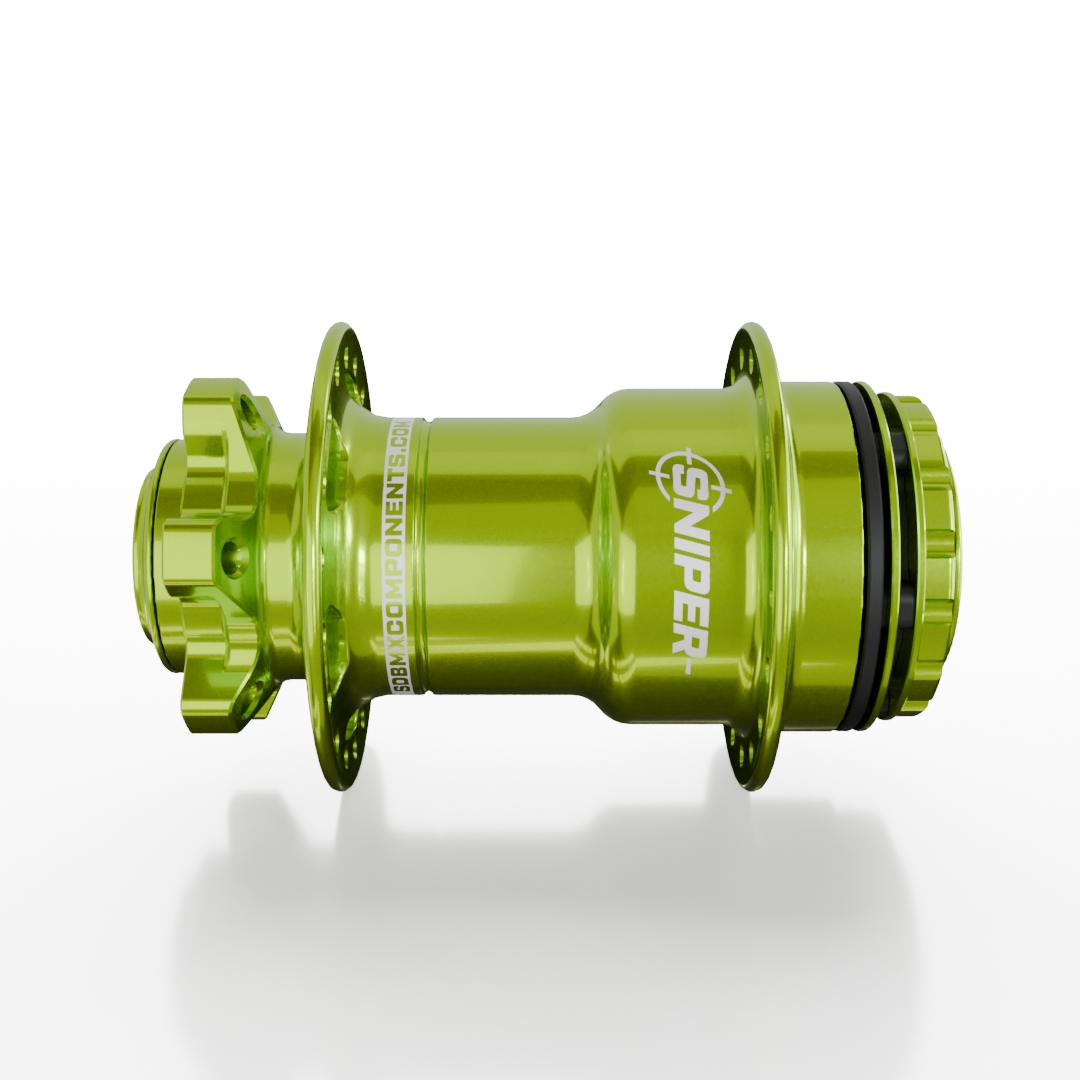

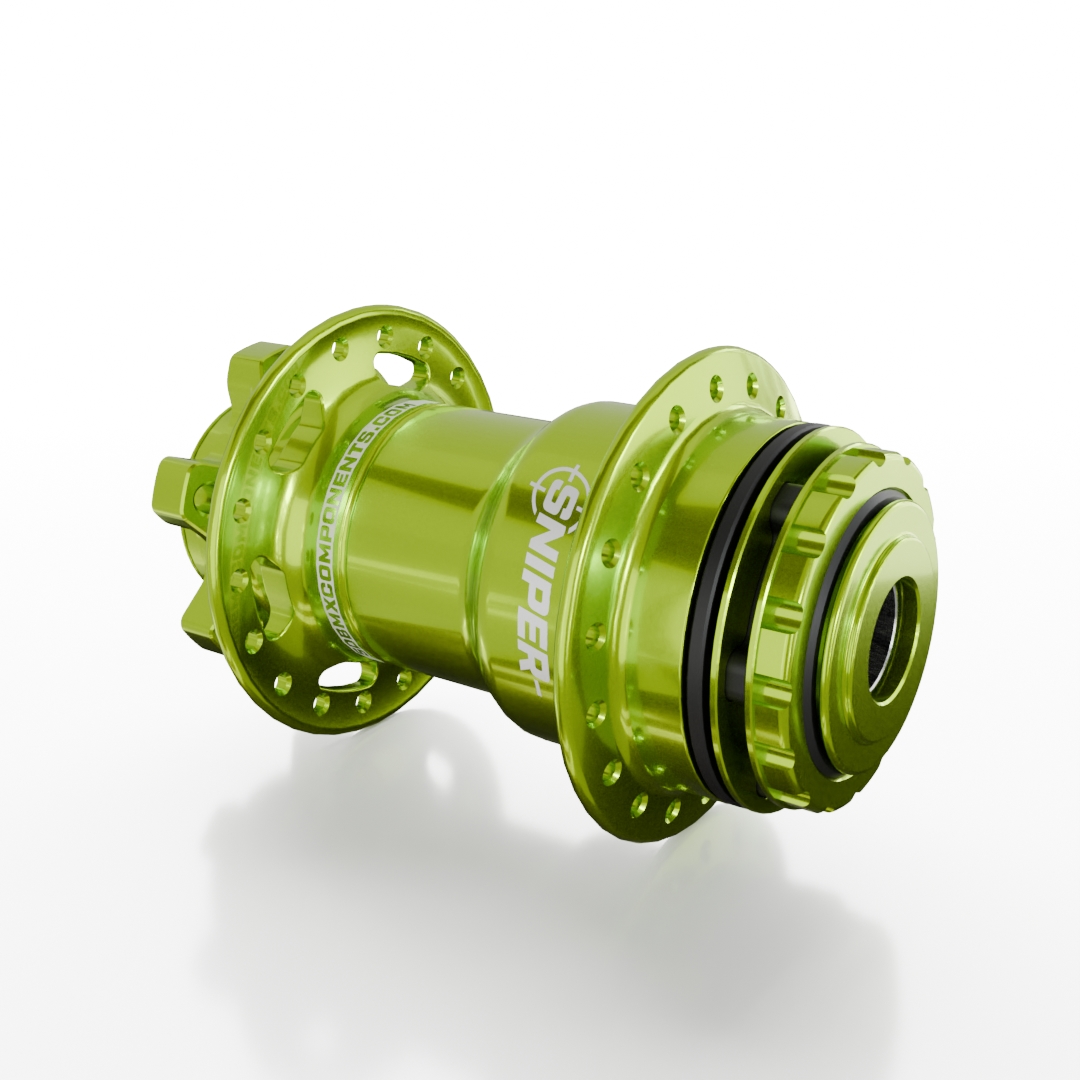

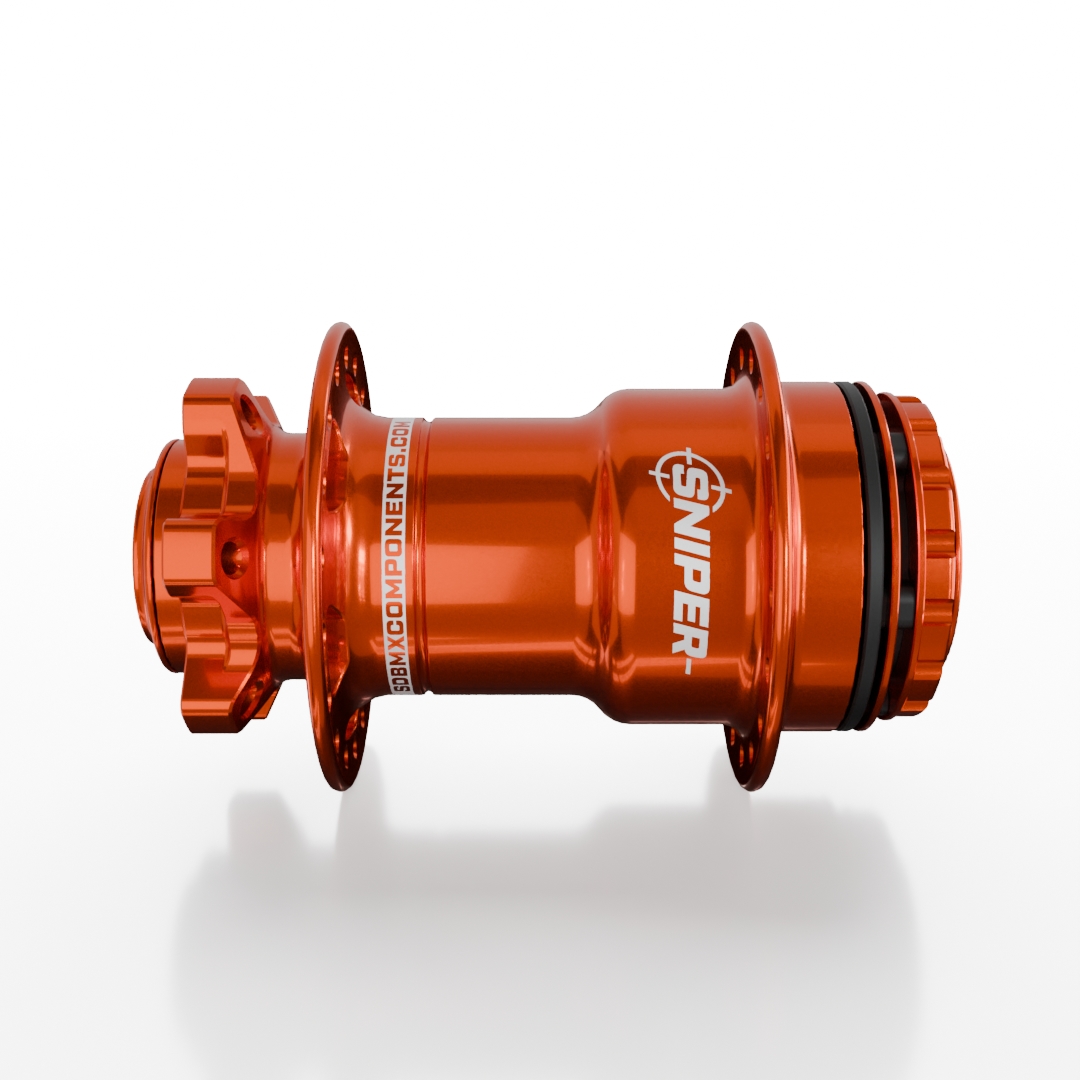

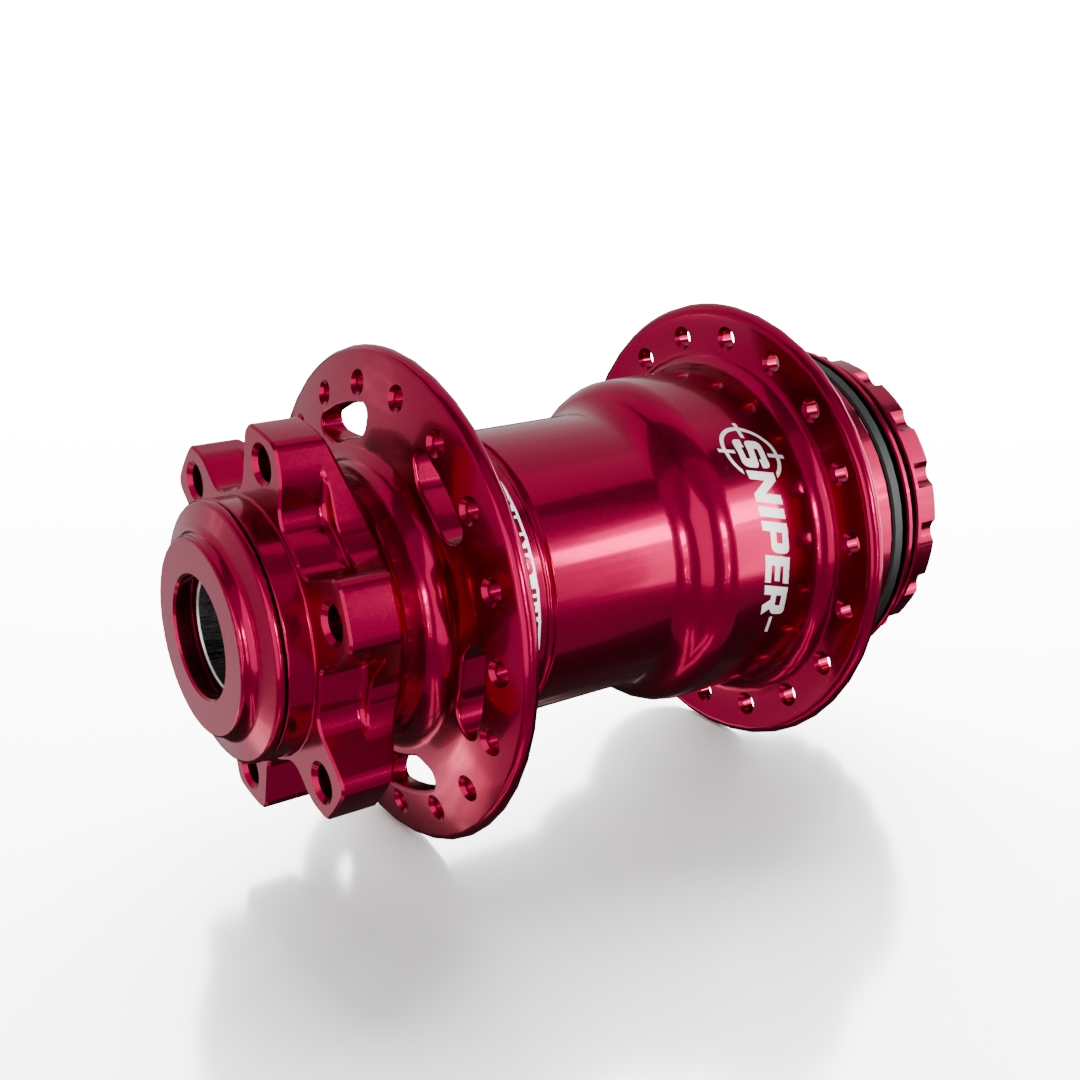

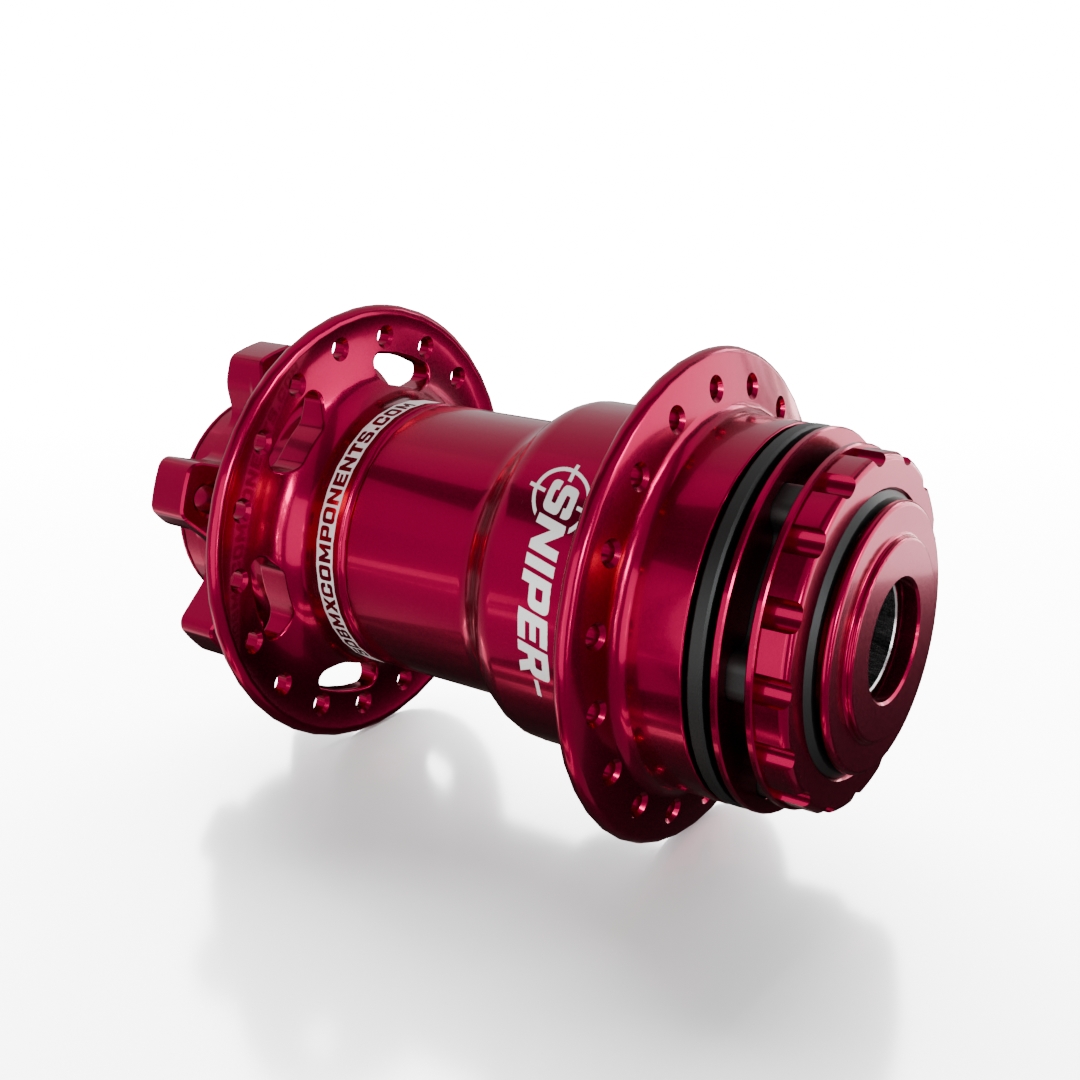

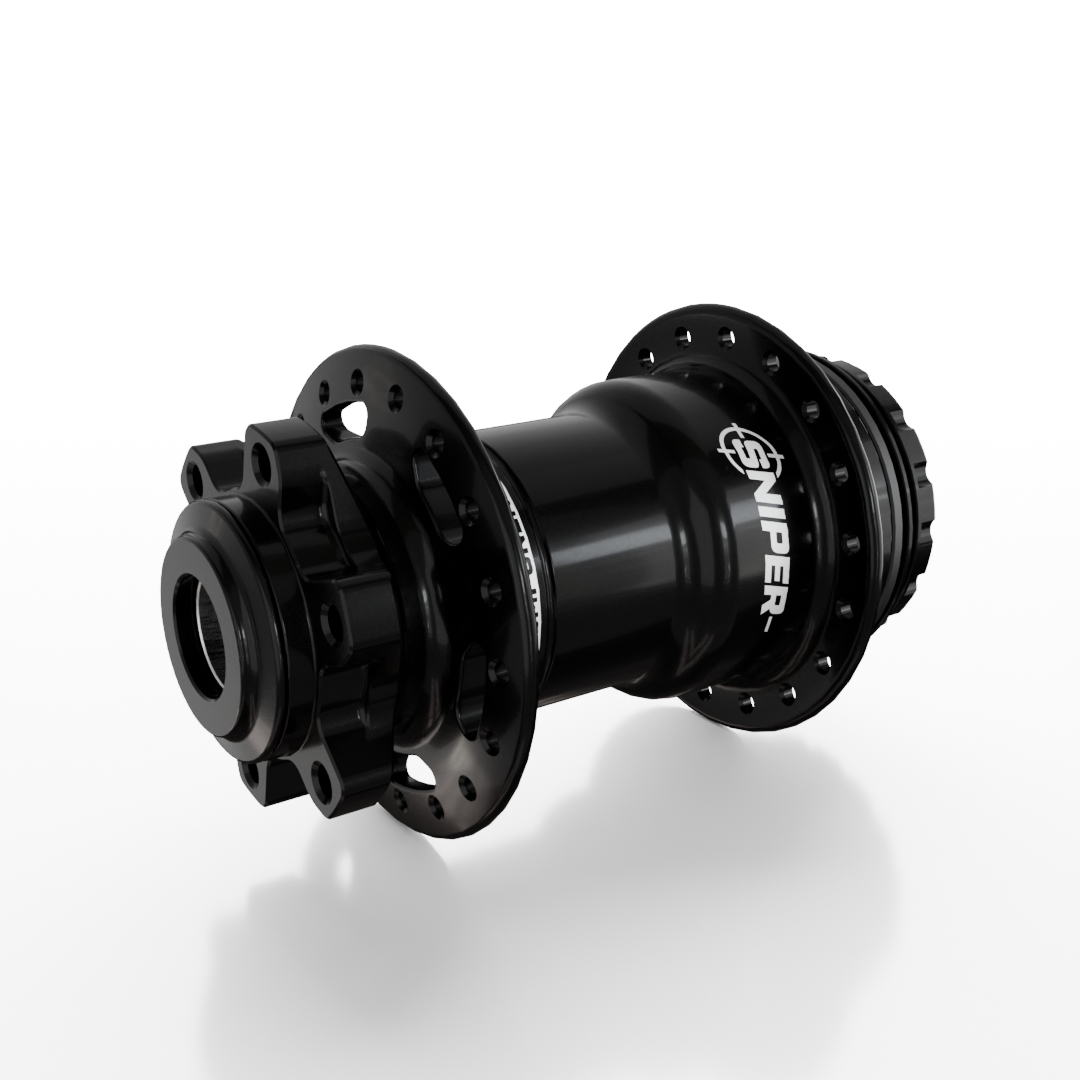

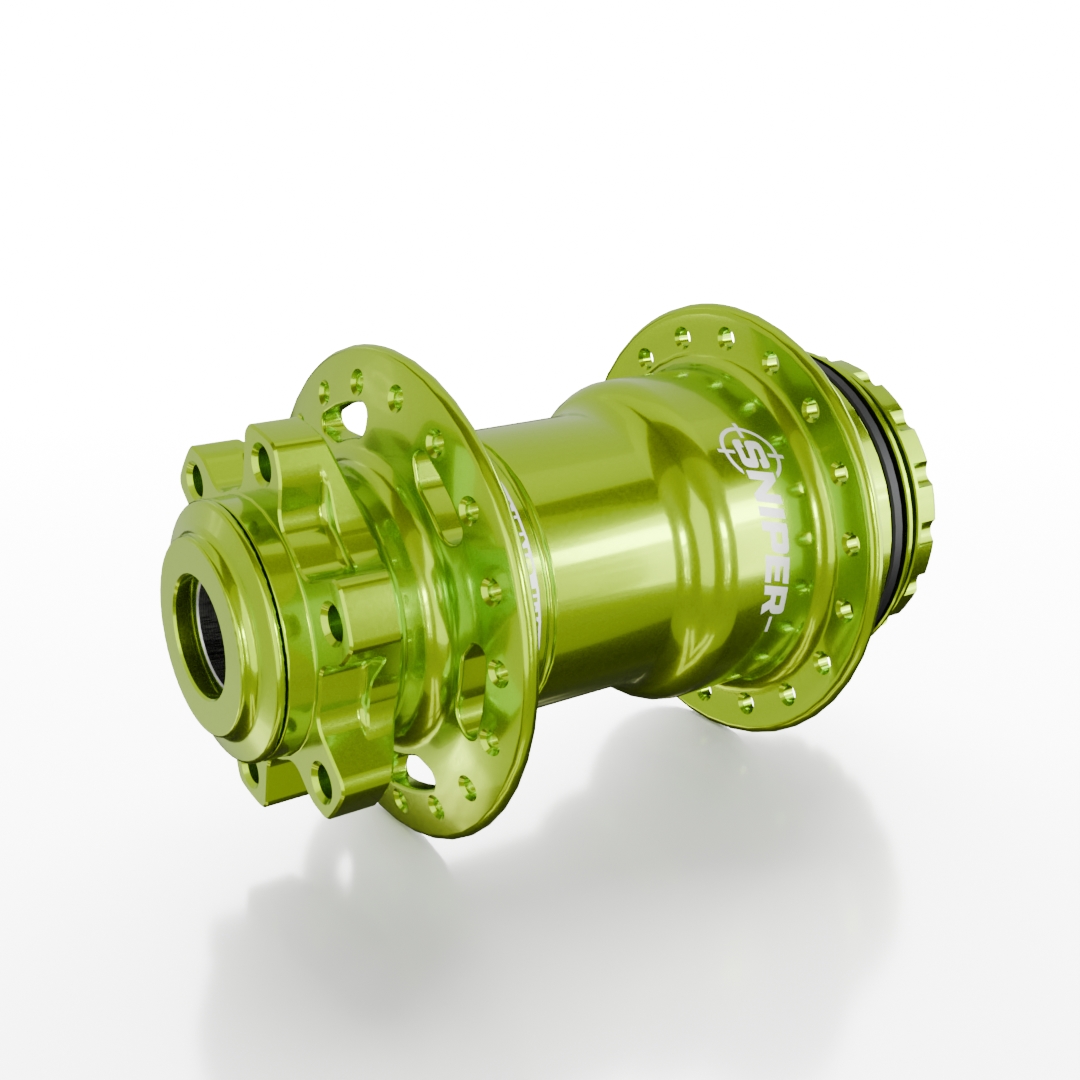

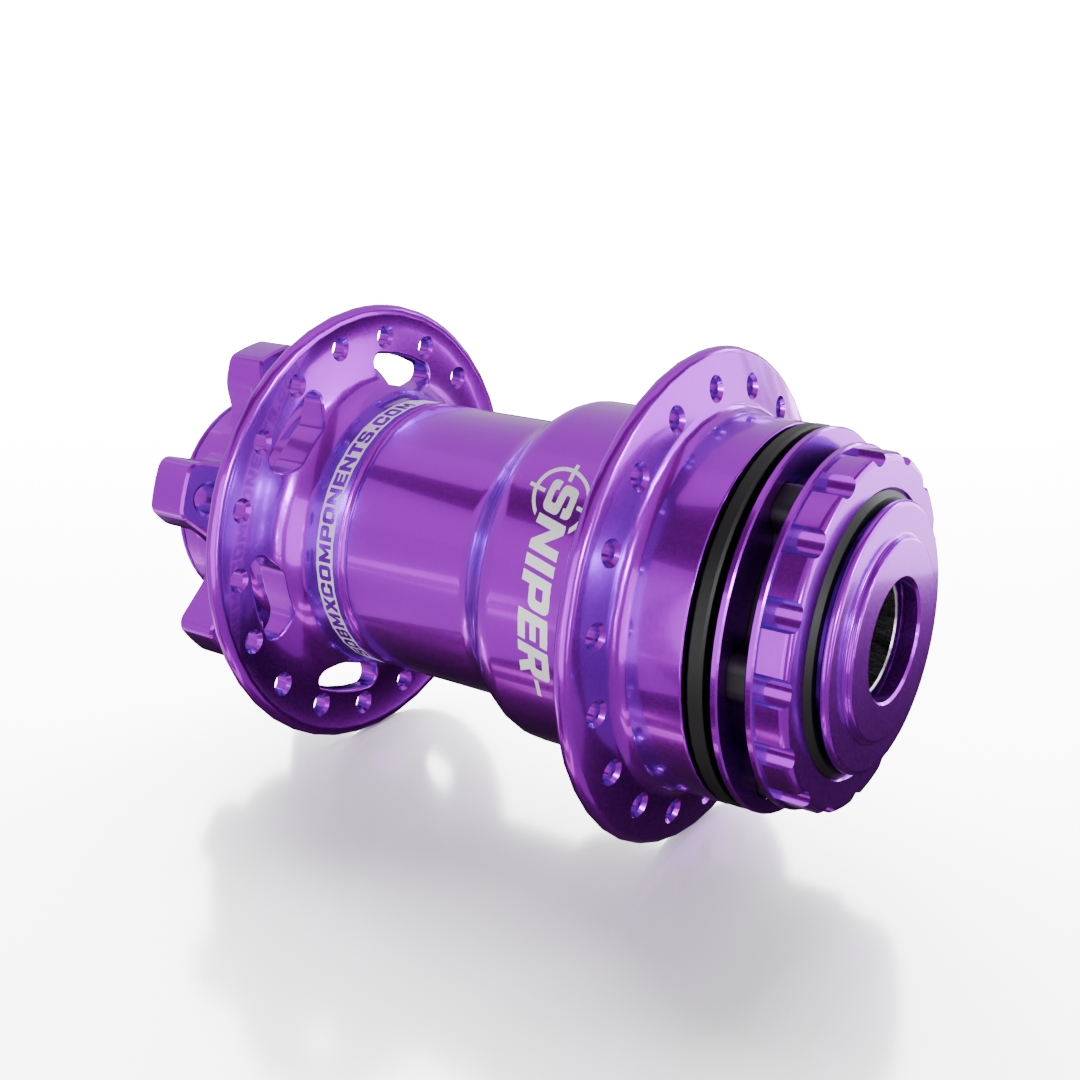

SD-X Sniper Evo Pro HXS Rear Hub
Compatible exclusively with Meybo HSX frames (Alloy & Carbon)!
The SD-X Sniper Evo Pro HSX Rear Hub is built for unlimited racing performance and designed specifically for Meybo HSX frames. This full-engagement rear hub combines lightweight aluminum construction with SKF ABEC-5 bearings to deliver uncompromising performance and reliability.
The direct engagement system ensures instant power transfer, silent operation, and zero resistance while freewheeling.
The hub is supplied exclusively as a 15 mm version and cannot be converted to a 10 mm bolt-on setup.
Features
– Supplied as standard in 15 mm configuration
– ISO-6 disc mount
– Available in 36-hole only
– Suitable for all racers
– High-quality SKF ABEC-5 bearings
– Hub shell and internals made from premium 7075 aluminum

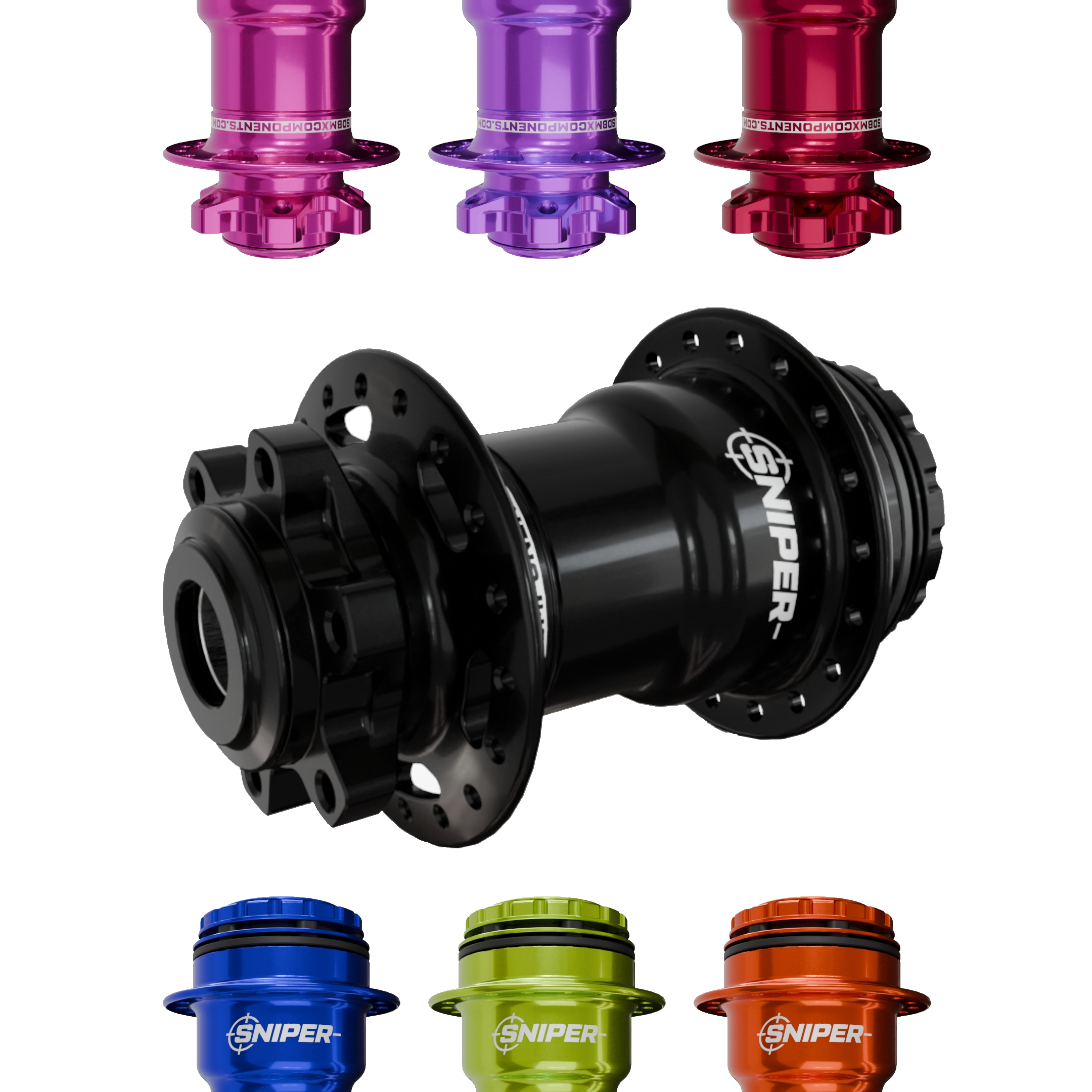

– Available in a wide color range
– Hub supplied without EVO cog (must be ordered separately)
– Hub supplied without 15 mm axle
Technical Specifications
– Weight (36-hole): 428 g
– Wheel bearings: 2× 6903
– Clutch bearings: 2× Sniper Pro
– Driver outer bearing: 6806
– Driver inner bearing: 6705
A= Total length: 110mm
B= Distance flange to outside non-drive side: 25mm
C= Distance flange to outside drive side: 25mm
D= Flange diameter non-drive side: 56mm
E= Flange diameter drive side: 56mm
*Pictures are for reference only
