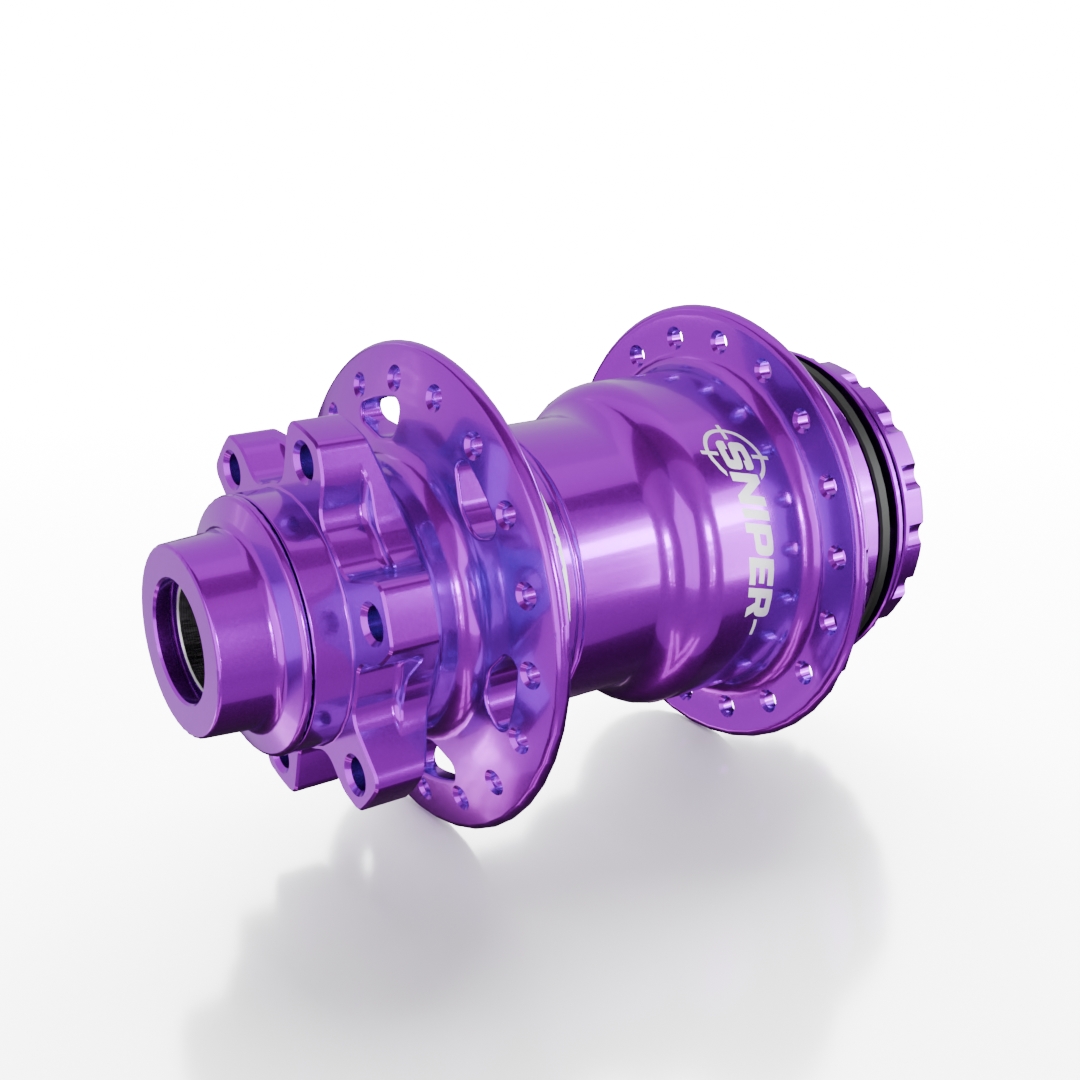

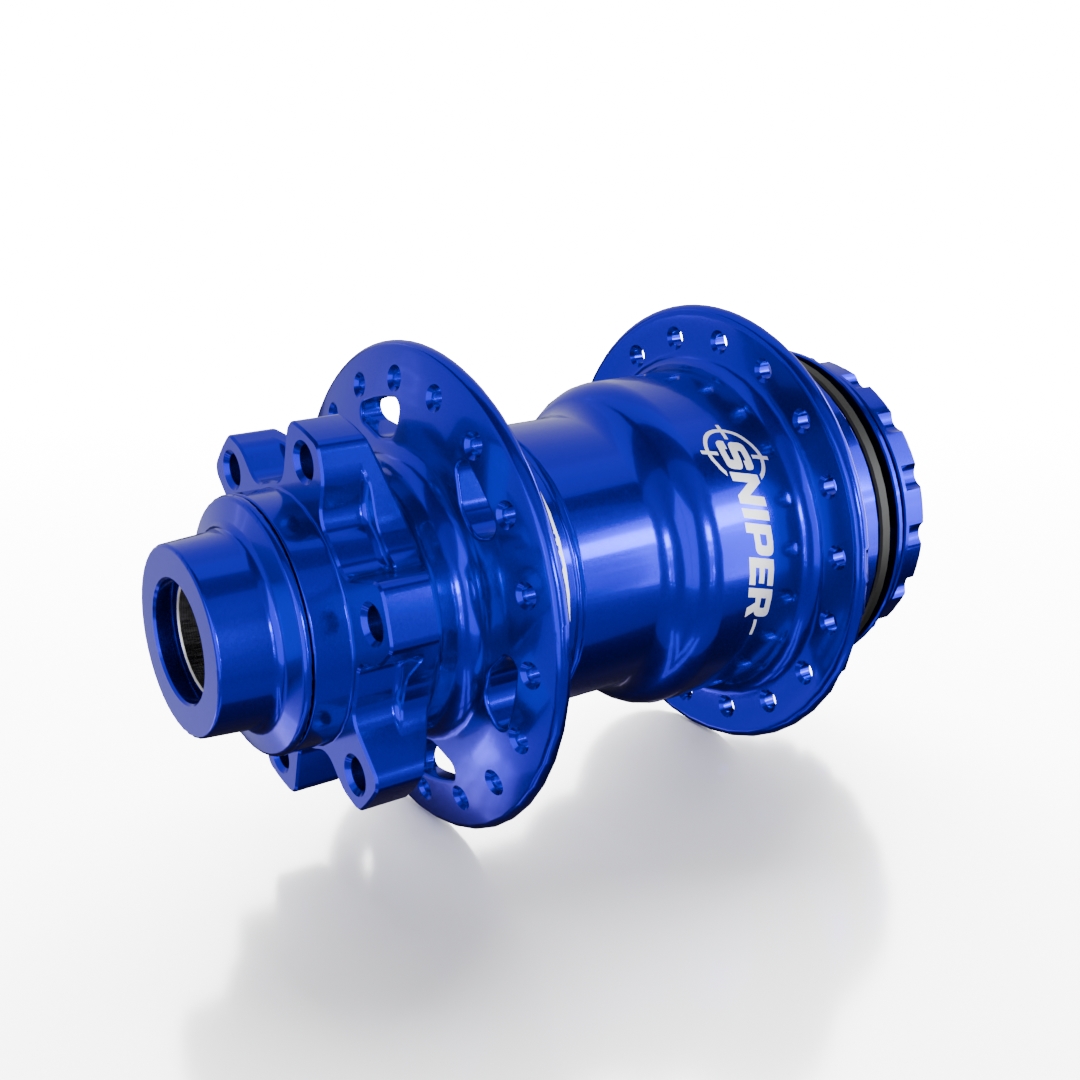

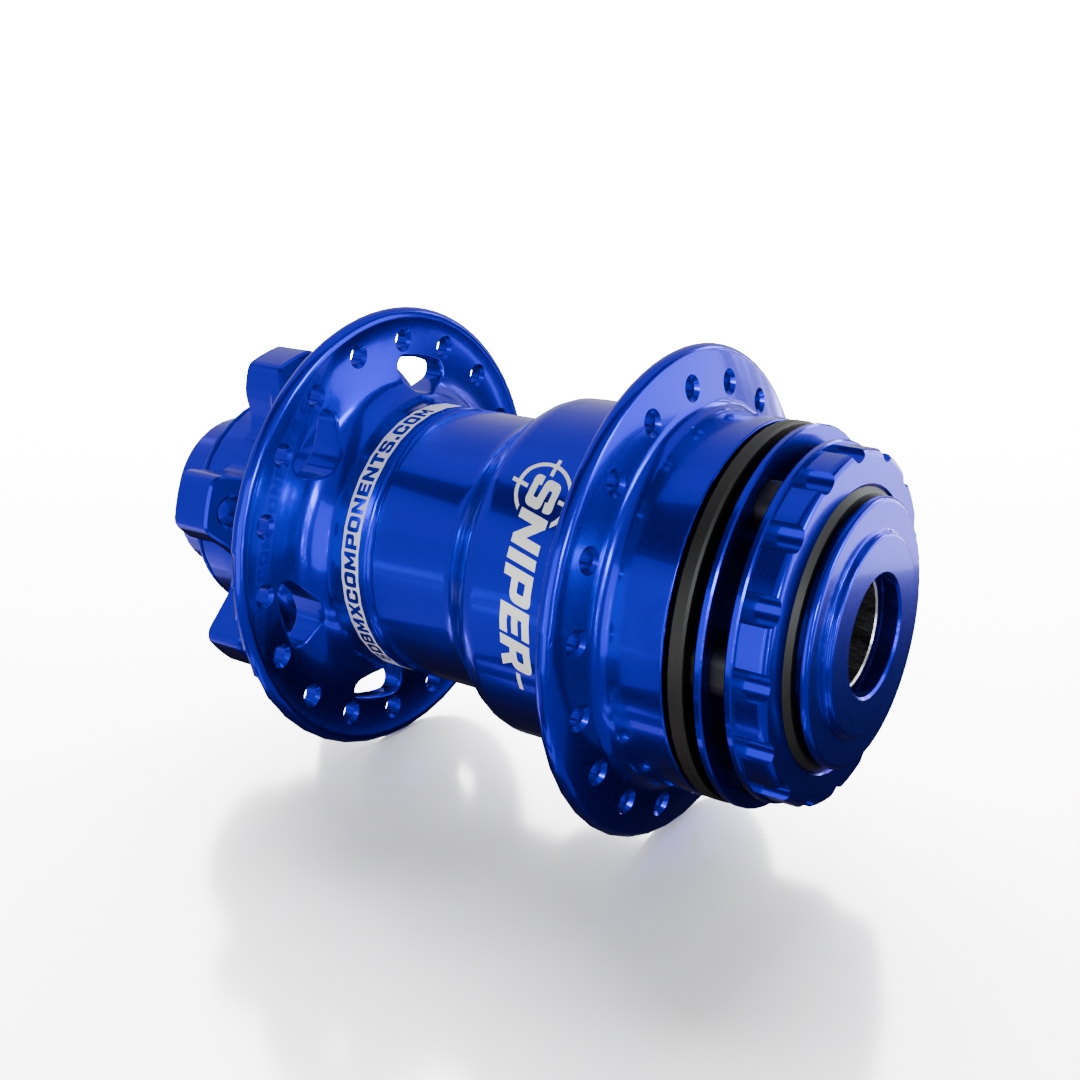

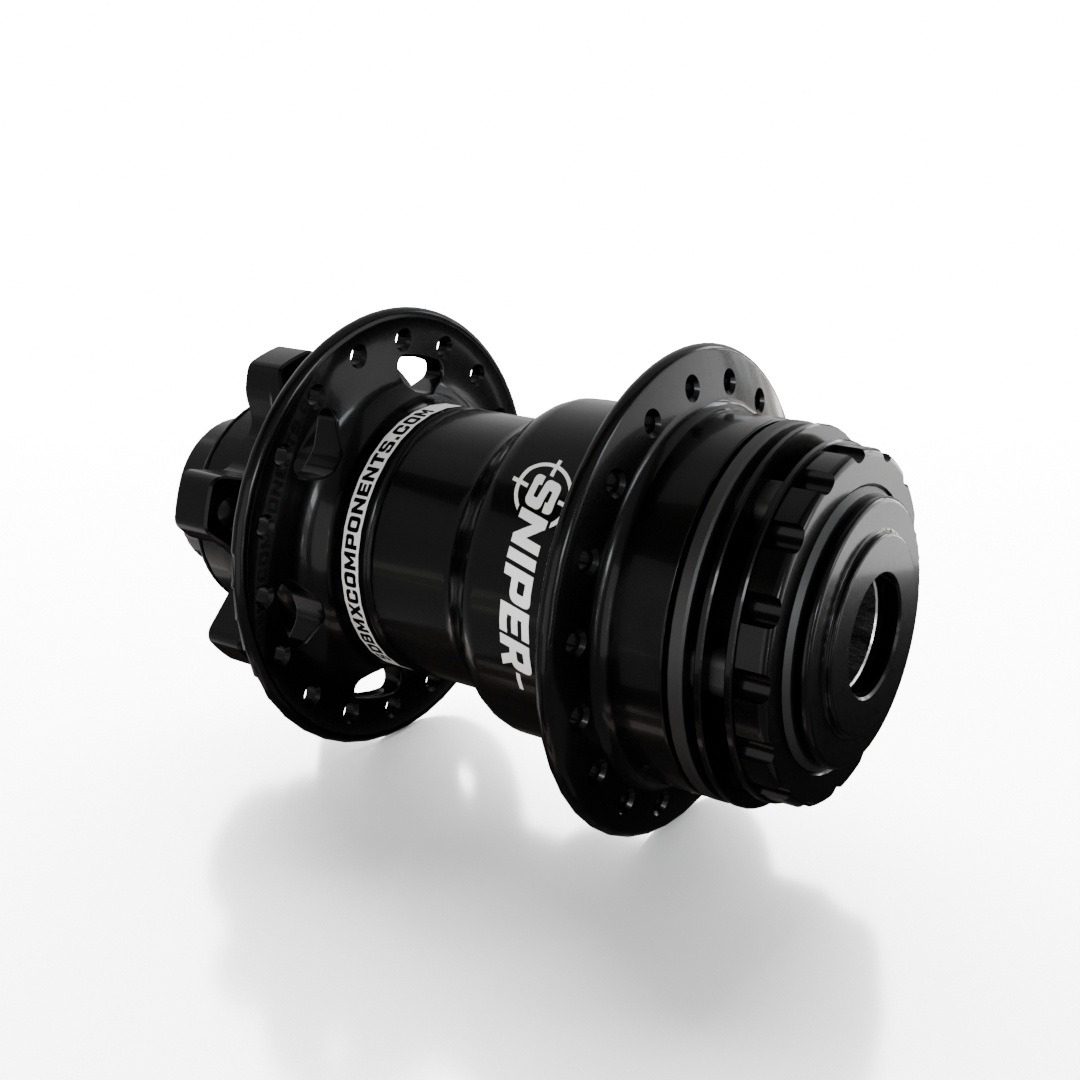

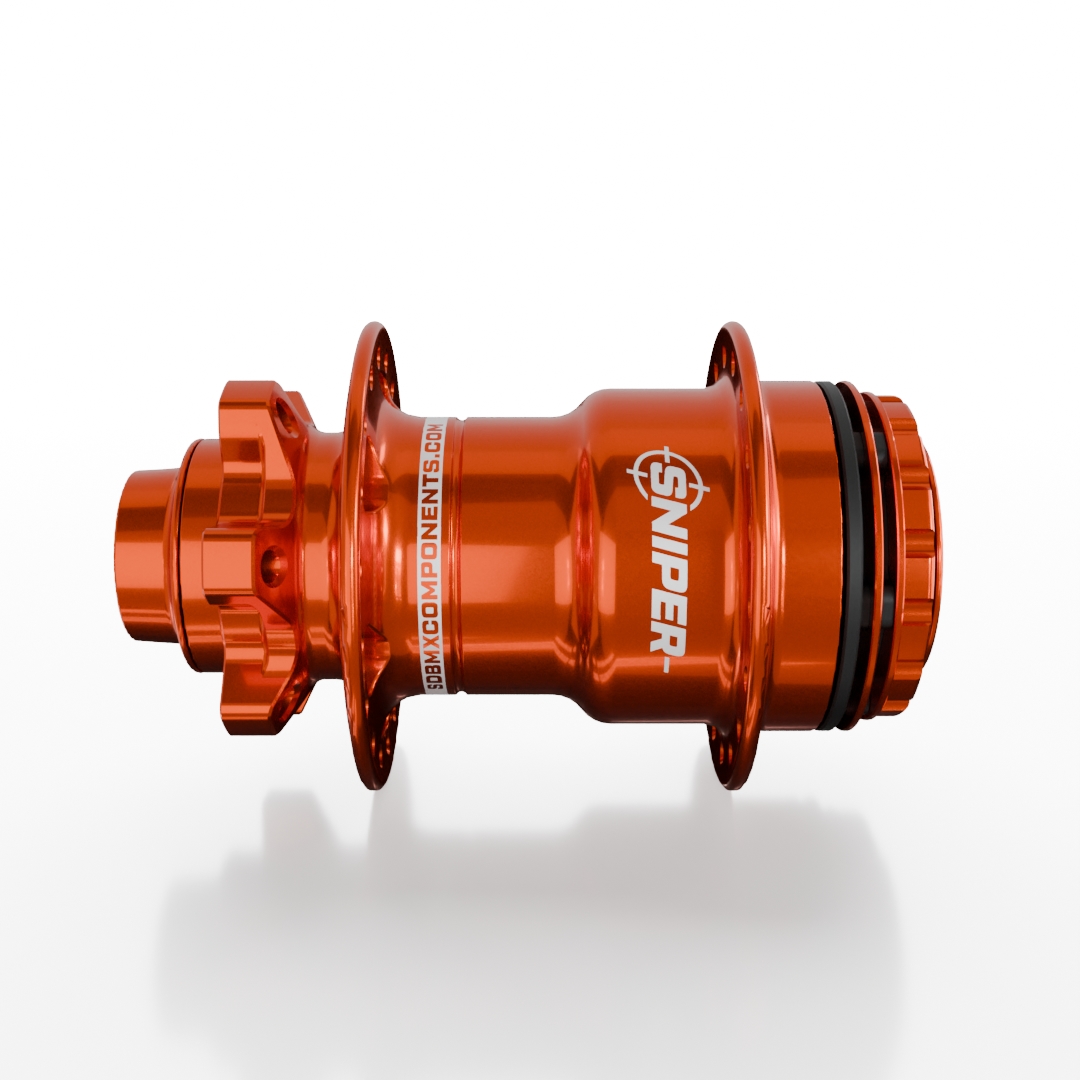

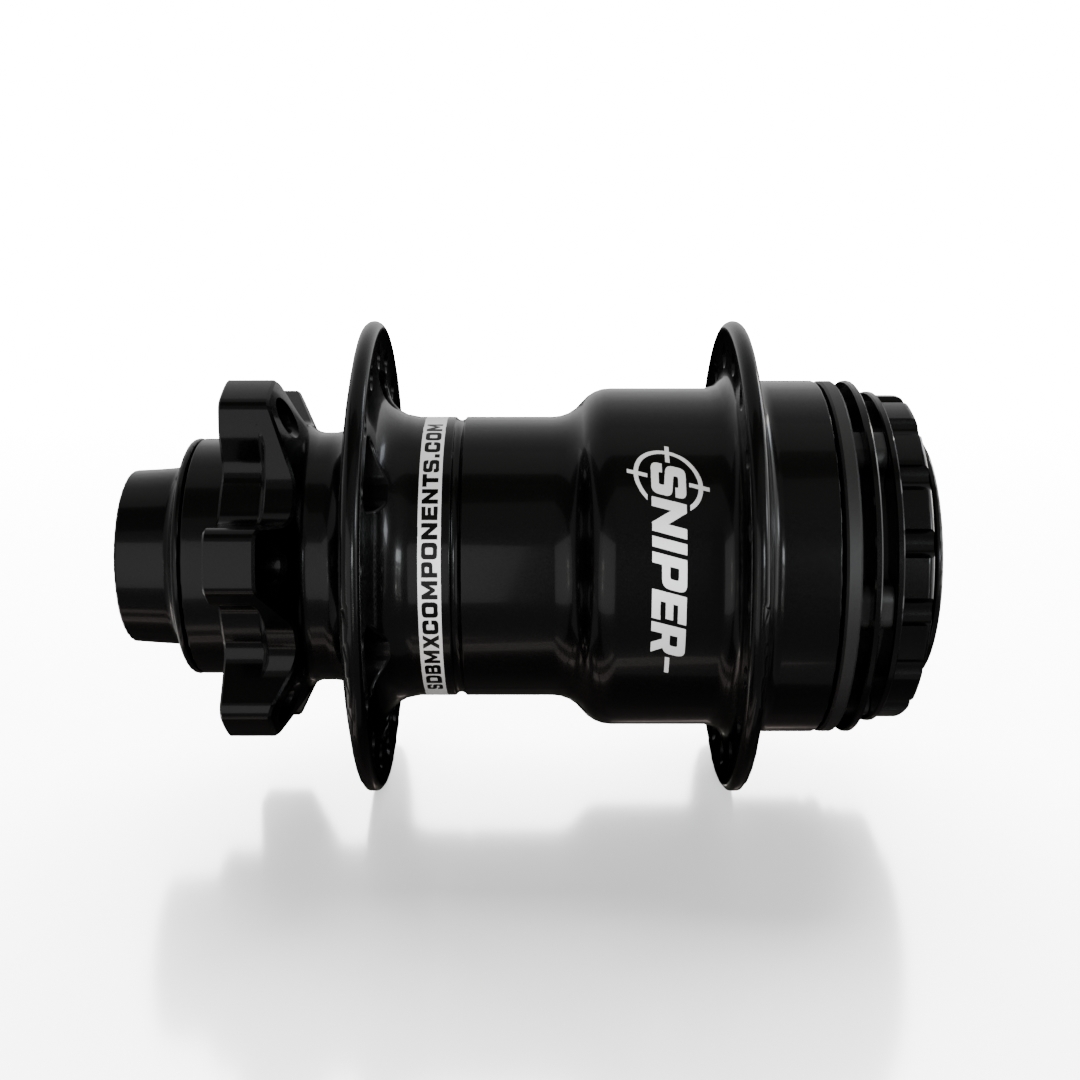

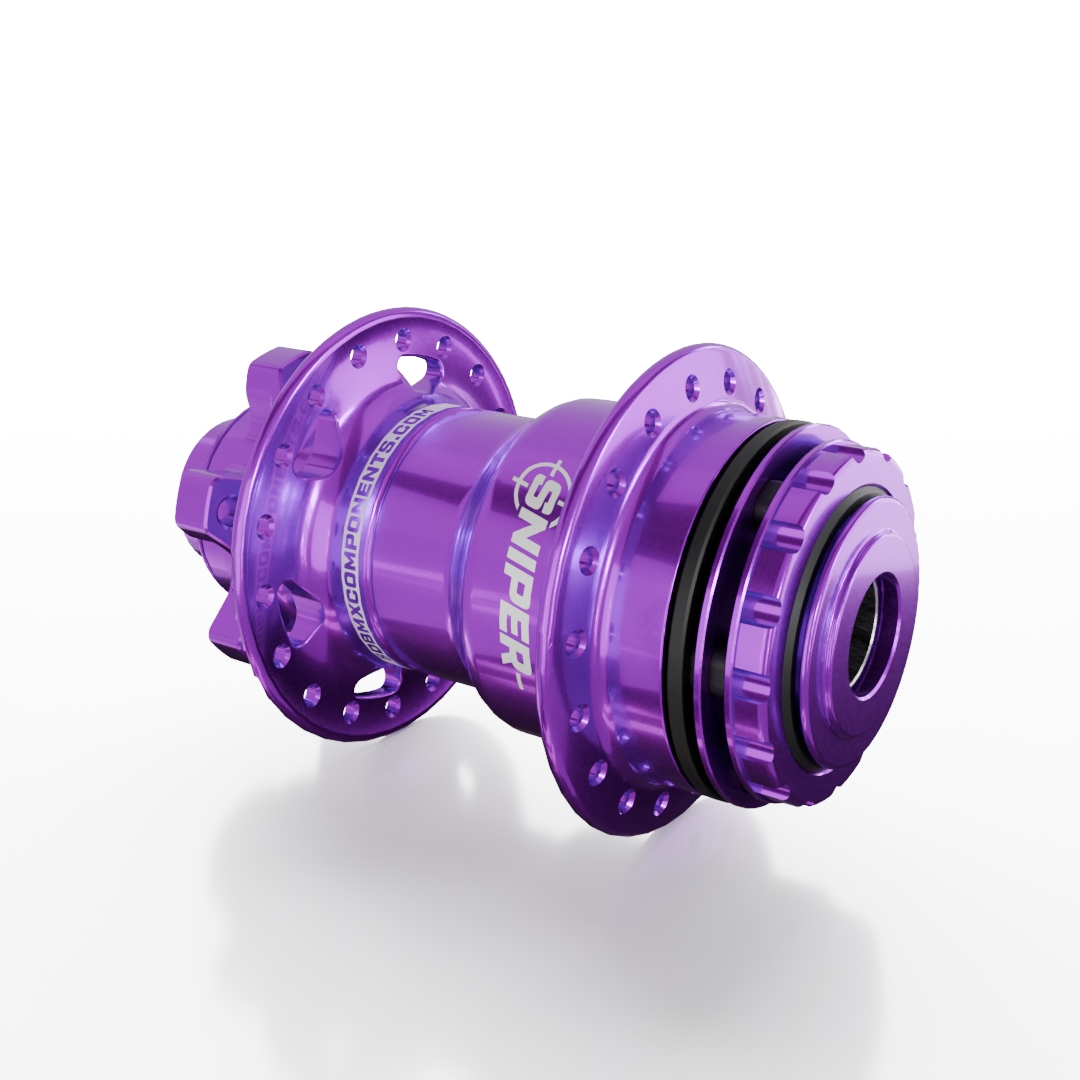

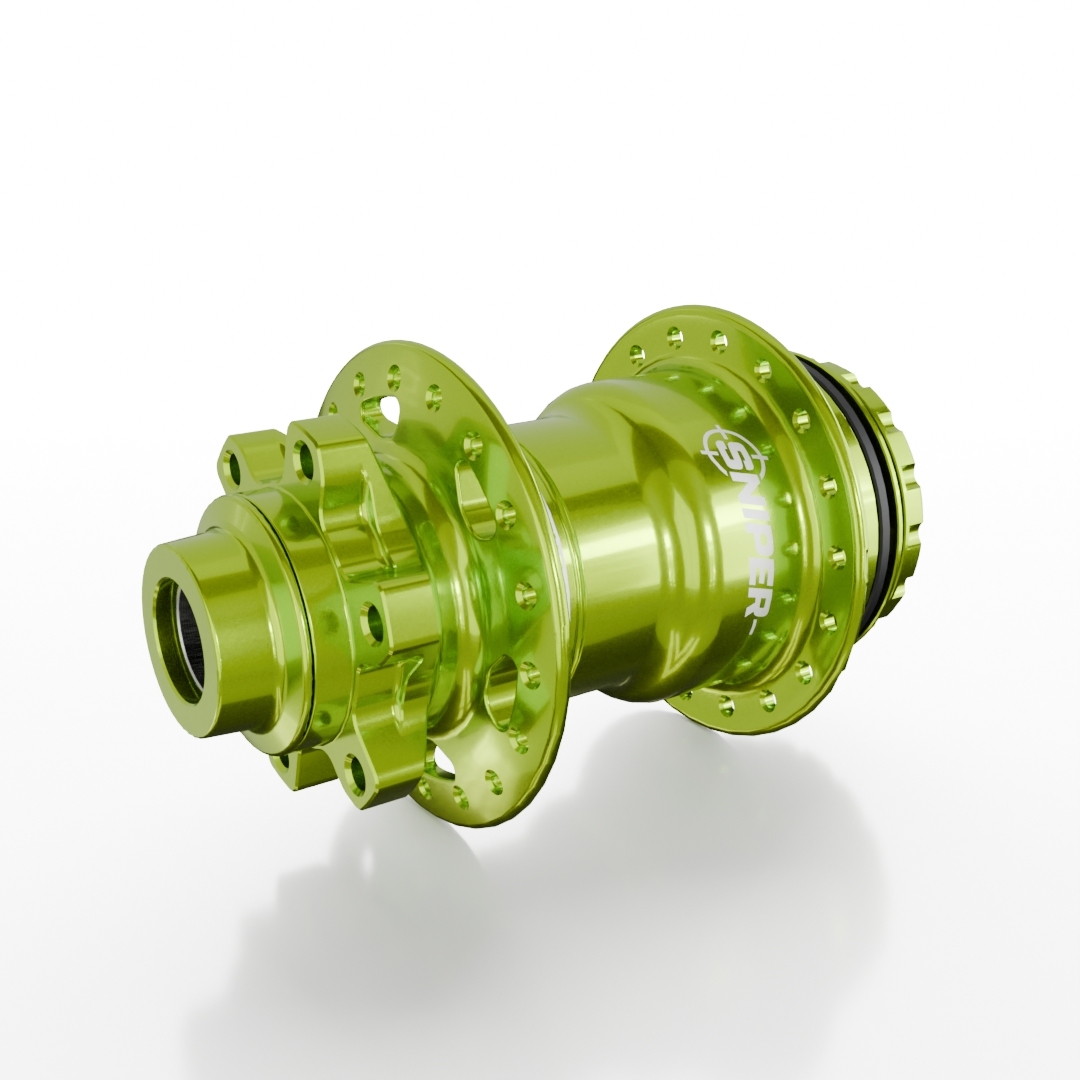

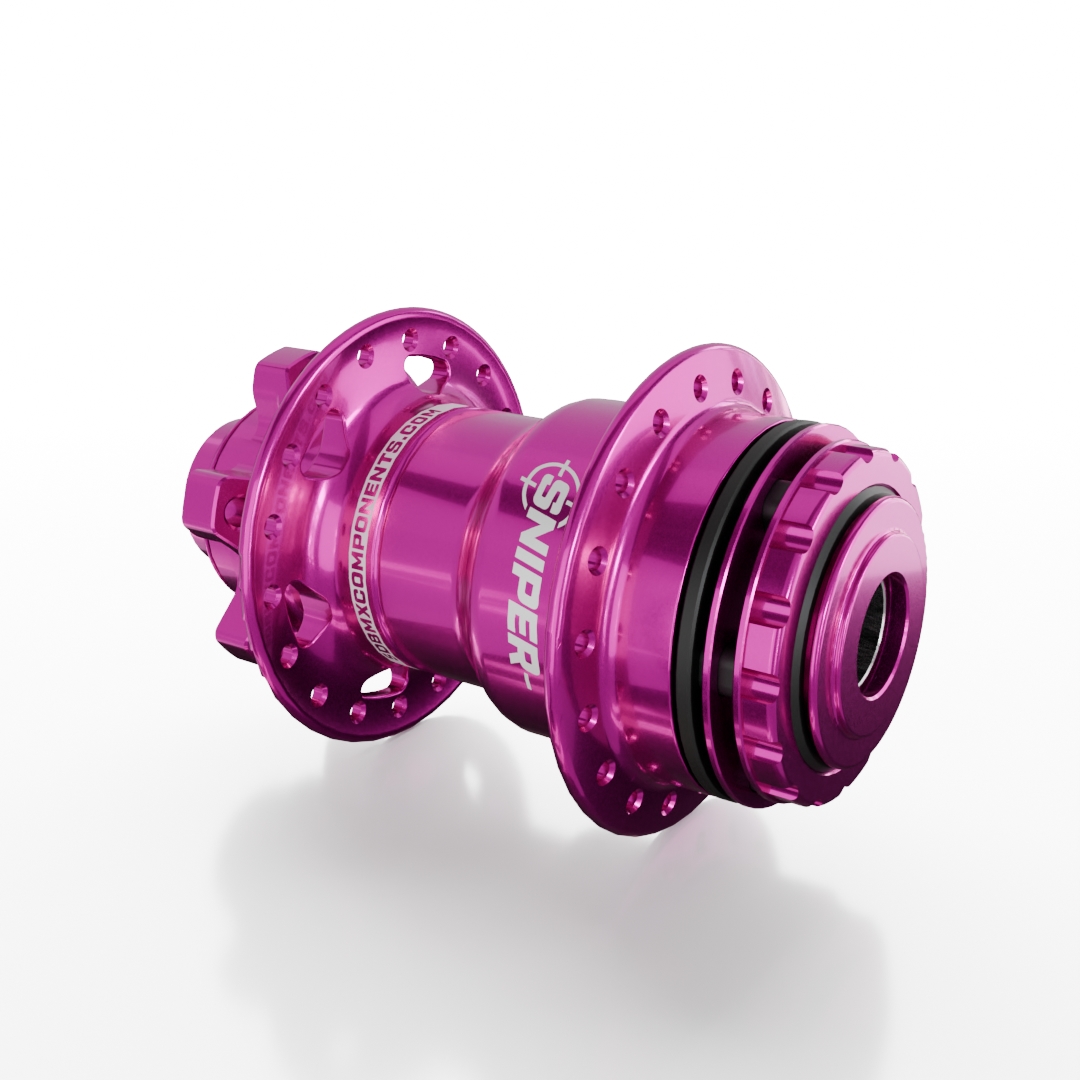

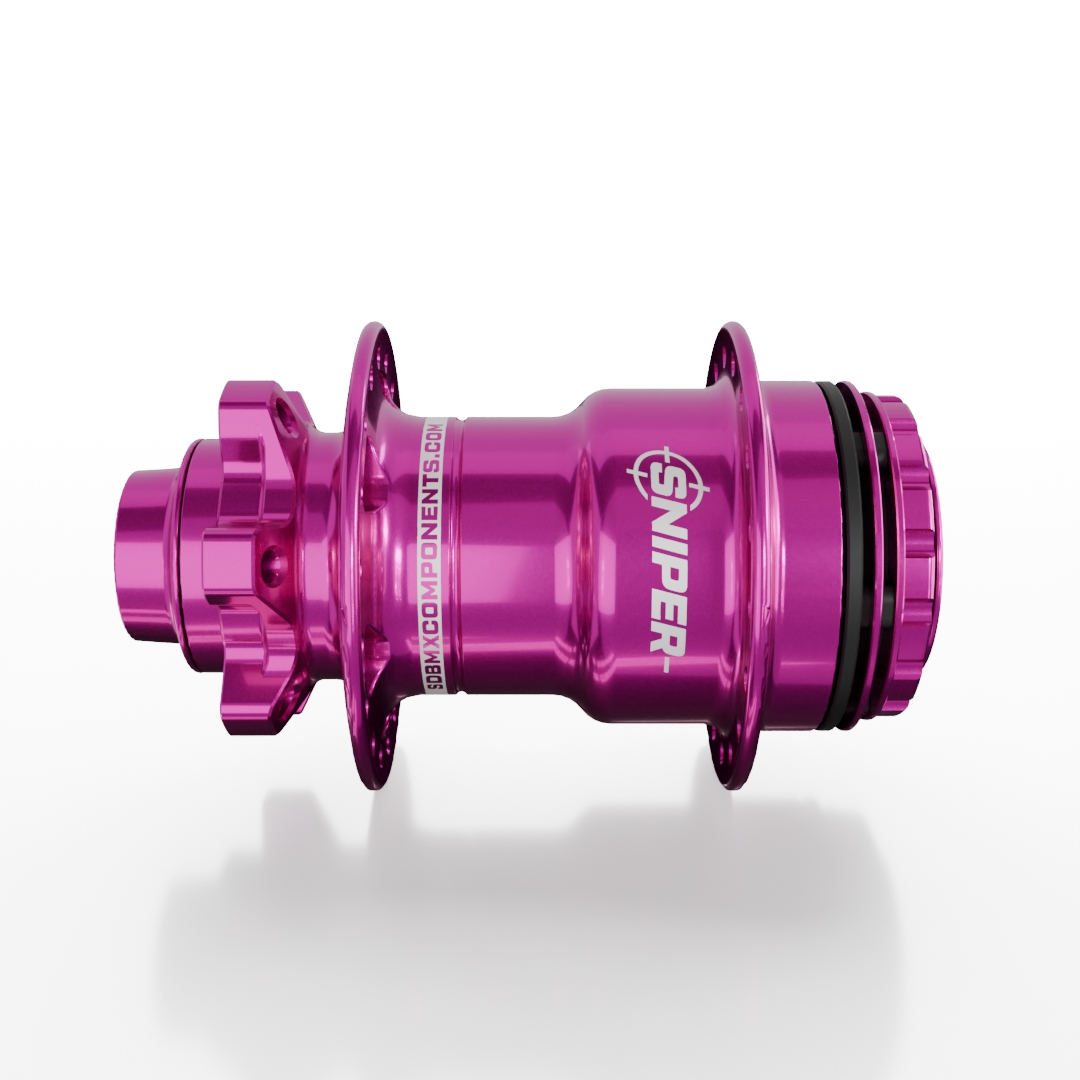

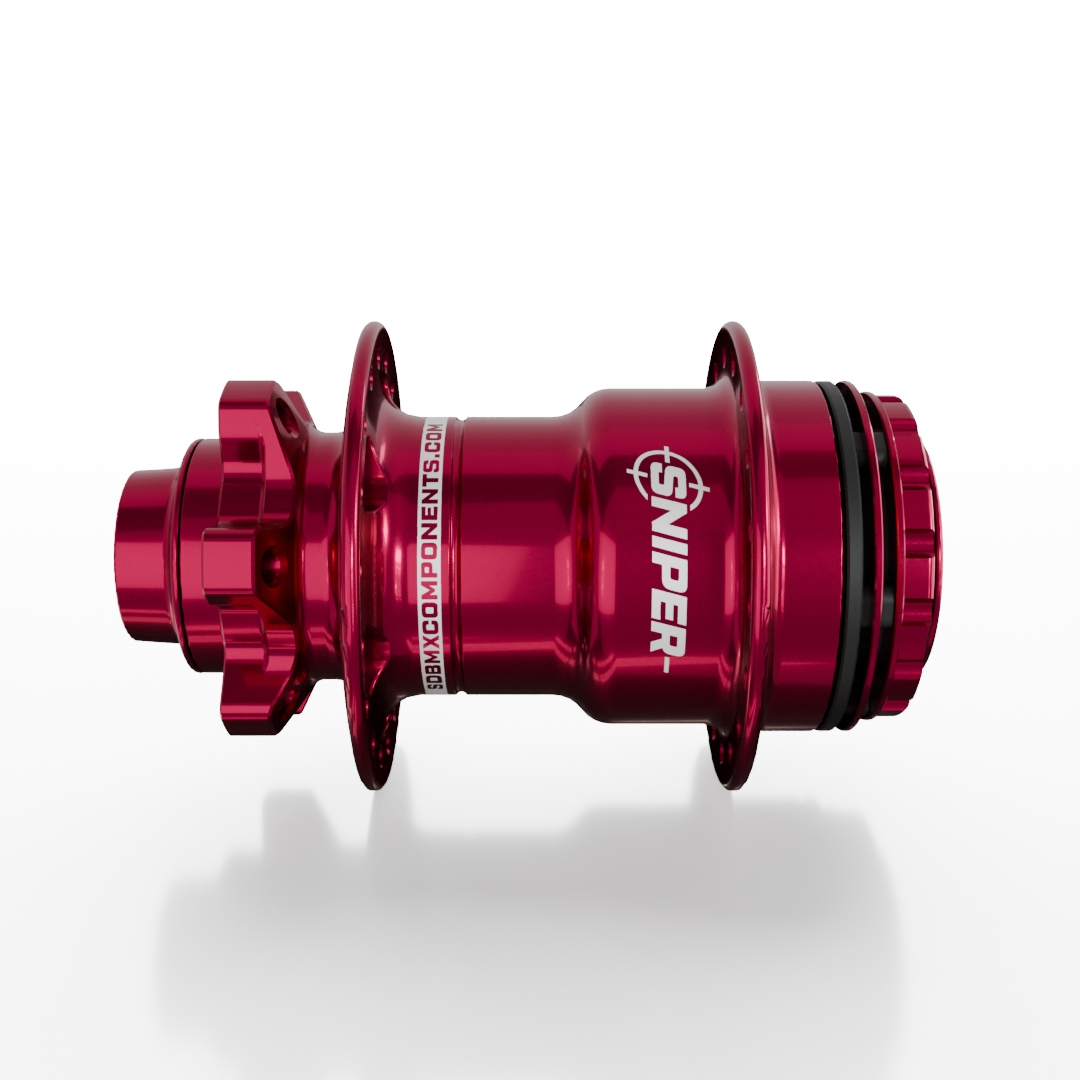

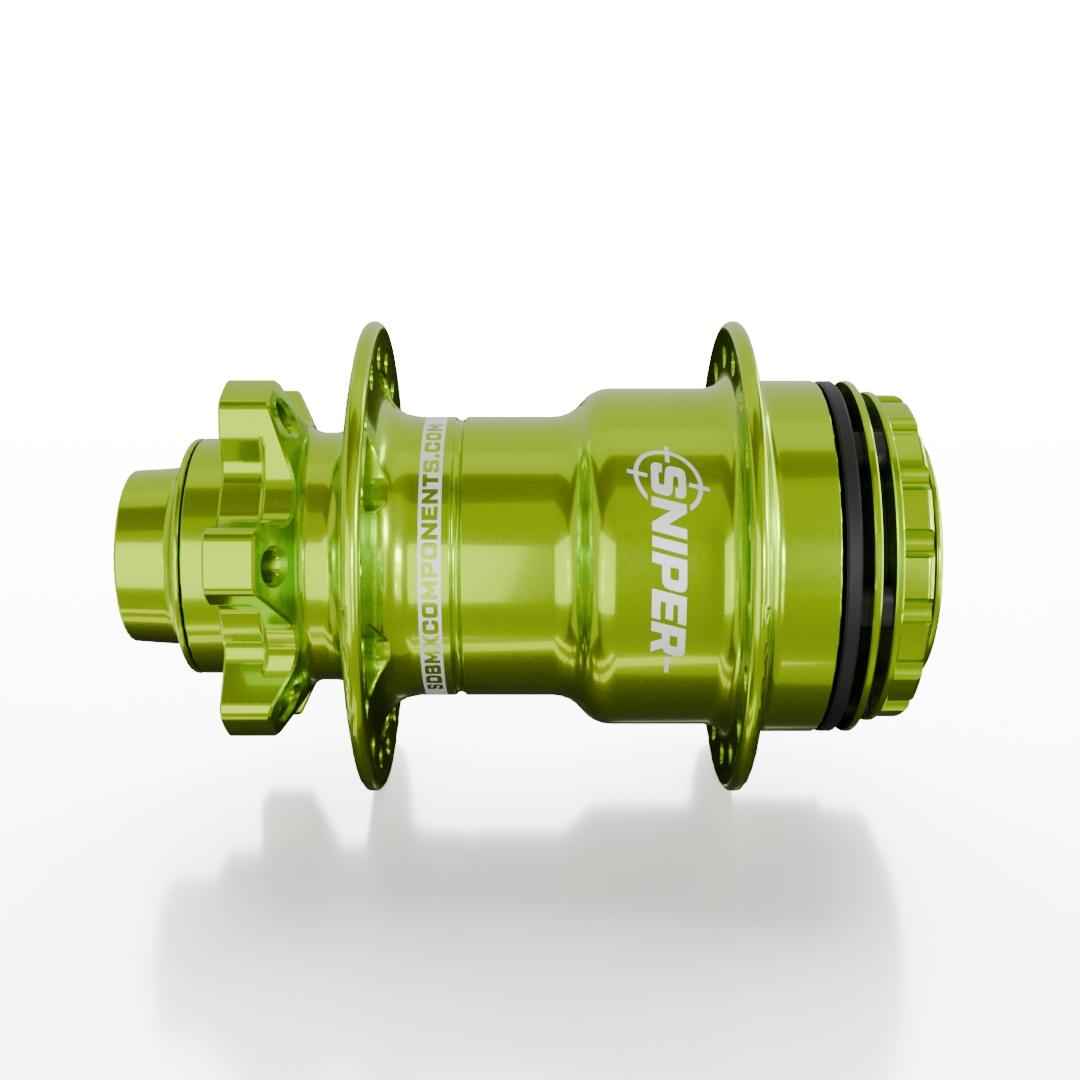

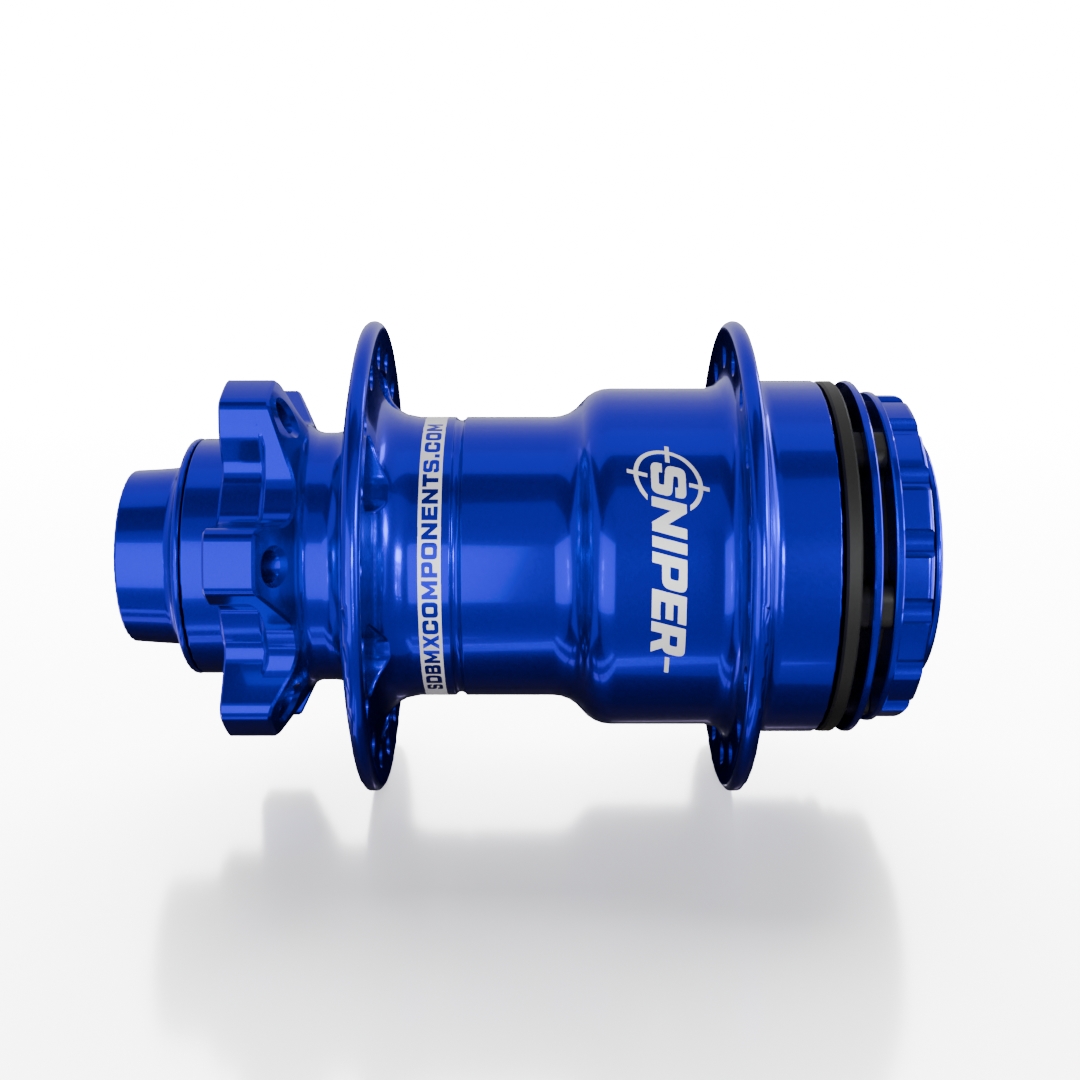

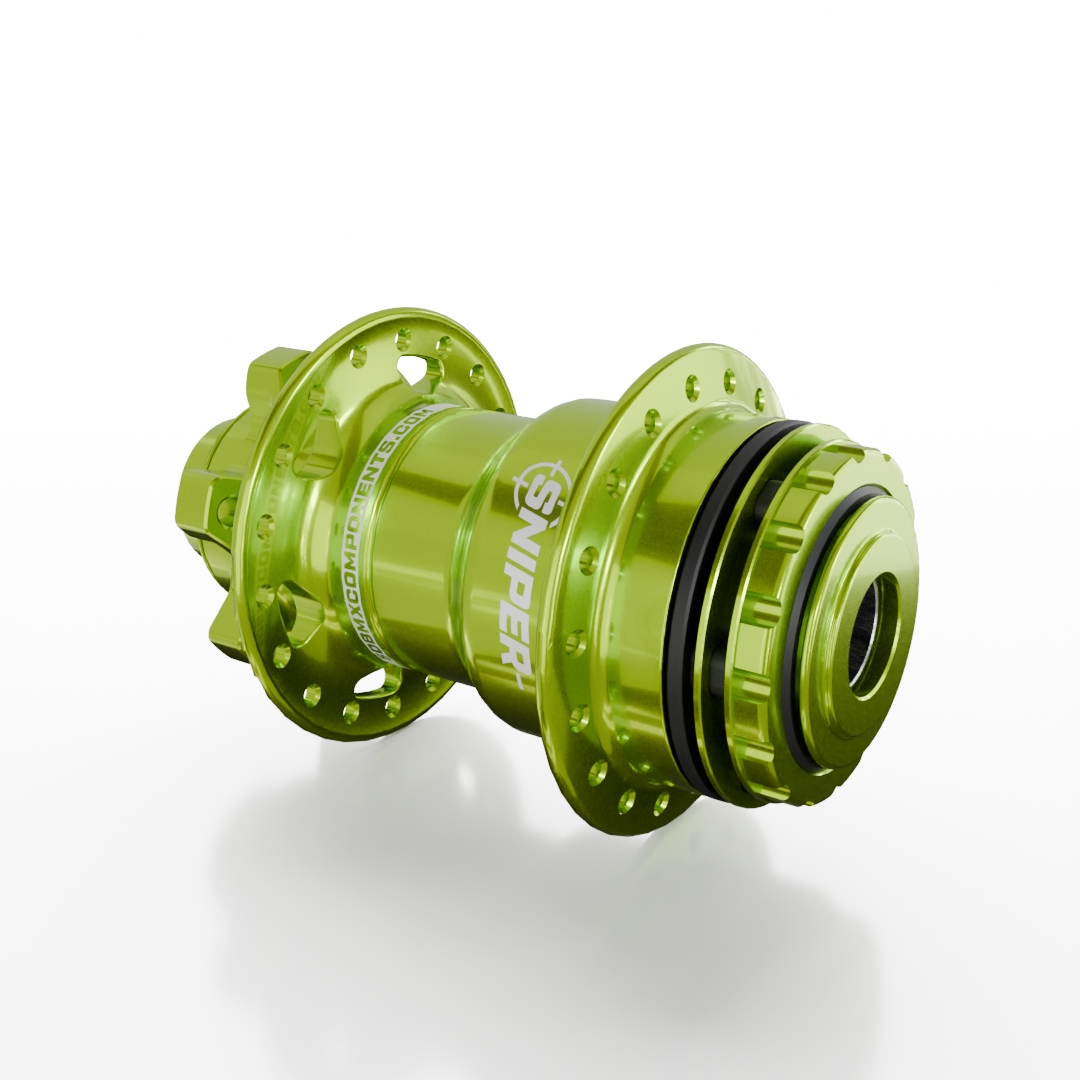

SD-X Sniper Evo Pro Rear Hub
The SD-X Sniper Evo Pro Rear Hub is engineered for riders who accept no limits. This full-engagement rear hub delivers uncompromising performance, durability, and precision, making it ideal for elite BMX racers.
The advanced direct engagement system ensures immediate response to every pedal stroke, silent operation, and zero drag during freewheeling.
The hub is supplied as a 15 mm version as standard and can be converted to a 10 mm configuration using the Evo Rear Hub Conversion Kit. Please note that bolt caps and titanium bolts must be ordered separately.
Features
– Supplied as standard in 15 mm configuration
– Convertible to 10 mm using a conversion kit
– ISO-6 disc mount
– Available in 36-hole only
– Suitable for all racers
– High-quality SKF ABEC-5 bearings
– Hub shell and internals made from premium 7075 aluminum

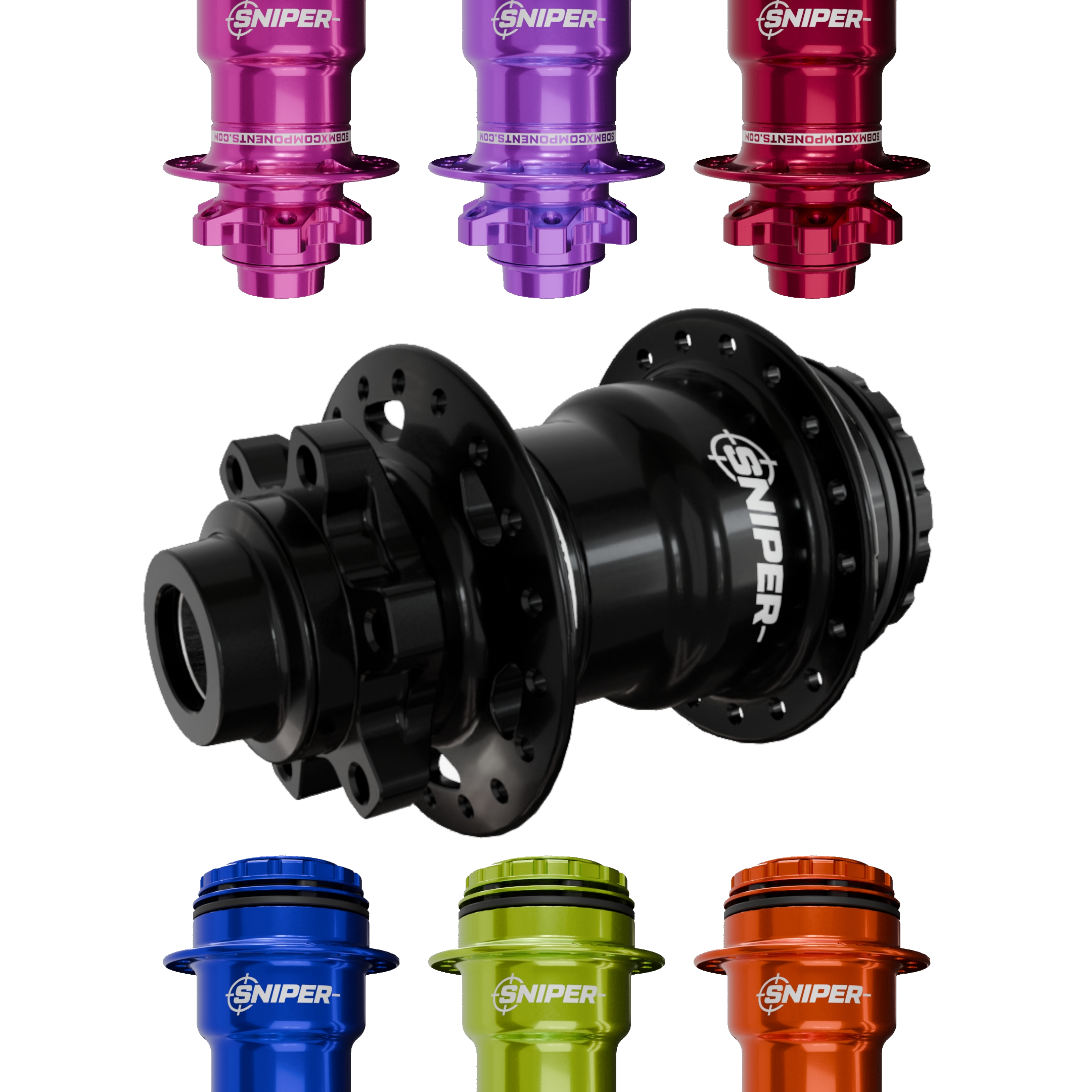

– Available in a wide color range
– Hub supplied without EVO cog (must be ordered separately)
– Hub supplied without 15 mm axle
Technical Specifications
– Weight (36-hole): 431 g
– Wheel bearings: 2× 6903
– Clutch bearings: 2× Sniper Pro
– Driver outer bearing: 6806
– Driver inner bearing: 6705
A= Total length: 110mm
B= Distance flange to outside non-drive side: 32mm
C= Distance flange to outside drive side: 25mm
D= Flange diameter non-drive side: 56mm
E= Flange diameter drive side: 56mm
*Pictures are for reference only
